How can I locate the Pioneer model or serial number for my system?Updated 8 hours ago

Understand how to locate the model and serial numbers for your Pioneer system.

Model Numbers

Indoor Units

The model number for the indoor unit can almost always be found on the gray colored nameplate or name badge. The location of the nameplate varies depending on the type of indoor unit.

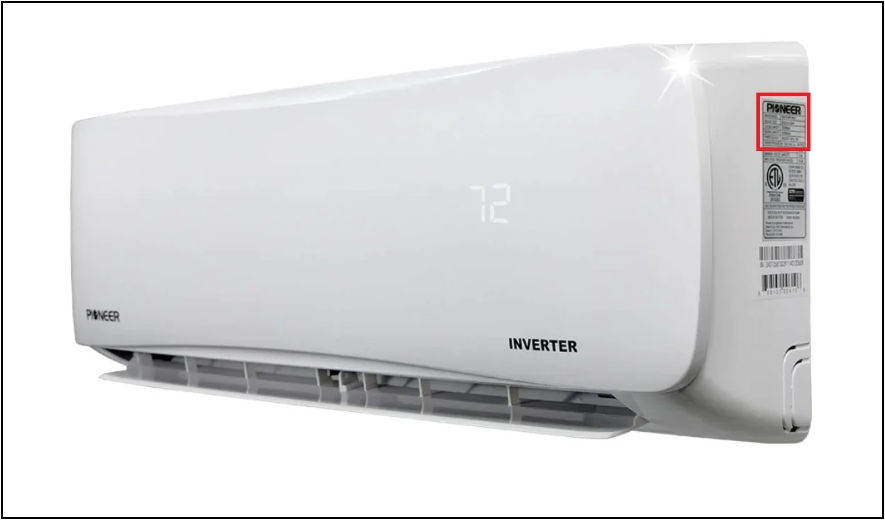

For wall-type units, the nameplate is physically fixed on the right-hand side of the unit.Check the right-side of your wall-type indoor unit for the nameplate and model number

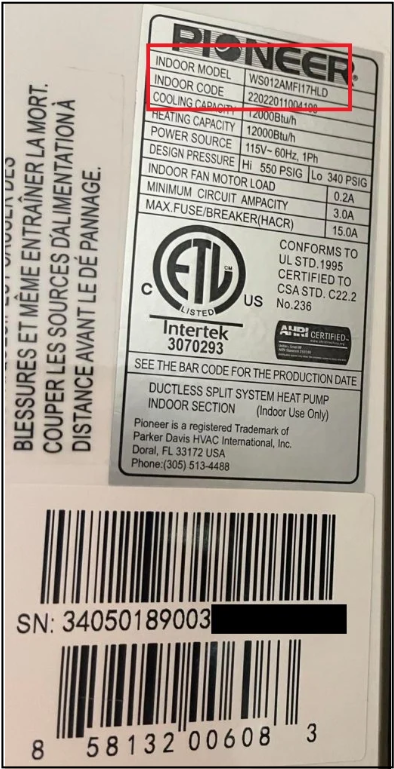

An example of a Pioneer indoor unit model number

Outdoor Units

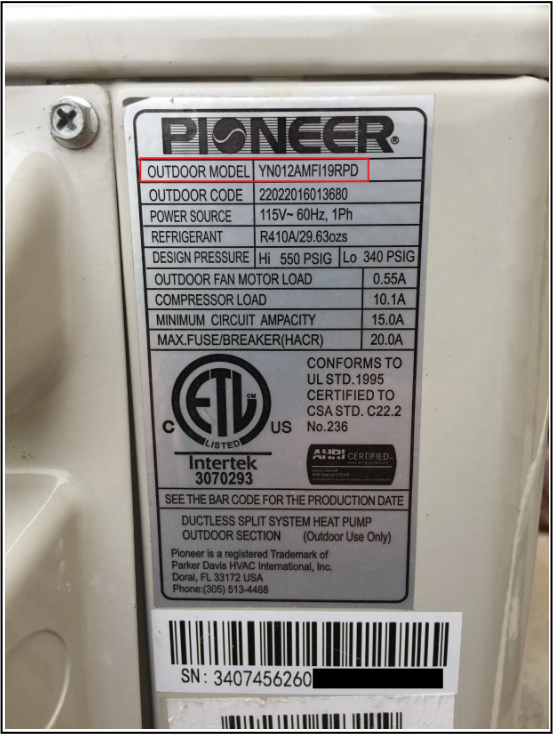

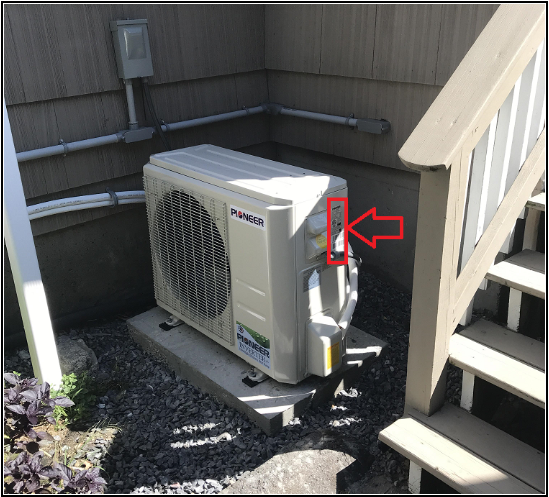

The model number for the outdoor unit can almost always be found on the gray colored nameplate. The nameplate is physically fixed on the right-hand side of the unit.Check your outdoor unit's nameplate for the model number

An example of a Pioneer outdoor unit model number

Serial Numbers

Serial numbers for Pioneer systems are generally found on white barcode stickers.An example of a barcode with a serial number

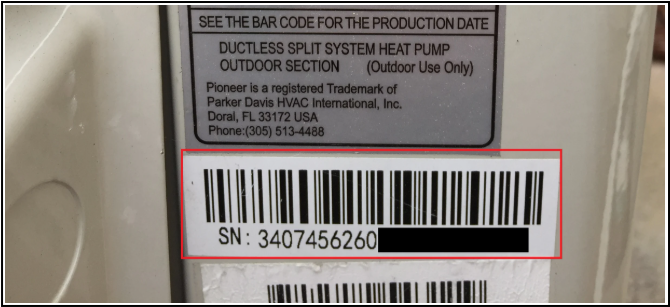

The indoor and outdoor units have different serial numbers. The serial numbers for both units can be found under the nameplate.Pioneer outdoor unit serial number

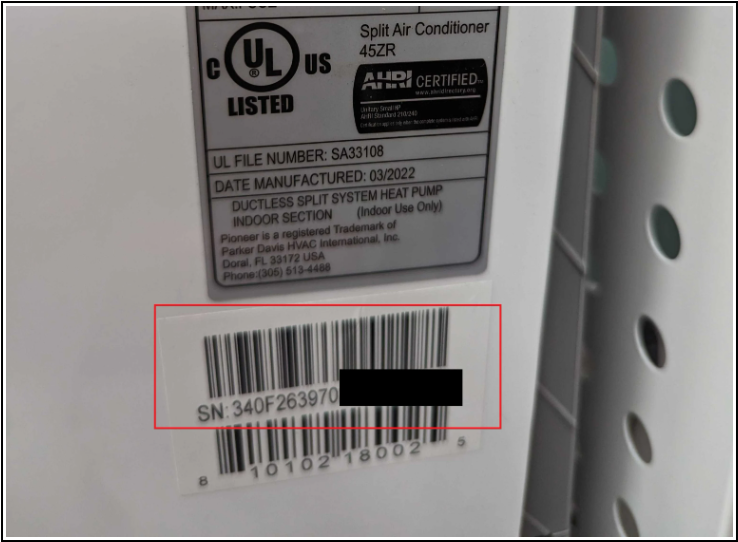

Pioneer indoor unit serial number

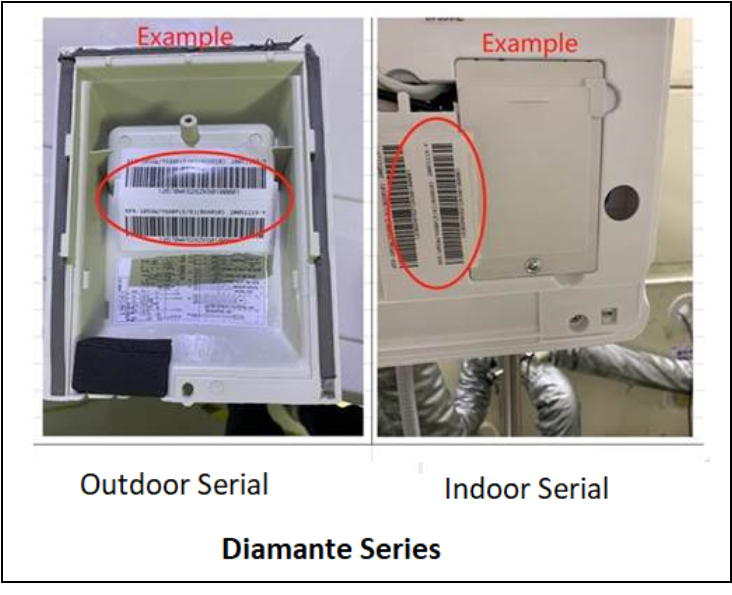

Diamante Series Systems: The serial number for the indoor units might be in a different location. Some units display the serial number barcode sticker behind the front of the electronic control box cover, providing additional protection from the elements.
