Diagnosing and Preventing Crossed Wiring in Multi-Zone SystemsUpdated a minute ago
Overview:
A very common and deceptively simple installation mistake in multi-zone mini split systems is crossed wiring between indoor units and the outdoor unit. This occurs when the communication wiring (electrical terminal block connections) and refrigerant piping for two zones are mismatched. For example, Zone A’s refrigerant pipes are correctly connected, but its communication wiring is accidentally connected to Zone B's terminals, and vice versa.

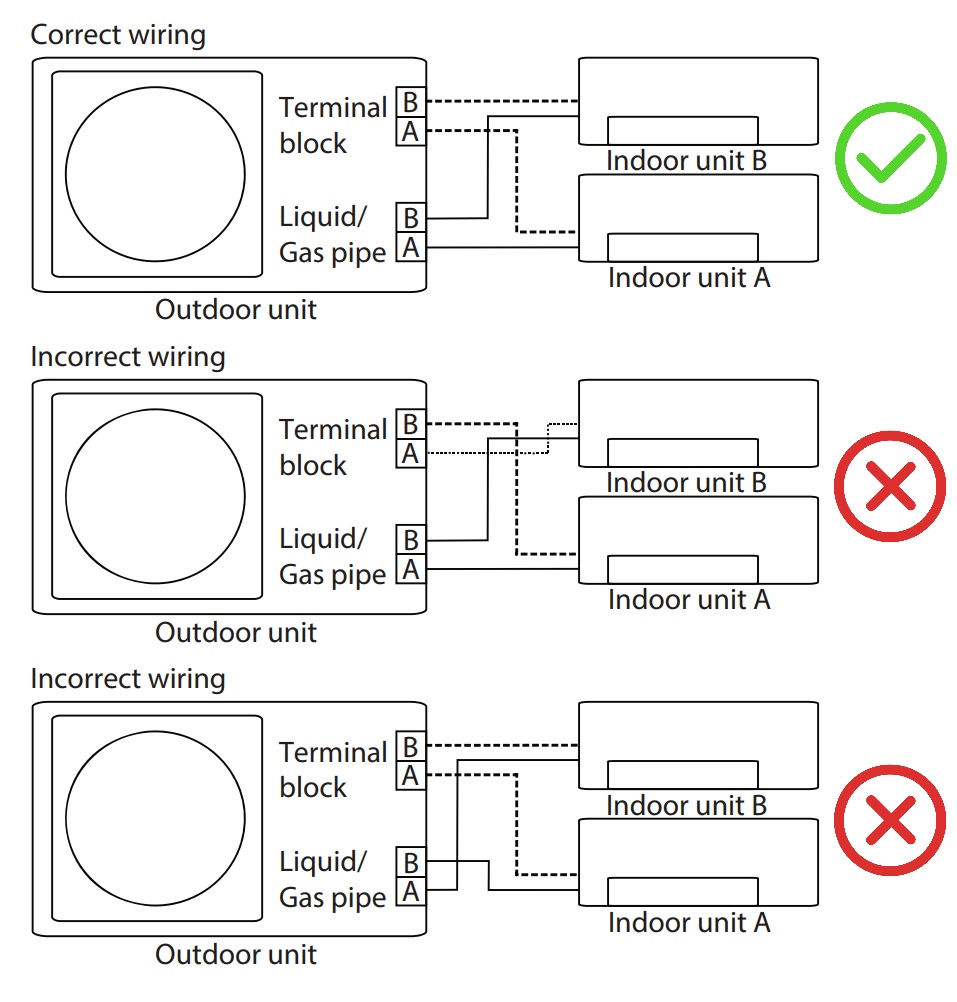

Correct Versus Incorrect Wiring
Why This Mistake Is Easy to Make:
At a glance, everything may seem properly connected: indoor units power on, and refrigerant lines are physically attached. However, since communication wiring and refrigerant lines can be routed independently, it's easy to mistakenly mix the two without immediate consequences. The system may run, but with very subtle and confusing malfunctions.
Symptoms of Crossed Wiring:
One zone (typically the one with the incorrect wiring but correct piping) is cooling aggressively and does not seem to respond properly to its own remote.
Other zones that are turned off may become cold or even freeze up, especially in cooling mode.
The system may exhibit erratic behavior or poor performance, even though it appears to be running.
How to Test for Crossed Wiring:
Single-Zone Isolation Test:
Turn off all indoor units except for one.
Run that single zone in cooling mode for 15–20 minutes.
Inspect the other indoor units: if they start to get cold or exhibit condensation/frosting despite being turned off, this indicates refrigerant flow to the wrong evaporator - a classic sign of crossed wiring.
Power Disconnect Test:
At the outdoor unit, disconnect the communication wiring for one zone (e.g., Zone A).
Confirm that the intended indoor unit (Zone A) powers off or stops responding.
If a different indoor unit (Zone B) goes offline instead, then the wiring is crossed.
Correct Wiring Practice:
Always match the terminal block connections (A, B, etc.) on the outdoor unit with the corresponding liquid/gas pipe lines going to the correct indoor unit.
Double-check the indoor unit's terminal label and compare it against both refrigerant piping and wiring before powering up.
Label each wire pair and refrigerant pipe run clearly during installation to avoid confusion.
Refer to the image above:
✅ The top diagram shows correct matching of both refrigerant lines and communication wiring.
❌ The bottom two diagrams illustrate common incorrect wiring scenarios where the communication and pipe connections are mismatched.
Conclusion:
Crossed wiring is an easy mistake with elusive consequences, often going unnoticed until strange cooling behavior or freezing issues appear. Taking a few minutes to verify matching between wiring and piping can prevent unnecessary service calls and customer dissatisfaction.
If you suspect crossed wiring in your installation, use the above tests or consult with our technical support team for guidance.
