Connect WYS-20 and WYS-22 systems with the NetHome Plus AppUpdated 5 days ago

Introduction

Connect your WYS-20 or WYS-22 system with the NetHome Plus app via your home Wi-Fi to conveniently access programmable functions. Setting schedules and remote operations are available, providing you with more control over your unit regardless of your location.

Apple (iOS App Store)

Click this link to download the NetHome Plus app.

Android (Google Play Store)

Click this link to download the NetHome Plus app.

Prerequisites

Recommended parts to prepare:

• A Wireless Internet Remote Programming and Access Dongle is required. Click this link to purchase the USB accessory.
• Ensure you're connected to a 2.4 GHz internet Wi-Fi with no active VPNs.

Steps

Follow these steps:

1. Download the app from the app store.
2. Enter the setup phase in the app. The app will ask you to reset the system.
3. Install the USB accessory. The USB device connects to the bottom
4. Turn Off the unit using the remote control.
5. Turn Off the circuit breaker powering the outside unit for at least 10 seconds.
6. Turn the circuit breaker back On.
7. Turn the unit back On using the remote control.
8. Press the "Display" button on the remote control 6 times consecutively within 6 seconds. Note: If your remote includes "RG10A4" on the back, press the "Set" button until the top-right corner displays the Wi-Fi symbol. (See Figures 1-3 below.)
9. The indoor unit will show "AP" or "CF" on the LED display.

Result: The unit is ready to pair. Resetting the app is not required. You can repeat the steps for any other units.

Figures

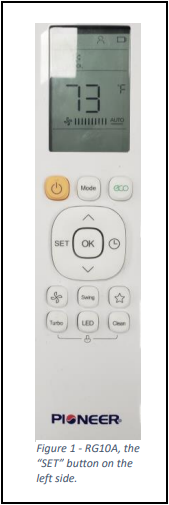

Figure 1.

Figure 2.

Figure 3.
