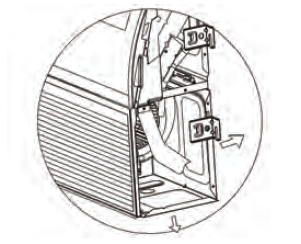

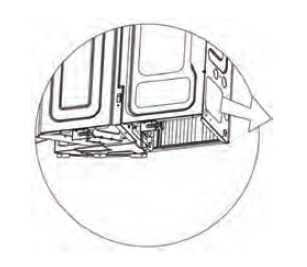

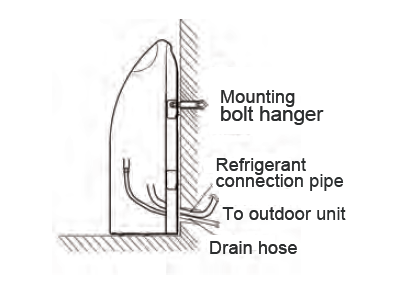

<h2 id="isPasted">Introduction</h2>This article explains how to prepare the refrigerant piping of the indoor unit for <a href="https://www.pioneerminisplit.com/collections/quantum-ultra-universal-flex-series" target="_blank" rel="noopener noreferrer">Quantum Ultra Floor-Ceiling Flex (UYT-24) systems</a>.<h2 id="configuration-options">Configuration Options</h2>The piping &quot;pigtails&quot; that are pre-attached to the indoor unit can be run in two different ways. Decide which type of configuration is most suitable before continuing.&#xA0;Configuration Option #1<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026012117-8730c8be-1e1b-4a87-88f1-e3b426984148-uyt24_refrigerant_piping_config_1.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered">Configuration Option #2<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026012117-b5c60264-b29b-420f-9d0a-f4ec91a81187-uyt24_refrigerant_piping_config_2.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered">Confirm proper wall slope (at least 1/4 inch per foot) to ensure successful condensate drainage.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026012117-1c263cbb-0035-4131-9ca7-d56023705967-uyt24_refrigerant_piping_drain_hose.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered">
