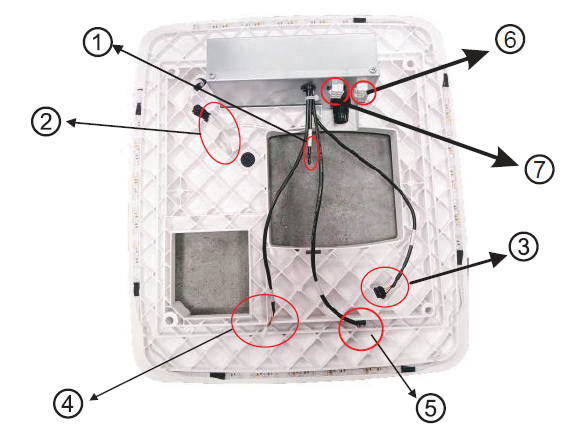

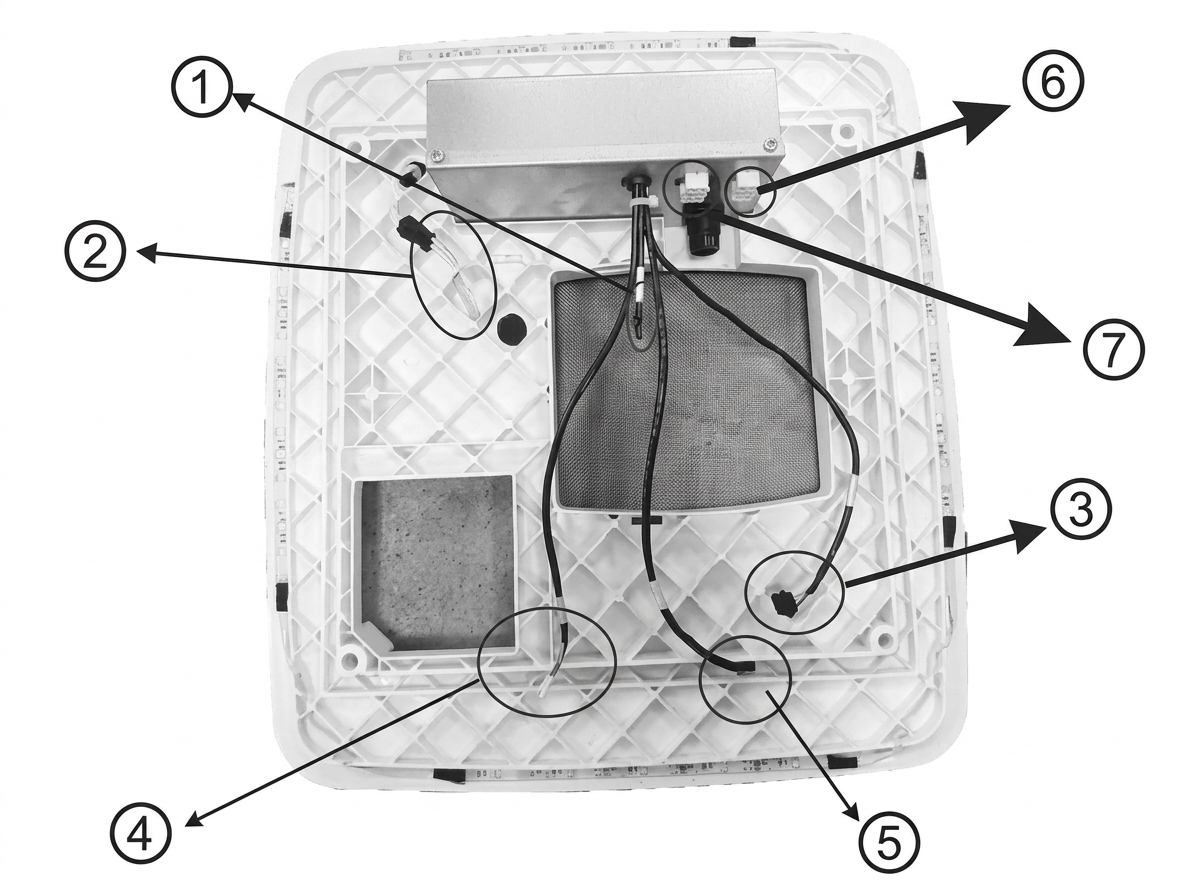

<h2 id="introduction"><u>Introduction</u></h2><p>This article explains how to setup the system connections for&#xA0;<a href="https://www.pioneerminisplit.com/collections/recreational-rv-systems/products/pioneer-13-500-btu-full-inverter-rooftop-rv-air-conditioner-heat-pump-115v" target="_blank" rel="noopener noreferrer" id="isPasted">Full Inverter Rooftop RV Air Conditioner Heat Pumps</a><a href="https://www.pioneerminisplit.com/collections/recreational-rv-systems/products/pioneer-13-500-btu-full-inverter-rooftop-rv-air-conditioner-heat-pump-115v" target="_blank" rel="noopener noreferrer"></a>.&#xA0;</p><h2 id="steps"><u>Steps</u></h2><ol><li>Place the connected wires back into the maintenance port of the control box.&#xA0;</li><li>Reattach the maintenance plate.&#xA0;</li><li>Insert the outdoor unit&apos;s plug-in wire harness, which was pulled out from the return air outlet of the air conditioner, into the corresponding six-core terminal plug of the control box.&#xA0;</li><li>Insert the three-core plug from the return air outlet into the corresponding three-core terminal plug.&#xA0;</li><li>Ensure that all plug-in terminals are properly seated.&#xA0;</li><li>Connect the remaining plug-in wires on the control box as follows:&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026020515-dd65b853-51f1-4b11-b493-ce0a637b21ac-rv_rooftop_plugin_wires.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"></li></ol><table style="width: 100%;"><tbody><tr><td style="width: 25.1445%; background-color: rgb(239, 239, 239); text-align: center;"><strong>No.</strong></td><td style="width: 74.8555%; background-color: rgb(239, 239, 239); text-align: center;"><strong>Description</strong></td></tr><tr><td style="width: 25.1445%; text-align: center;" class="fr-thick">1</td><td style="width: 74.8555%; text-align: center;" class="fr-thick">Indoor temperature sensor</td></tr><tr><td style="width: 25.1445%; text-align: center;" class="fr-thick">2</td><td style="width: 74.8555%; text-align: center;" class="fr-thick">LED strip wire</td></tr><tr><td style="width: 25.1445%; text-align: center;" class="fr-thick">3</td><td style="width: 74.8555%; text-align: center;" class="fr-thick">Connecting wire of the display panel</td></tr><tr><td style="width: 25.1445%; text-align: center;" class="fr-thick">4</td><td style="width: 74.8555%; text-align: center;" class="fr-thick">Communication line</td></tr><tr><td style="width: 25.1445%; text-align: center;" class="fr-thick">5</td><td style="width: 74.8555%; text-align: center;" class="fr-thick">Anti-freezing sensor</td></tr><tr><td style="width: 25.1445%; text-align: center;" class="fr-thick">6</td><td style="width: 74.8555%; text-align: center;" class="fr-thick">Wire harness of the electric heater</td></tr><tr><td style="width: 25.1445%; text-align: center;" class="fr-thick">7</td><td style="width: 74.8555%; text-align: center;" class="fr-thick">Power wire harness of the outdoor unit</td></tr></tbody></table><p><br></p>

This article explains how to setup the system connections for Full Inverter Rooftop RV Air Conditioner Heat Pumps.
