Mounting the Panel for Rooftop RV SystemsUpdated 4 days ago

Introduction

Learn how to mount the panel for the Full Inverter Rooftop RV Air Conditioner Heat Pump.

Steps

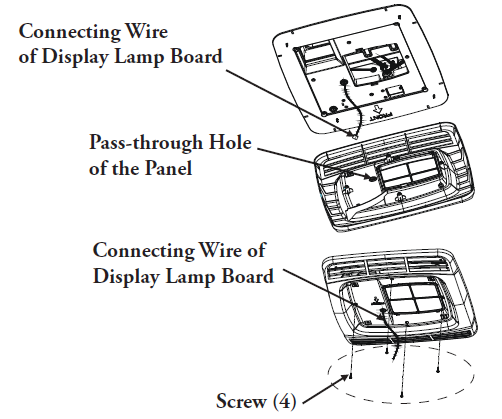

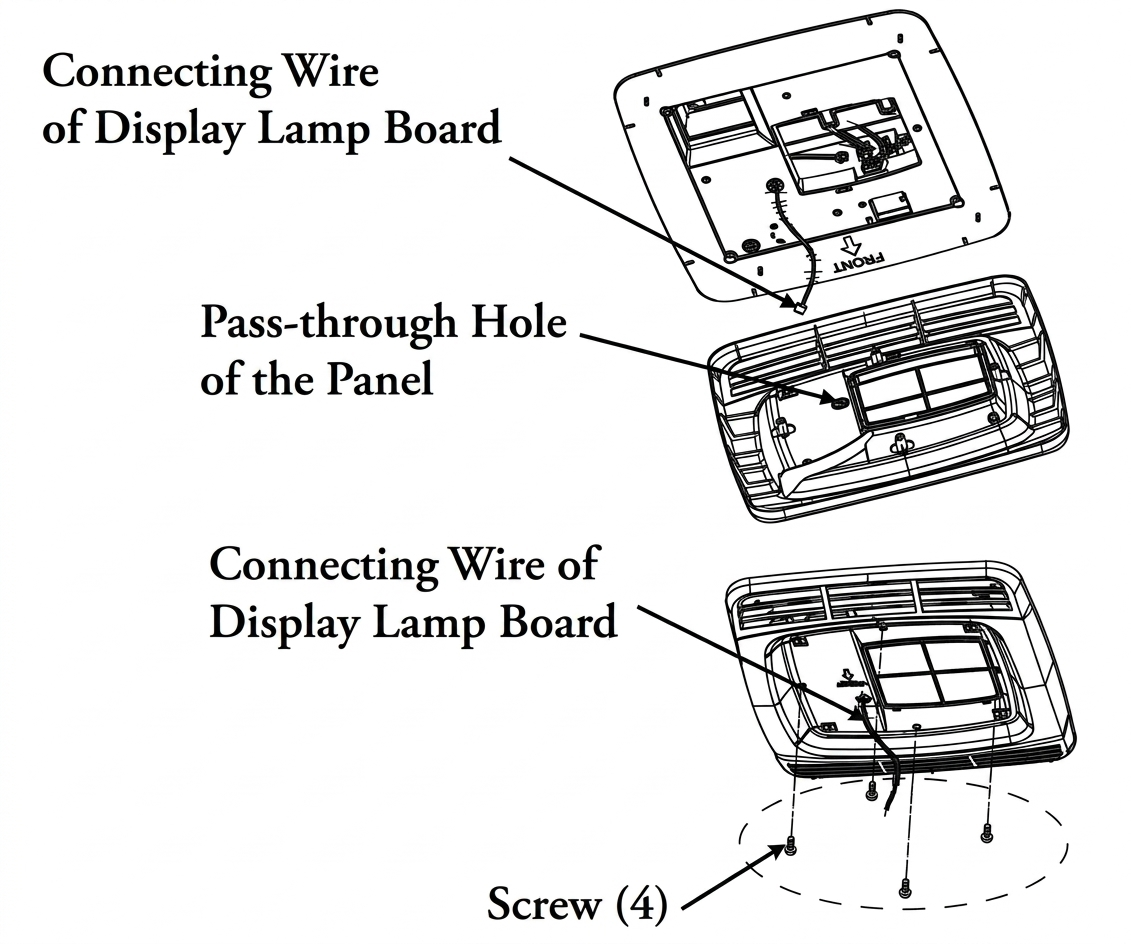

1. Remove the panel. Then, align the underlying component using the directional indicators.

2. Route the display panel cable from the control box through the hole in the panel.

3. Secure the panel to the fixing plate using four screws.

4. Remove the decorative panel.

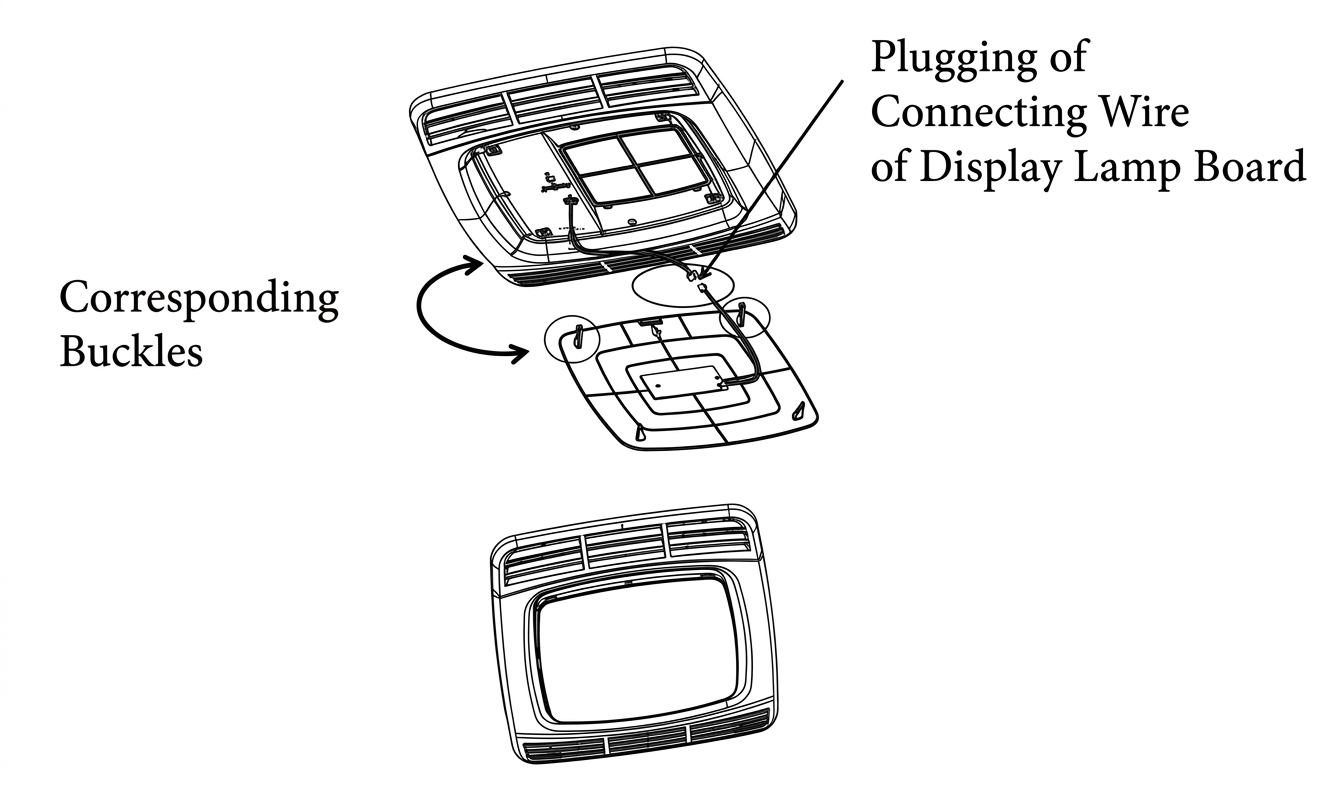

5. Connect the display board wire to the decorative panel wire, making sure the arrow points toward the front of the RV.

6. Install the lamp board onto the panel. When installing the decorative panel, first insert the two front buckles into the corresponding holes on the panel in the direction of the arrow. Then, snap the two rear buckles into the panel lock.
