Replace the Leak Detection Sensor for Vertex Ducted Central Split (DYC-18) SystemsUpdated 11 days ago

Introduction

This article explains how to replace the leak detection sensor for Vertex Ducted Central Split (DYC-18) systems.

General Specifications

Model: RGD-02TL11

Minimum Lifespan: 15 years.

Note: The leak detection sensor needs to be replaced with the same model. If in doubt, consult the manufacturer for assistance.

Steps

1. Remove the screws and front panel.
2. Disconnect the plug of the leak detection sensor wire from the circuit board.

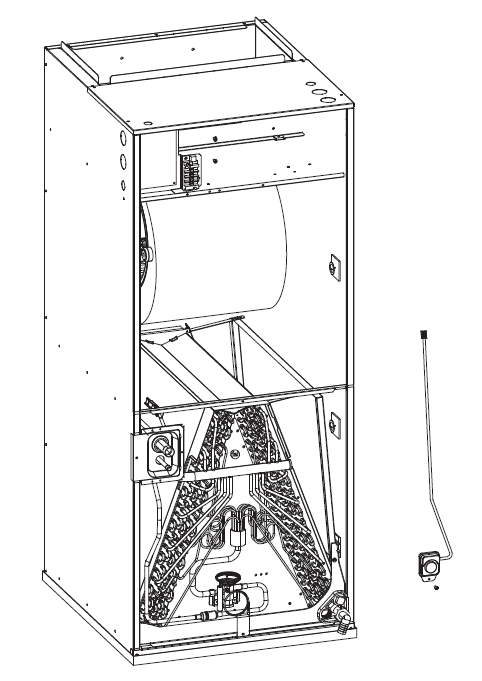

3. Remove the screws and pull out the leak detection sensor with the wire.
4. Insert the new leak detection sensor and screw it to the triangular plate.
5. Plug and tie the wires to the electronic control board in the same way as before.
6. Reinstall the access panels. Ensure that there is no outstanding gap.
