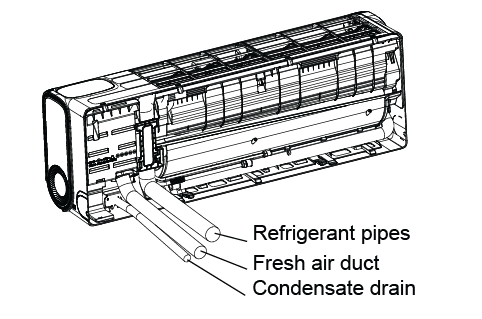

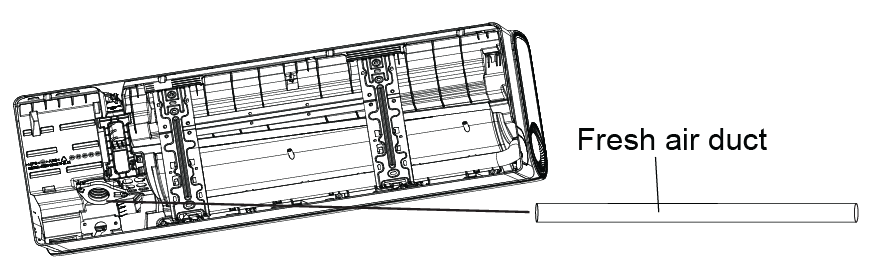

<h2 id="introduction"><u>Introduction</u></h2><p>This article explains how to connect the fresh air pipe for <a href="https://www.pioneerminisplit.com/collections/quantum-fresh-series-breathe-the-difference" target="_blank" rel="noopener noreferrer">Quantum Fresh High-Wall (WYT-FA) indoor units</a>. This is the sixth step in the installation process for Quantum Fresh High-Wall indoor units.&#xA0;</p><h2 id="connect-the-fresh-air-pipe"><u>Connect the Fresh Air Pipe</u></h2><p>Screw the fresh air duct onto the rear of the indoor unit.&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120218-d2ae2763-e730-44f2-a88c-e140c876aa01-wytfa_connect_fresh_air_pipe.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"></p><p>Route the fresh air duct together with the other components of the service bundle (refrigerant piping, signal wire, and drain tubing).&#xA0;<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025120218-615be1db-1dd6-4d34-86f7-38e28111ddab-wytfa_connect_fresh_air_pipe_bundle.png" style="width: 500px;" class="fr-fic fr-dib fr-bordered"></p>
