Conduct Drainage Tests for Ducted Ceiling Concealed SystemsUpdated an hour ago

Introduction

This article explains how to run and complete a drainage test for ducted ceiling concealed systems.

This test ensures the drainpipe properly directs condensate to a suitable location. The test differs depending on whether the electrical wiring is already finished.

This article applies to the following systems:

• Quantum Ultra Ducted Ceiling Concealed (RYB/RYT)

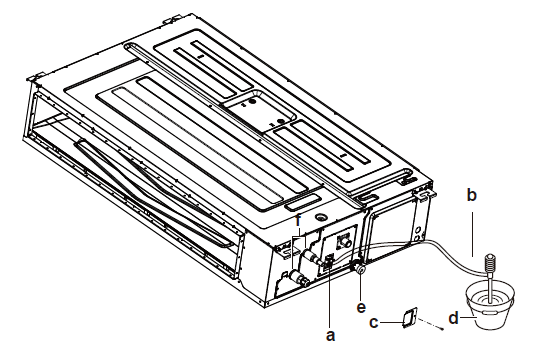

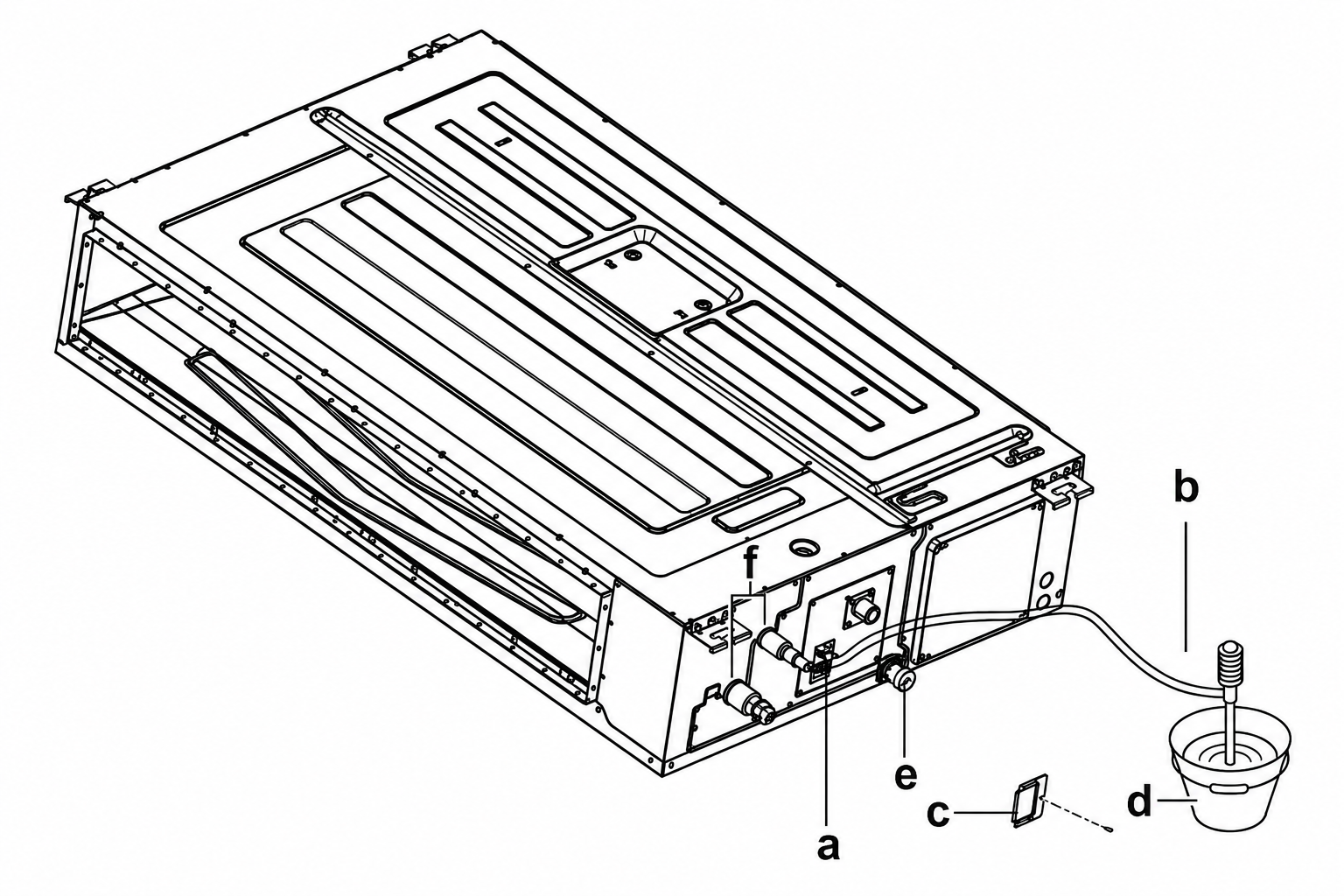

Drainage Test Diagram

• a: Water inlet
• b: Portable pump
• c: Water inlet cover
• d: Bucket (adding water through the water inlet)
• e: Drain outlet for maintenance
• f: Refrigerant pipes

Electrical Wiring is Not Finished Yet

1. Temporarily connect the electrical wiring.

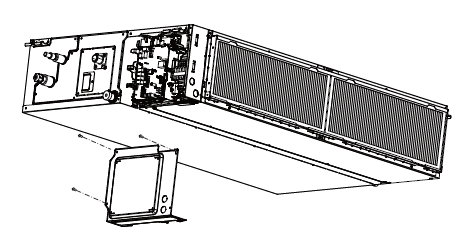

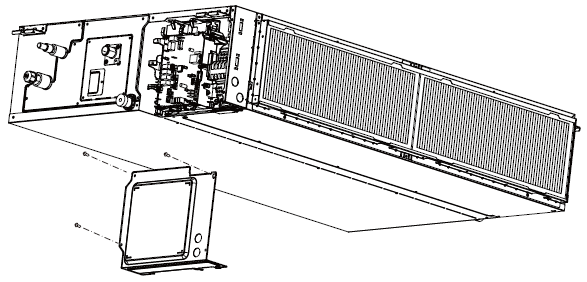

2. Remove the switch box cover.

3. Connect the single-phase power supply (50hz, 230V) to terminals 1 and 2 for proper power supply and earthing.

4. Reattach the switch box cover.

5. Turn on the power.

6. Start the cooling operation.

7. Gradually pour 1 liter of water through the air discharge outlet, then check for leaks.

8. Turn off the power.

9. Disconnect the electrical wiring.

10. Remove the control box cover.

11. Disconnect the power supply and earthing.

12. Reattach the control box cover.

Electrical Wiring is Finished

1. Start the cooling operation.

2. Gradually pour 1 liter of water through the air discharge outlet, then check for leaks.
