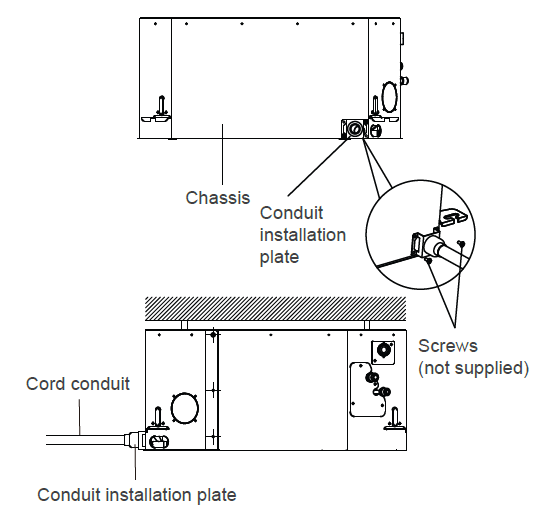

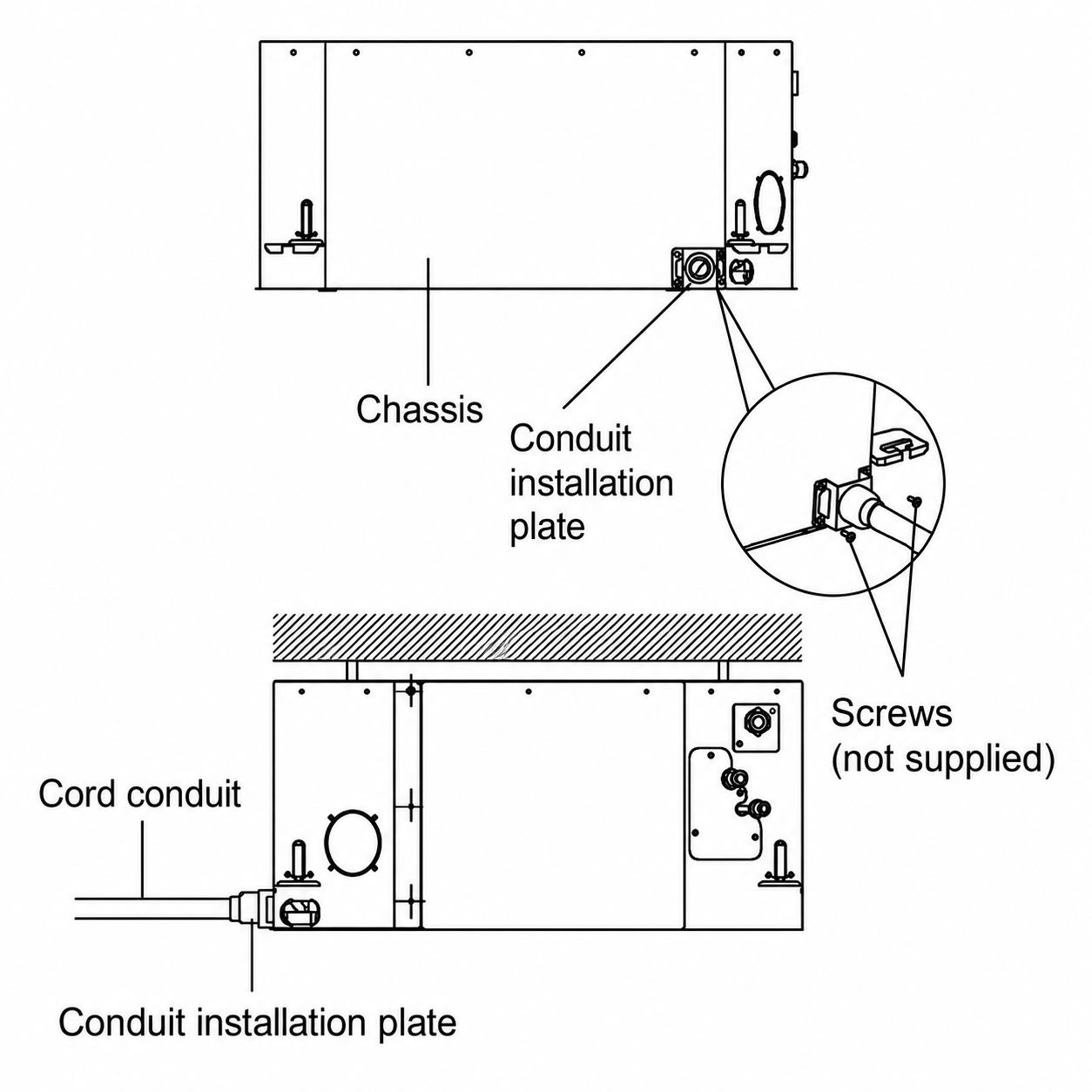

<h2 id="isPasted"><u>Introduction</u></h2><p>This article explains how to install the conduit installation plate for <a href="https://www.pioneerminisplit.com/collections/types?q=CYB-20" target="_blank" rel="noopener noreferrer">CYB-20 four-way ceiling cassette systems</a>.&#xA0;</p><h2 id="steps"><u>Steps</u></h2><p id="isPasted">1. &#xA0; &#xA0;Attach the sheath connection (not supplied) to the wire hole of the conduit installation plate.</p><p>2. &#xA0; &#xA0;Attach the conduit installation plate to the unit&apos;s chassis.<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026050713-3d5cab93-86a5-4a2b-9ff4-f16a11167f0f-cyb20_drainpipe_install_conduit_plate.png" style="width: 400px;" class="fr-fic fr-dib fr-bordered"></p>

This article explains how to install the conduit installation plate for CYB-20 four-way ceiling cassette systems.

Install the Conduit Installation Plate for CYB-20 Four-Way Ceiling Cassette Systems
