FD Error CodeUpdated 11 hours ago

Introduction

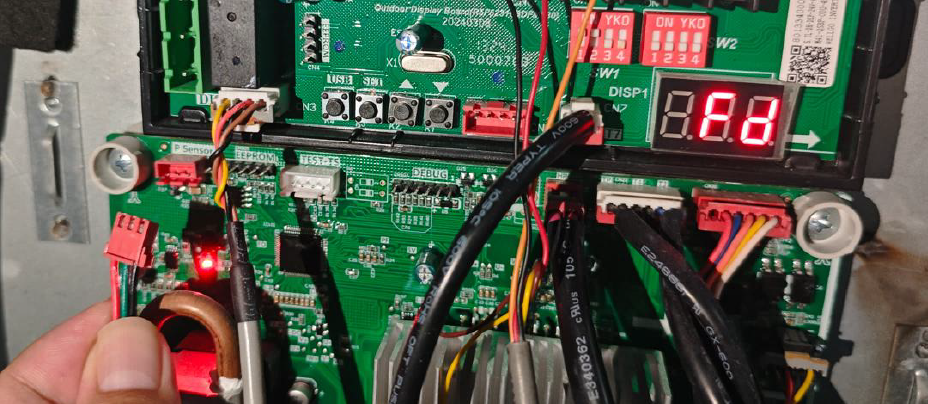

The FD error code indicates HLP pressure sensor failure. This article is for Vertex Ducted Central Split (DYC-18) systems.

Cause: The mainboard did not recognize the pressure sensor.

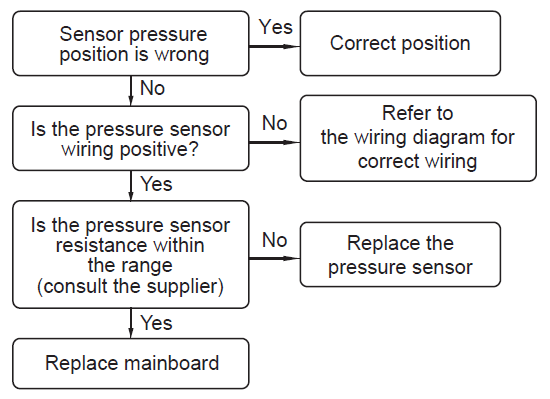

Troubleshooting Diagram

Troubleshooting Notes

  • Begin by checking if the pressure sensor is securely plugged in.

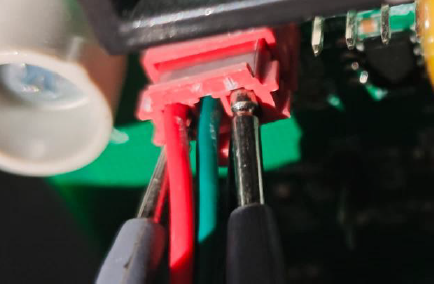

  • Measure whether there is a 5VDC voltage output (red and black wire) from the output port of the mainboard. If there is no voltage output, replace the mainboard.
  • If there is, replace the pressure sensor.
  • Replace the mainboard.
