Wire the CYB Ceiling Cassette panel to the indoor unit air handlerUpdated a day ago

This article explains how to wire the decorative panel of the CYB Ceiling Cassette system to the indoor unit air handler.

Wire the cassette panel to the indoor unit using the 3 wires hanging off of the panel.

• A 5-pin female connector for connecting a wired thermostat (optional).
• A 10-pin main receiver female connector that attaches to the main board of the indoor unit.

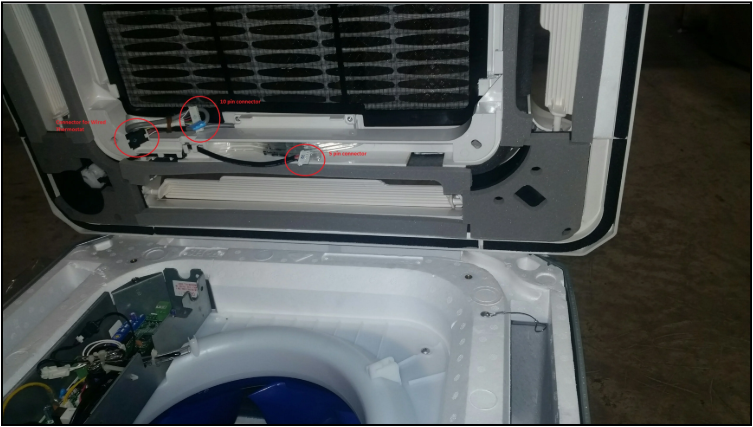

• A 5-pin swing louver female connector that attaches to the main board of the indoor unit.The 3 wires that come off of the decorative panel for the CYB Ceiling

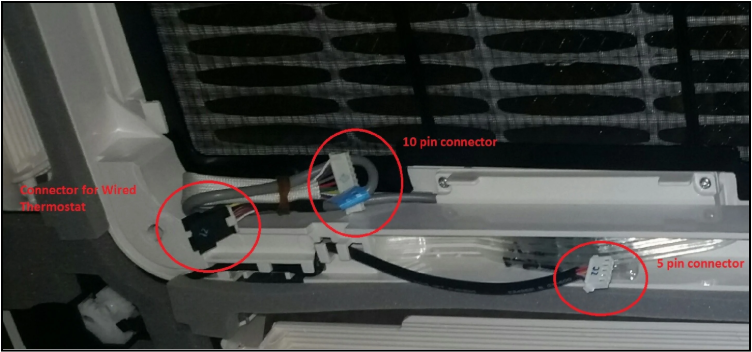

A closer view of the 3 wires

The first black head connector, which is optional, accepts wired thermostats, such as our KJR-12B model.

The second and third white head connectors attach to the indoor unit’s main board during installation. Connecting the second and third white head connectors is required.

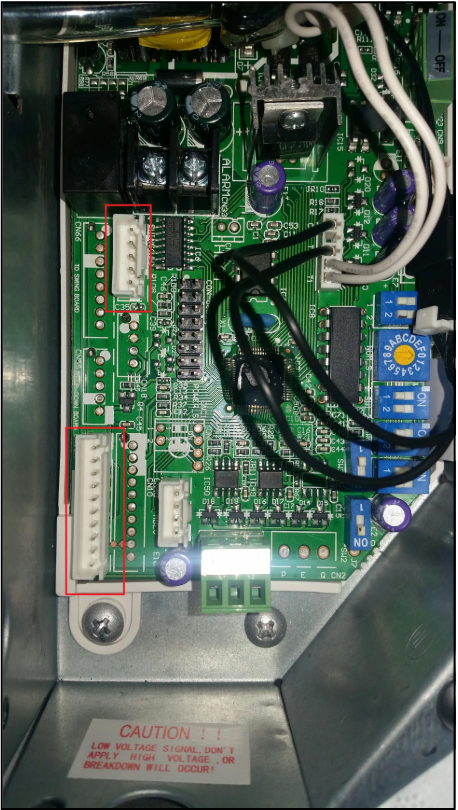

Note: A dummy connector may be pre-attached to the 5-pin area on the main board, which you can remove and discard.Connect the swing white 5-pin and main white 10-pin connectors to the areas marked in red above.
