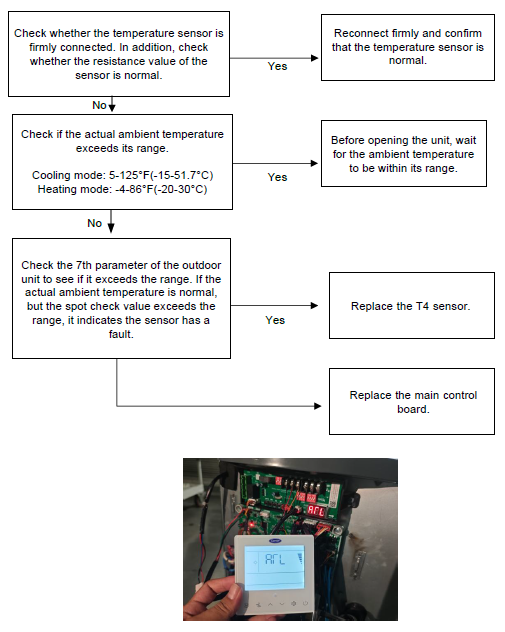

<h2 id="isPasted"><u>Introduction</u></h2><p>The &quot;ATL&quot; error code indicates over-temperature protection. This article is for <a href="https://www.pioneerminisplit.com/collections/vertex-ducted-central-split" target="_blank" rel="noopener noreferrer">Vertex Ducted Central Split (DYC-18) systems</a>.&#xA0;</p><p><strong>Cause:&#xA0;</strong>The outdoor sensor T4 detects the ambient temperature is exceeding its range.&#xA0;</p><h2 id="troubleshooting-diagram"><u>Troubleshooting Diagram</u></h2><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026020316-da26bdd8-2acf-435a-92ef-a892e804d675-dyc18_troubleshooting_atl.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered"></p>

The "ATL" error code indicates over-temperature protection. This article is for Vertex Ducted Central Split (DYC-18) systems.
