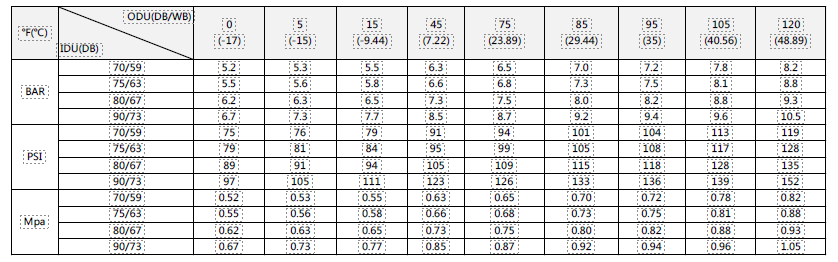

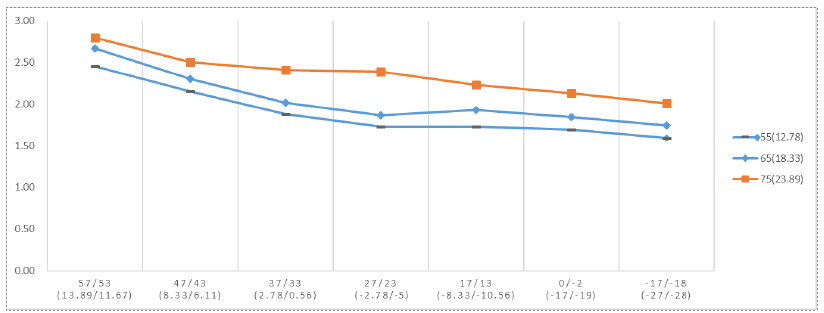

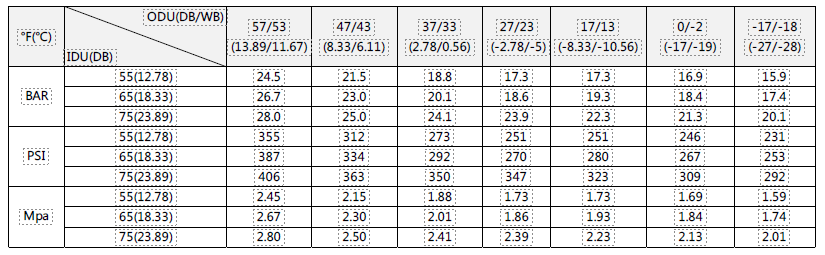

<h1 id="outdoor-unit-model-number-yn050glsi24m5g-z2u20607000278">Outdoor Unit Model Number: YN050GLSI24M5G (Z2U20607000278)</h1><p id="isPasted"><br></p><h2 id="refrigerant-r-454b"><strong>Refrigerant: R-454B</strong></h2><p><br></p><h2 id="cooling-chart"><strong>Cooling Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside&#xA0;</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-47857321-f149-48dc-a21b-9dceb22b4a35-yn050glsi24m5g_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-0c2db54f-89d6-4759-bfad-b01d6888cee4-yn050glsi24m5g_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="heating-chart"><strong>Heating Chart</strong></h2><p><strong><strong>Active Pressure:&#xA0;</strong></strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-6756287a-ef25-4031-b7fa-13ebac4ab050-yn050glsi24m5g_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-f5bbb208-6dcb-4f15-aba3-cbe12206d20c-yn050glsi24m5g_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="system-pressure-table"><strong>System Pressure Table</strong></h2><p><strong>Static Pressure:&#xA0;</strong>Compressor not running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-13de19f6-29b1-4f61-be10-d271f7ce08cc-r-454b_multizone_system_pressure.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-867e9d80-2660-462e-8635-7d388b7a7dfa-r-454b_multizone_system_pressure_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p>

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside.

YN050GLSI24M5G

PT (Pressure-Temperature) Charts

YNL-24
