YN040GLSI24M4G Parts ListUpdated 17 days ago
Introduction
This article includes the parts list for outdoor unit of the YN040GLSI24M4G system. This system is part of the Quantum Ultra Multi-Zone Outdoor Unit (YNL-24) series.
Outdoor Unit
Model number: YN040GLSI24M4G
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000631 | Base | 1 | |
| 2 | 42003-000044 | Electric heating fixed card | 3 | |
| 3 | 22004-000130 | Electric heating assembly | 1 | |
| 4 | 92007-021285 | Suction pipe | 1 | |
| 5 | / | Refrigerant accumulator | 1 | |
| 6 | 92014-001064 | Compressor | 1 | |
| 7 | 92007-021287 | 4-way valve module | 1 | |
| 8 | 92007-020838 | High pressure valve | 1 | |
| 9 | 41208-001244 | Middle metal panel | 1 | |
| 10 | 31201-003194 | Outdoor control assembly | 1 | |
| 11 | 42001-000038 | Clamp | 5 | |
| 12 | 11304-100097 | Terminal 1 | 1 | |
| 11304-100029 | Terminal 2 | 4 | ||
| 13 | / | Right front panel small handle | 1 | |
| 14 | 45003-000342 | Right front panel | 1 | |
| 15 | 41204-000098 | Valve supporter | 1 | |
| 16 | 92008-000051 | 2-way valve | 4 | |
| 17 | 92008-000150 | 3-way valve | 4 | |
| 18 | 41204-000094 | Valve cover | 1 | |
| 19 | 41201-000100 | Electrical box cover | 1 | |
| 20 | 92008-000393 | Valve assembly | 1 | |
| 21 | 41205-001033 | Right plate | 1 | |
| 22 | 95003-004745 | Condenser | 1 | |
| 23 | 45014-005147 | Back grille | 1 | |
| 24 | 42001-000070 | Sensor clamp | 1 | |
| 42001-000130 | Sensor clamp | 1 | ||
| 25 | 45007-000096 | Top cover | 1 | |
| 26 | 41201-000037 | Left handle | 1 | |
| 27 | 45005-000538 | Motor supporter | 1 | |
| 28 | 41205-001008 | Left supporter | 1 | |
| 29 | 42011-000560 | Left grille | 1 | |
| 30 | 25001-000415 | Motor | 1 | |
| 31 | 45009-000093 | Propeller fan | 1 | |
| 32 | 45013-000319 | Front plate | 1 | |
| 33 | 42011-000490 | Fan guard | 1 | |

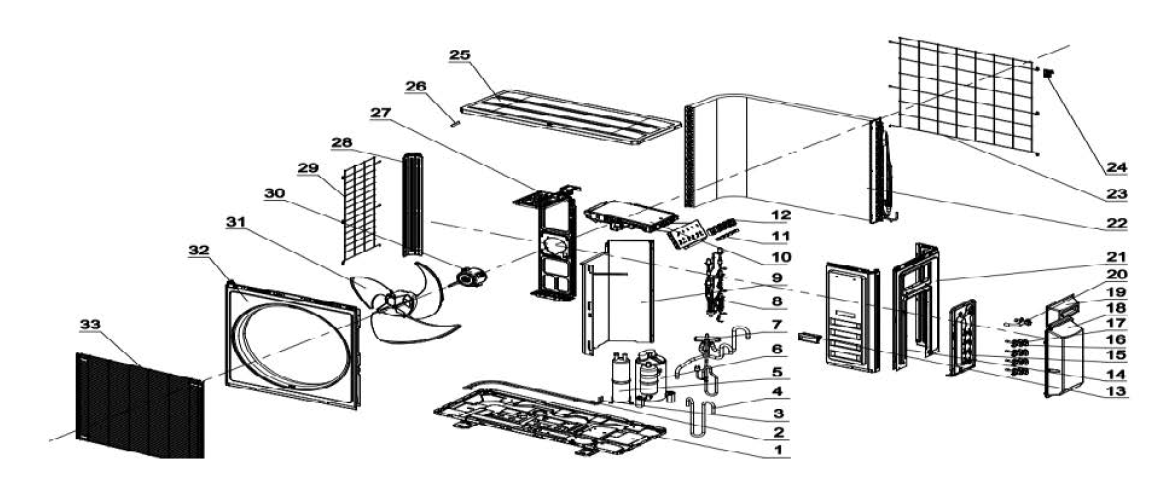

| 34 | A5006-000136 | Packing foam | 1 | Not shown in the Explosion view |
| 35 | 92001-000039 | Electrical valve coil | 1 | |
| 92001-000036 | Electrical valve coil | 1 | ||
| 92001-000038 | Electrical valve coil | 1 | ||
| 92001-000043 | Electrical valve coil | 1 | ||
| 36 | 10104-100205 | Resistance | 1 | |
| 37 | 22007-000104 | Power supply cord | 1 |
