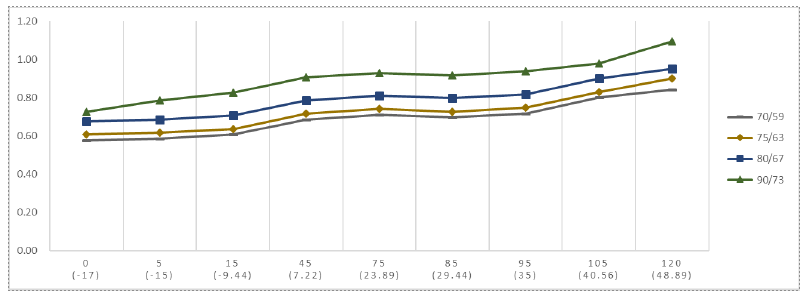

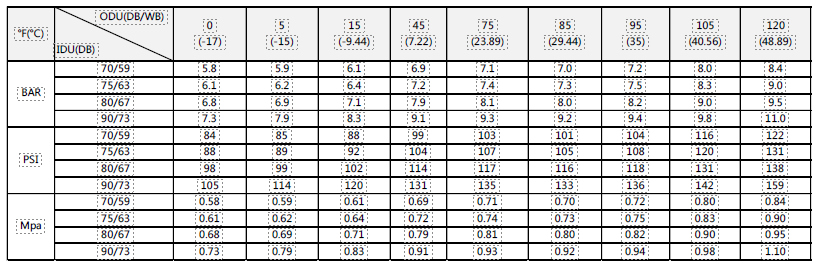

<h1 id="isPasted">Outdoor Unit Model Number: YN040GLSI24M4G (Z2U20607000266)</h1><p><br></p><h2 id="refrigerant-r-454b"><strong>Refrigerant: R-454B</strong></h2><p><br></p><h2 id="cooling-chart"><strong>Cooling Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside&#xA0;</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-74059fb2-00e9-4770-894e-1e6d57f41e49-yn040glsi24m4g_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-33c19fc5-e099-41d5-be01-5cd9de53f7f6-yn040glsi24m4g_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><h2 id><br></h2><h2 id="heating-chart"><strong>Heating Chart</strong></h2><p><strong><strong>Active Pressure:&#xA0;</strong></strong>Compressor running outside<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-f8231bbe-8b7d-4dde-a93d-bafb516077d0-yn040glsi24m4g_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-d3c1991a-be26-494a-94a6-50722d14a02f-yn040glsi24m4g_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="system-pressure-table"><strong>System Pressure Table</strong></h2><p><strong>Static Pressure:&#xA0;</strong>Compressor not running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-518b97d8-5d35-44a1-99d2-5b96b48062ae-r-454b_multizone_system_pressure.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102918-21e844c3-2c0c-44c4-9eca-b005154038ba-r-454b_multizone_system_pressure_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p>

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside.

YN040GLSI24M4G

PT (Pressure-Temperature) Charts
