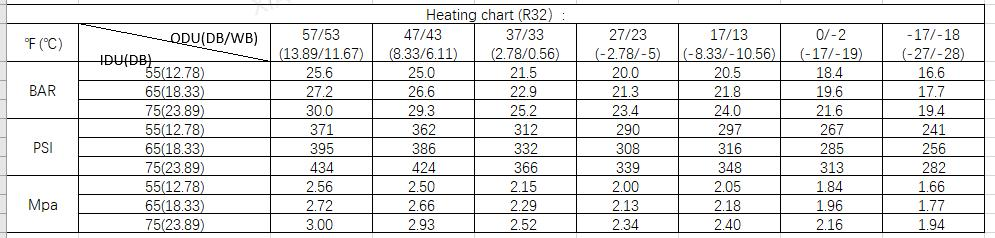

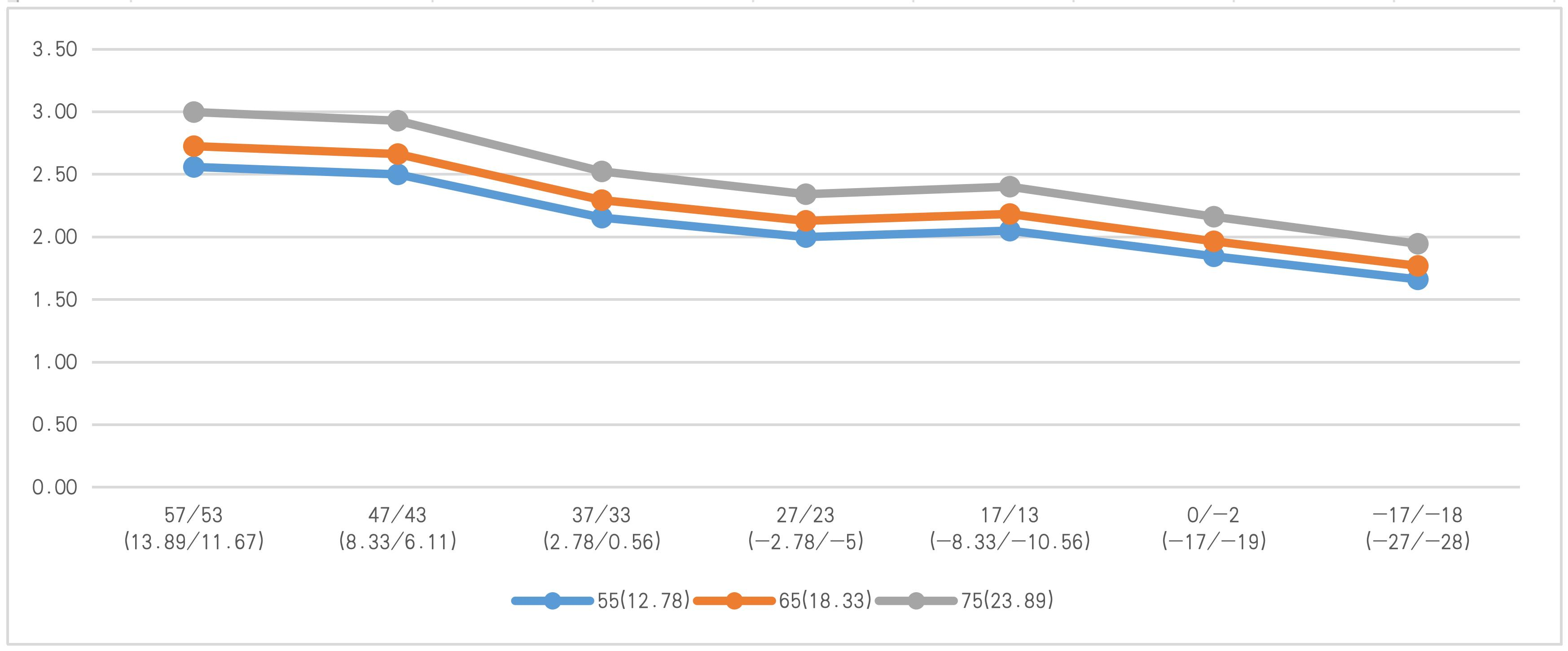

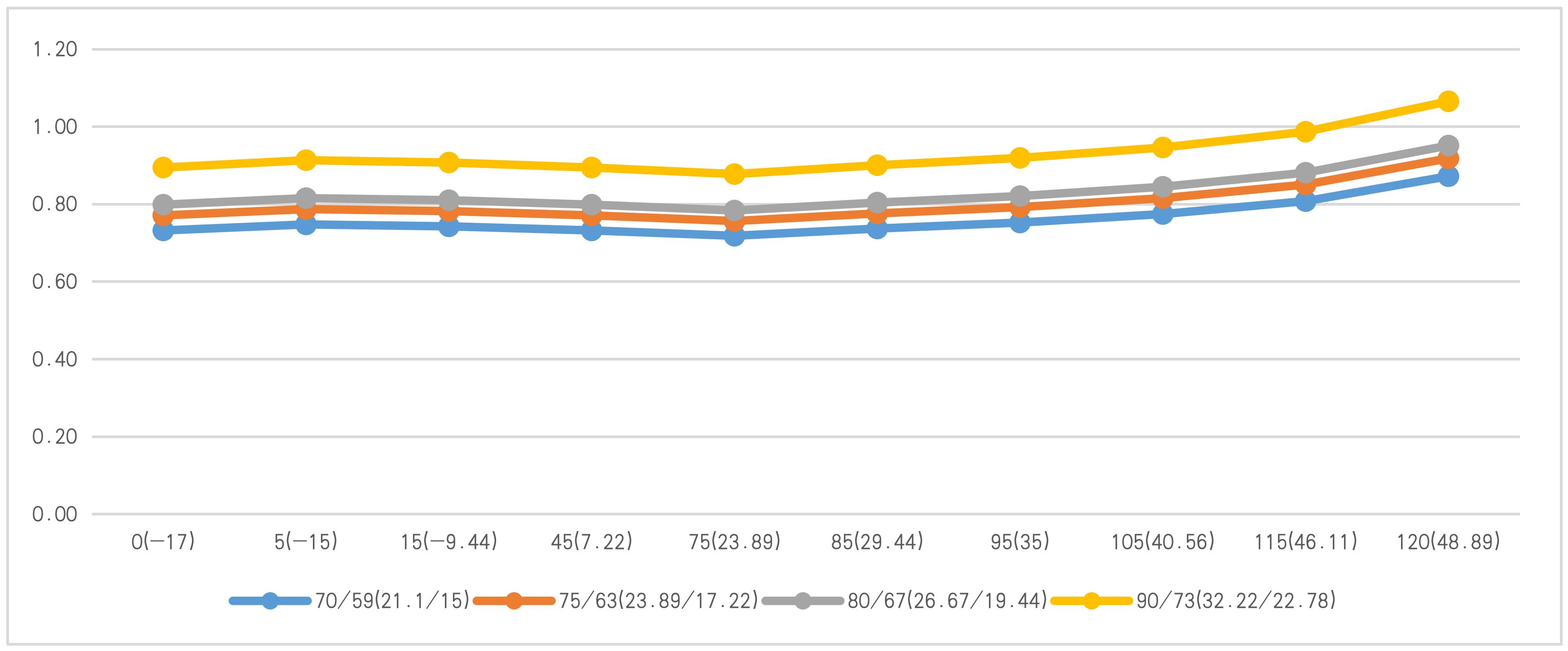

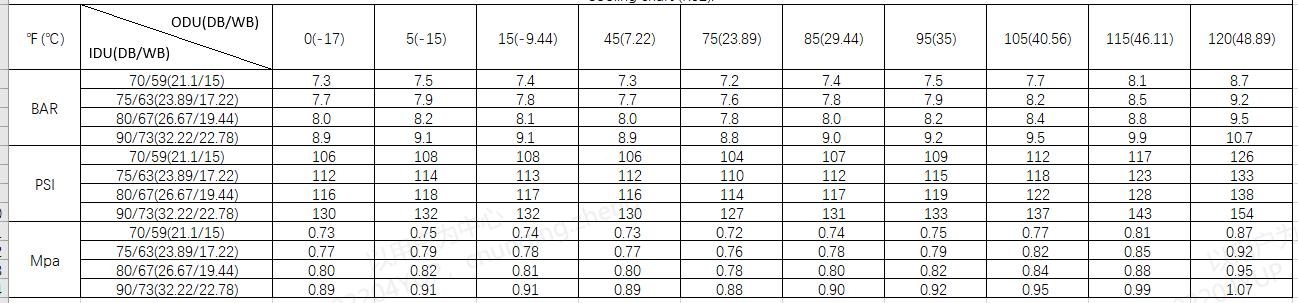

<h1 id="outdoor-unit-model-number-yn036glui17rpd-z4u20101042775">Outdoor Unit Model Number: YN036GLUI17RPD (Z4U20101042775)&#xA0;</h1><p><br></p><h2 id="refrigerant-r-32"><strong>Refrigerant: R-32</strong></h2><p><br></p><h2 id="isPasted"><strong>Cooling Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102820-203b4192-f020-471b-96a2-182e44c2245e-yn036glui17rpd_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102820-13256084-8010-40c4-bbd4-613f58228409-yn036glui17rpd_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><h2 id><br></h2><h2 id="isPasted"><strong>Heating Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102820-a10a02cb-d57a-4dab-ad2c-f8ee6c1c7f79-yn036glui17rpd_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102820-ffcb06c5-dd8a-42cc-a667-eac5f3821b90-yn036glui17rpd_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="isPasted"><strong>System Pressure Table</strong></h2><p><strong>Static Pressure:</strong> Compressor not running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102912-3a30afe1-f391-4271-a6ae-af7c423bc254-r32_system_pressure_table.png" style="width: 1000px;" class="fr-fic fr-dii fr-bordered"></p><p><br></p>

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside.

YN036GLUI17RPD

PT (Pressure-Temperature) Charts
