YN030GLSI24M3G Parts ListUpdated 20 days ago
Introduction

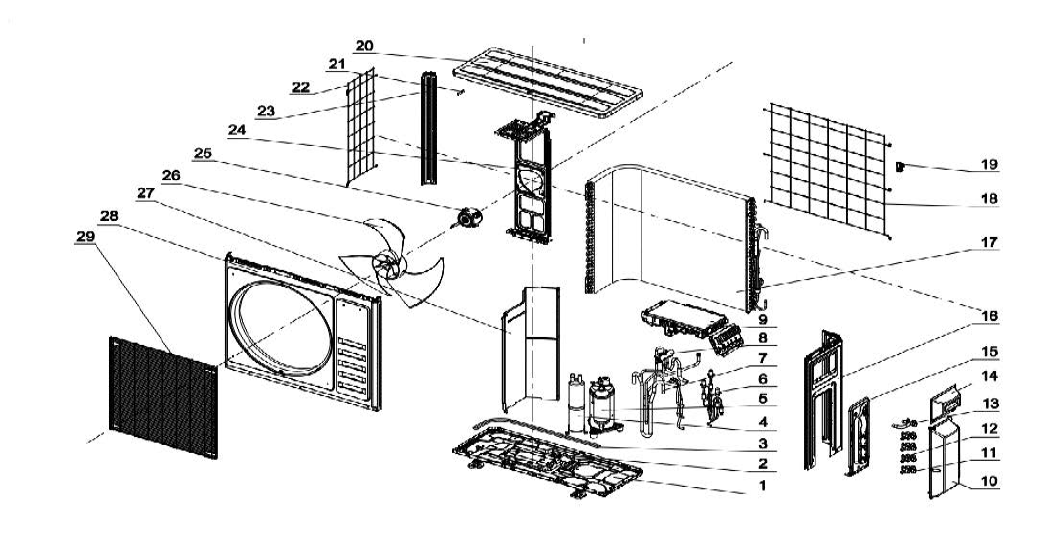

This article includes the parts list for the outdoor unit of the YN030GLSI24M3G system. This system is part of the Quantum Ultra Multi-Zone Outdoor Unit (YNL-24) series.
Outdoor Unit
Model number: YN030GLSI24M3G
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000596 | Base | 1 | |
| 2 | 42003-000044 | Electric heating fixed card | 3 | |
| 3 | 22004-000130 | Electric heating assembly | 1 | |
| 4 | / | Refrigerant accumulator | 1 | |
| 5 | 95017-000031 | Compressor | 1 | |
| 6 | 92007-020897 | High pressure valve | 1 | |
| 7 | 92007-020507 | Suction pipe | 1 | |
| 8 | 92007-020749 | 4-way valve module | 1 | |
| 9 | 31201-003181 | Outdoor control assembly | 1 | |
| 10 | 41204-000072 | Valve cover | 1 | |
| 11 | 92008-000051 | 2-way valve | 3 | |
| 12 | 92008-000150 | 3-way valve | 3 | |
| 13 | 92008-000393 | Valve assembly | 1 | |
| 14 | 41201-000100 | Electrical box cover | 1 | |
| 15 | 41204-000095 | Valve supporter | 1 | |
| 16 | 41205-001005 | Right plate | 1 | |
| 17 | 92011-010869 | Condenser | 1 | |
| 18 | 42011-000419 | Back grille | 1 | |
| 19 | 42001-000068 | Sensor clamp | 1 | |
| 20 | 41207-000048 | Top cover | 1 | |
| 21 | 41201-000037 | Left handle | 1 | |
| 22 | 42011-000420 | Left grille | 1 | |
| 23 | 41205-000217 | Left supporter | 1 | |
| 24 | 41203-000115 | Motor supporter | 1 | |
| 25 | 22001-000605 | Motor | 1 | |
| 26 | 42004-000249 | Propeller fan | 1 | |
| 27 | 41208-001242 | Middle metal panel | 1 | |
| 28 | 41206-000076 | Front panel | 1 | |
| 29 | 42011-000031 | Fan guard | 1 | |
| 30 | 42001-000038 | Clamp | 1 | Not shown in the Explosion view |
| 31 | 11304-100097 | Terminal | 1 | |
| 32 | 11304-100029 | Terminal | 1 | |
| 33 | A1201-012669 | Base carton | 1 | |
| 34 | A1202-000086 | Packing foam | 1 | |
| A1202-000085 | Packing foam | 1 | ||
| 35 | 92001-000039 | Electrical valve coil | 1 | |
| 92001-000036 | Electrical valve coil | 1 | ||
| 92001-000038 | Electrical valve coil | 1 | ||
| 36 | 22007-000111 | Power supply cord | 1 |
