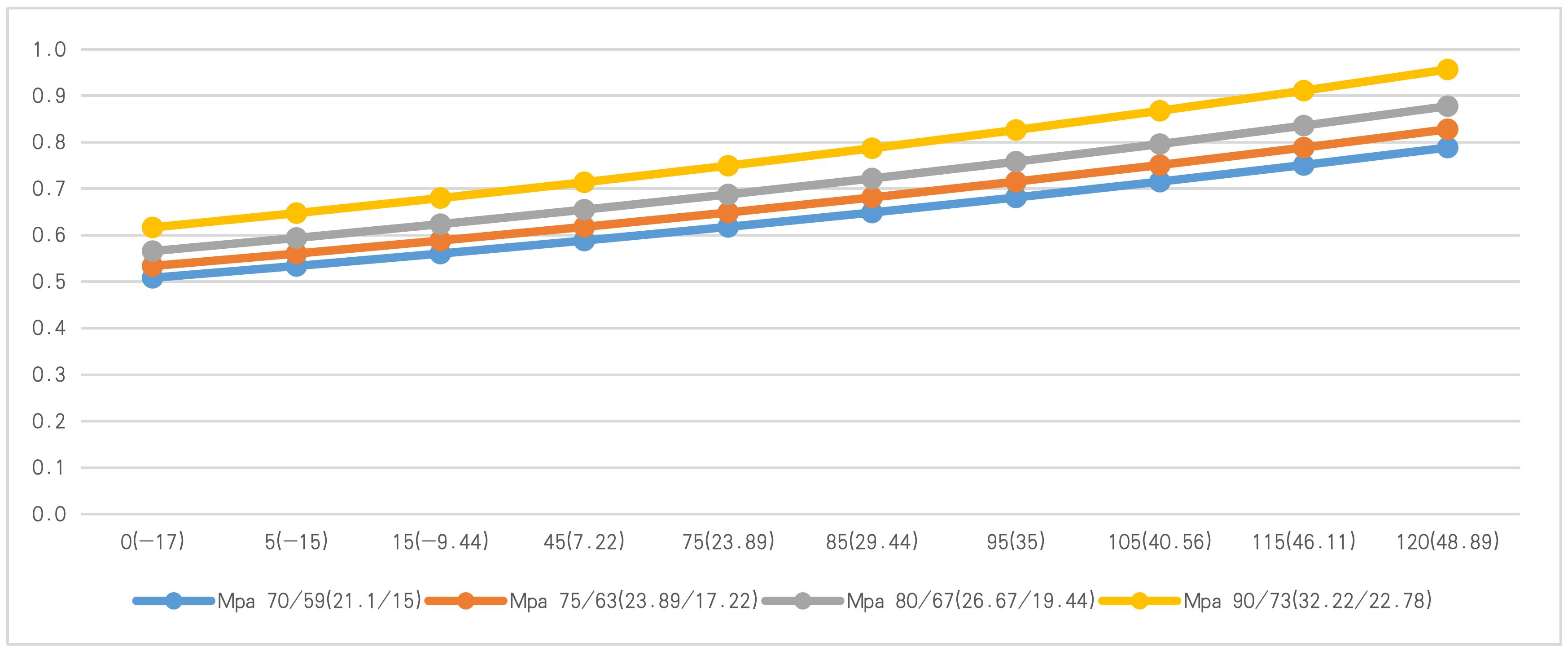

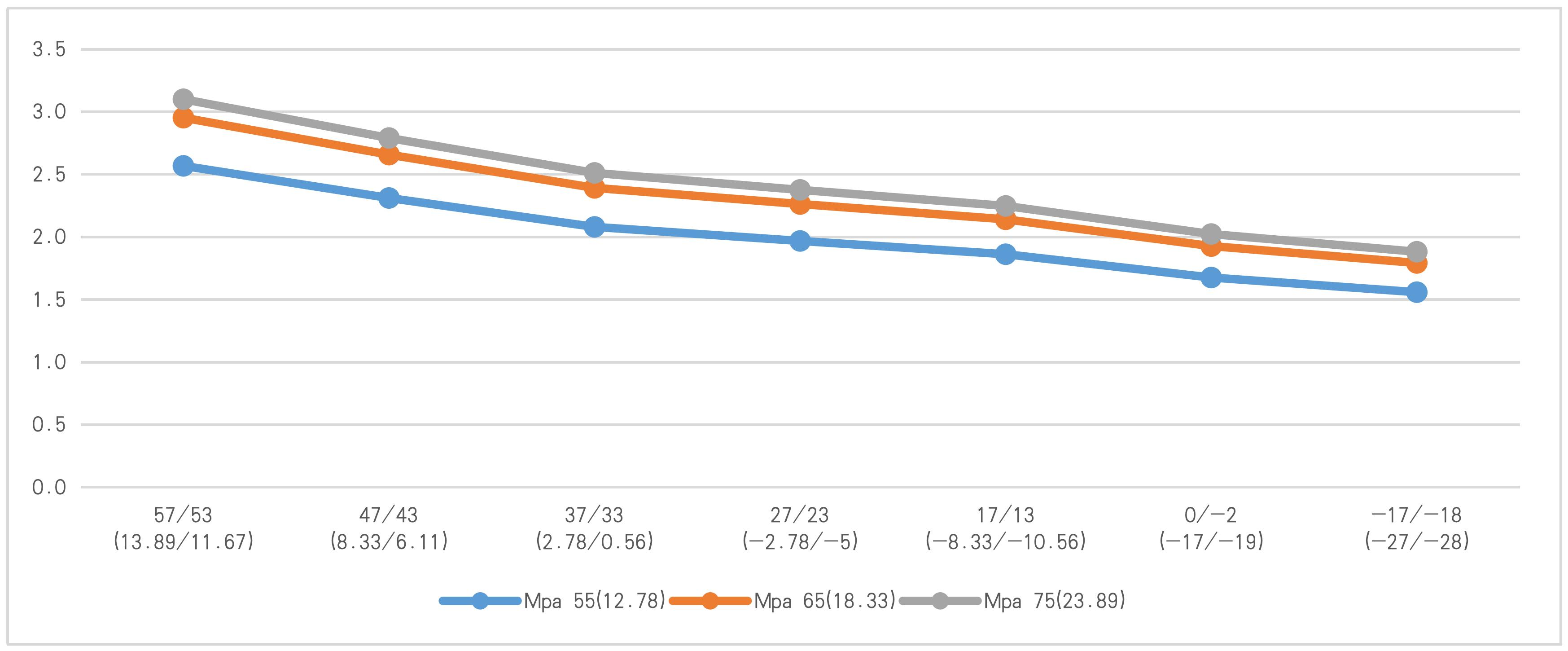

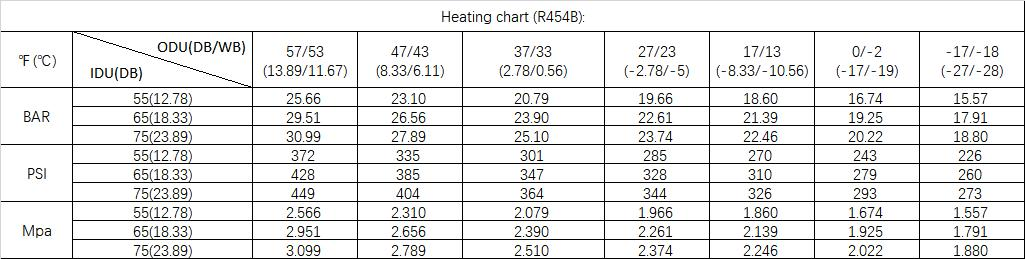

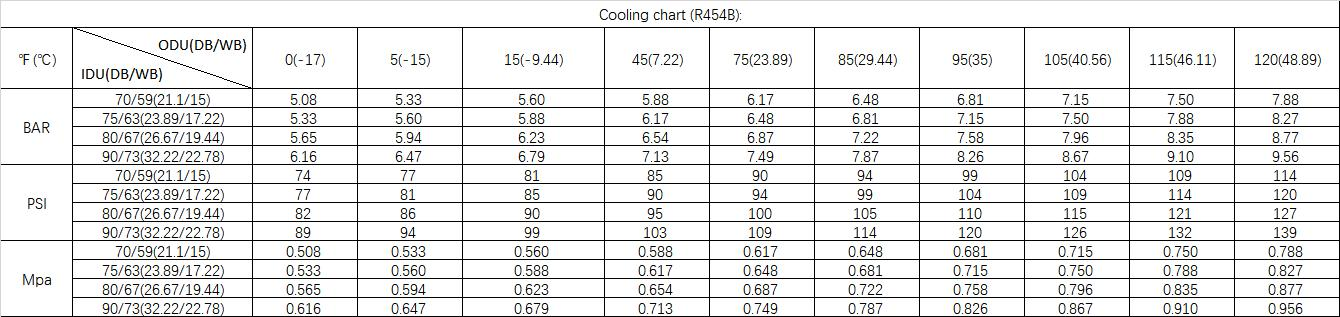

<h1 id="outdoor-unit-model-numbersyn030glsi20rpf--yn036glsi20rpf-z2u20101009717"><strong>Outdoor Unit Model Numbers:&#xA0;</strong>YN030GLSI20RPF &amp; YN036GLSI20RPF (Z2U20101009717)</h1><p><br></p><h2 id="refrigerant-r-454b"><strong>Refrigerant: R-454B</strong></h2><p><br></p><h2 id="cooling-chart"><strong>Cooling Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102914-33ef694e-c3d9-4878-ae3a-a05dbd5b6014-yn030glsi20rpf_yn036glsi20rpf_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102914-4825e431-bce9-41eb-ac26-e86e73b7d9ae-yn030glsi20rpf_yn036glsi20rpf_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><h2 id><br></h2><h2 id="heating-chart"><strong>Heating Chart</strong></h2><p><strong id="isPasted">Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102914-d0b4bf7e-bf4e-412c-84a9-7854e09e5bc6-yn030glsi20rpf_yn036glsi20rpf_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102914-8676805d-6f93-4e99-8519-f930f7935f98-yn030glsi20rpf_yn036glsi20rpf_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><h2 id="-1"><br></h2><h2 id="system-pressure-table"><strong>System Pressure Table</strong></h2><p><strong>Static Pressure:&#xA0;</strong>Compressor not running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102914-470cf82f-f70a-4587-a457-3ed8a11e9703-r454b_pressure_table.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102914-11e439a1-dcac-4eaf-abfc-95fbe50fc185-r454b_pressure_table_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p>

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside.

YN030GLSI20RPF & YN036GLSI20RPF

PT (Pressure-Temperature) Charts
