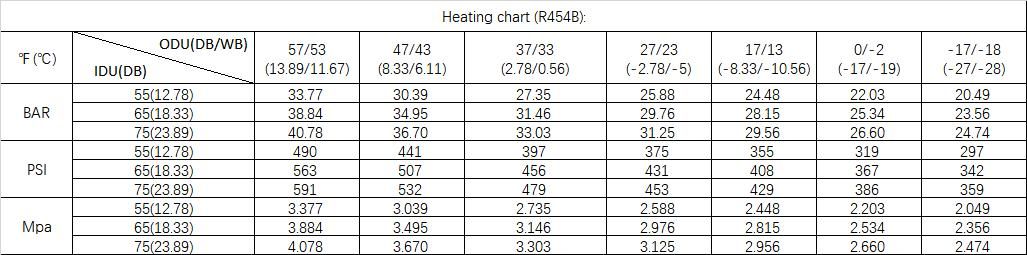

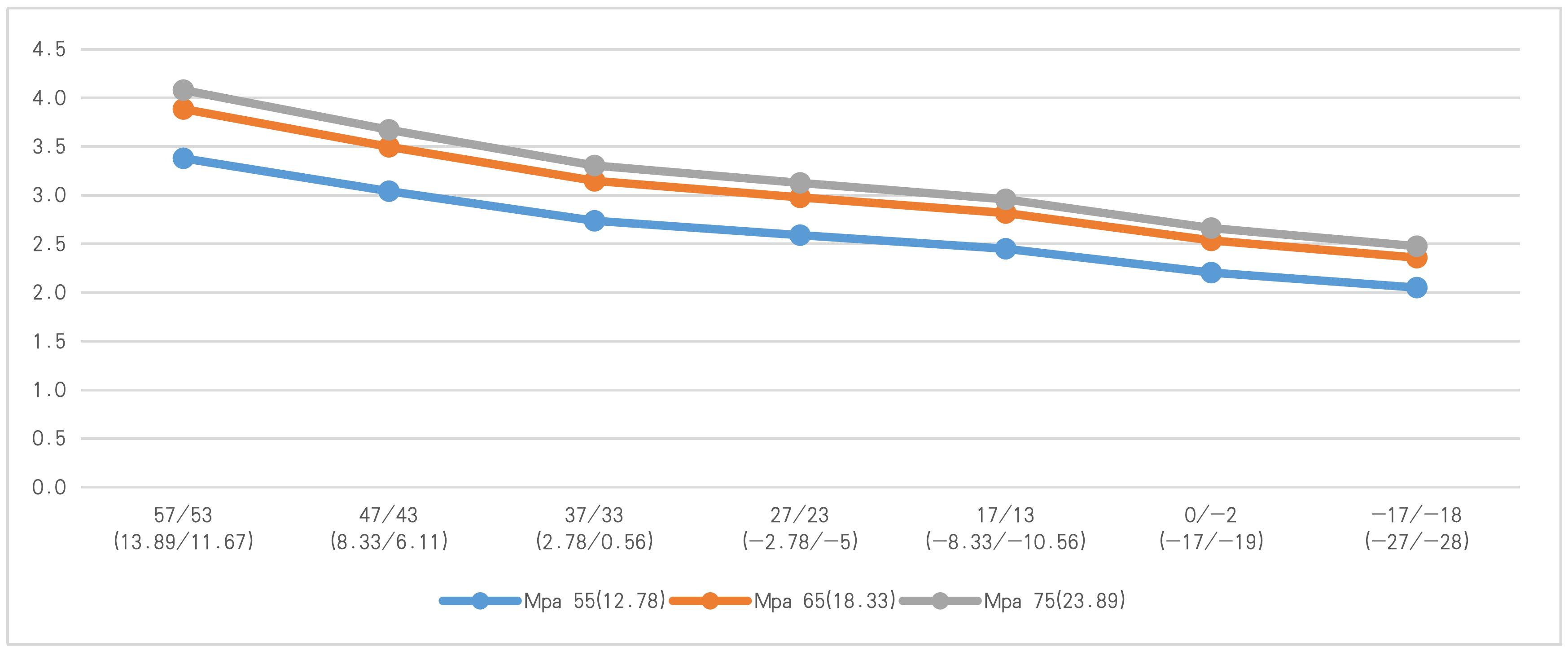

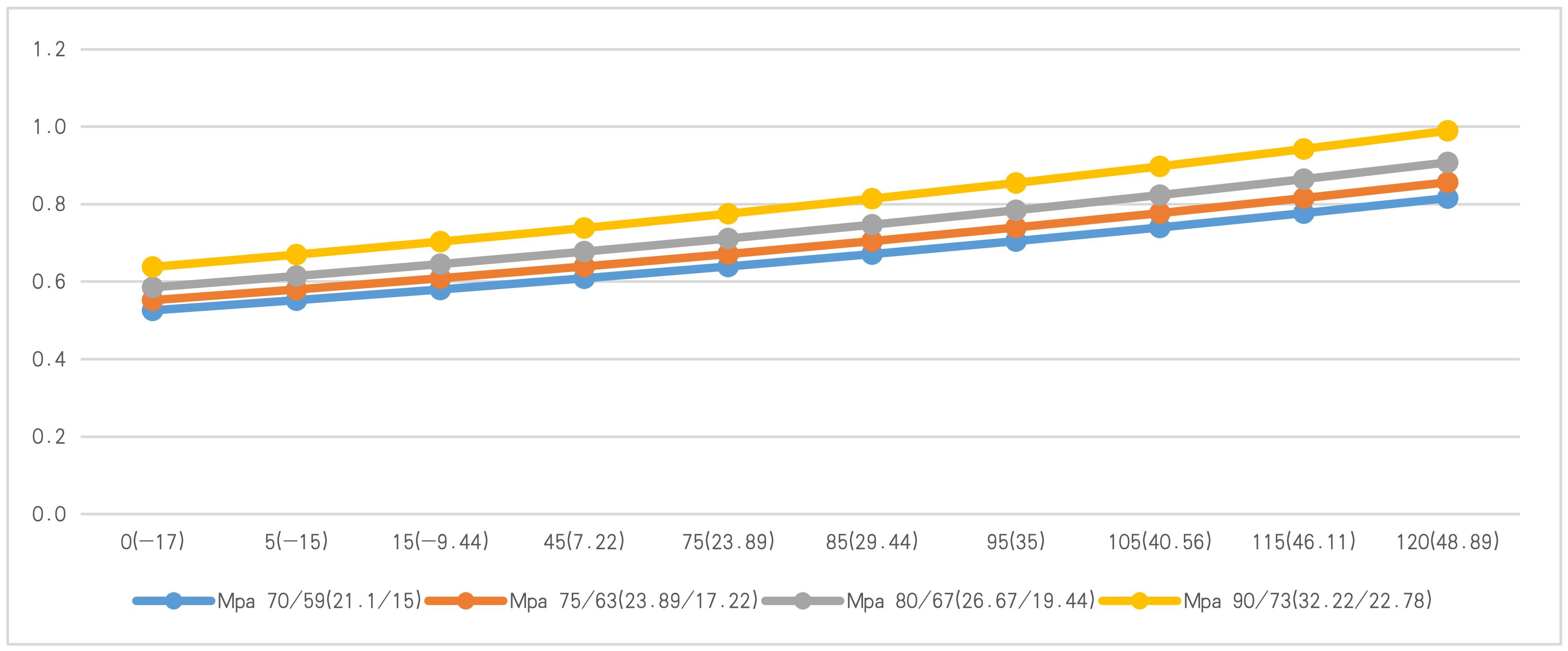

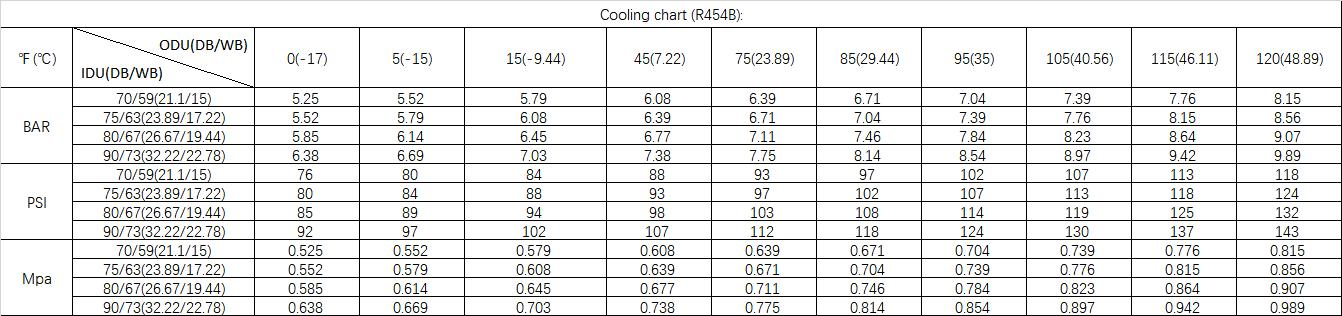

<h1 id="outdoor-unit-model-number-yn024glsi25rph-z4u20101042115">Outdoor Unit Model Number: YN024GLSI25RPH (Z4U20101042115)</h1><p><br></p><h2 id="refrigerant-r-454b"><strong>Refrigerant: R-454B</strong></h2><p><br></p><h2 id="cooling-chart"><strong>Cooling Chart</strong></h2><p><strong><strong id="isPasted">Active Pressure:&#xA0;</strong></strong>Compressor running outside <strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102916-0a16b920-e8a9-4510-8ed0-f29695adaa89-yn024glsi25rph_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102916-558ef276-7466-467a-80c3-eed63141d09d-yn024glsi25rph_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="heating-chart"><strong>Heating Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside&#xA0;</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102916-a3e64f88-f4a1-415e-b8e5-b53e79a67a97-yn024glsi25rph_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102916-2d3e6c06-f765-45fa-9261-185c17703f5b-yn024glsi25rph_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="system-pressure-table"><strong>System Pressure Table</strong></h2><p><strong>Static Pressure:&#xA0;</strong>Compressor not running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102916-8d22f205-c8d2-433f-a8a3-9c12420f84e9-r454b_pressure_table.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102916-87788cc4-fecb-43a8-af5d-4e5754c83e9f-r454b_pressure_table_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p>

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside.

YN024GLSI25RPH

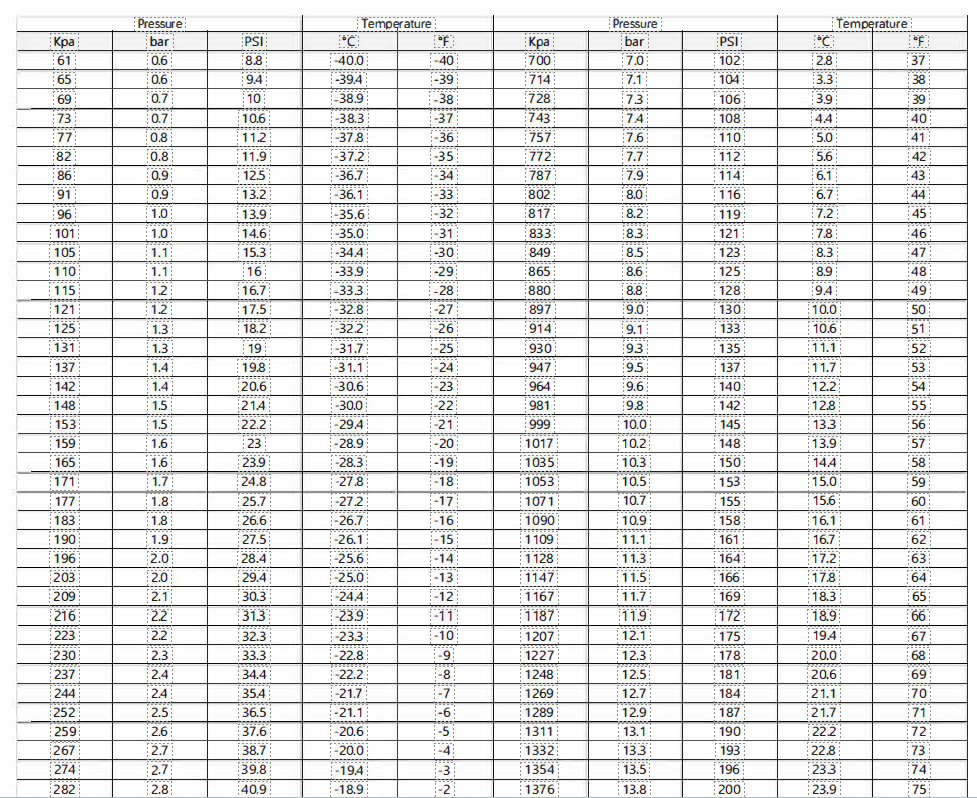

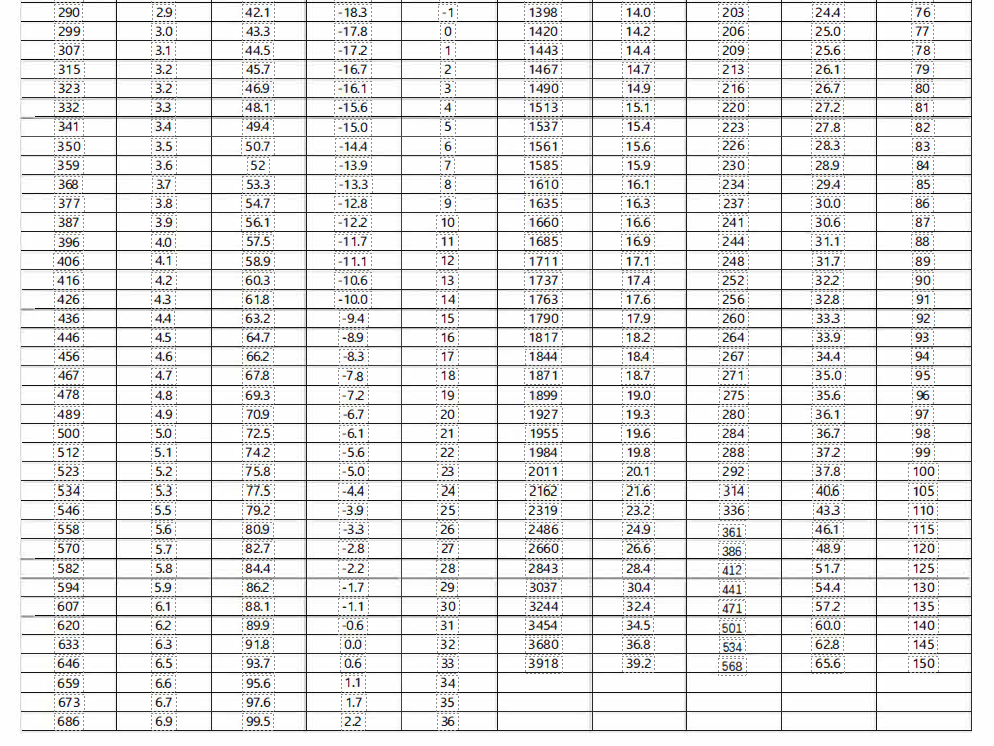

PT (Pressure-Temperature) Charts
