YN020GLSI24M2G Parts ListUpdated 7 hours ago
Introduction
This article includes the parts list for the outdoor unit of the YN020GLSI24M2G system. This system is part of the Quantum Ultra Multi-Zone Outdoor Unit (YNL-24) series.
Outdoor Unit
Model number: YN020GLSI24M2G
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000653 | Base | 1 | |
| 2 | 41208-001267 | Middle metal panel | 1 | |
| 3 | 92014-000935 | Compressor | 1 | |
| 4 | 92007-020555 | 4-way valve assembly | 1 | |
| 5 | 92008-000495 | 4-way valve | 1 | |
| 6 | 31201-003179 | Outdoor PCB assembly | 1 | |
| 7 | 42001-000038 | Clamp | 2 | |
| 8 | 11304-100029 | Terminal 1 | 2 | |
| 11304-100097 | Terminal 2 | 1 | ||
| 9 | 41204-000070 | Valve cover | 1 | |
| 10 | 41205-000207 | Right plate assembly | 1 | |
| 11 | 41204-000069 | Valve supporter | 1 | |
| 12 | 92008-000146 | 3-way valve | 2 | |
| 13 | 92008-000051 | 2-way valve | 2 | |
| 14 | 41201-000100 | Electrical box cover | 1 | |
| 15 | 92007-021508 | Electronic expansion valve assembly | 1 | |
| 16 | 42011-000188 | Back grille | 1 | |
| 17 | 92011-005404 | Condenser | 1 | |
| 18 | 41207-000028 | Top cover | 1 | |
| 19 | 41205-000135 | Left supporter | 1 | |
| 20 | 41203-000032 | Motor bracket assembly | 1 | |
| 21 | 22001-000147 | Outdoor motor | 1 | |
| 22 | 42004-000105 | Propeller fan | 1 | |
| 23 | 41206-000058 | Front panel | 1 | |
| 24 | 42011-000039 | Fan guard | 1 | |

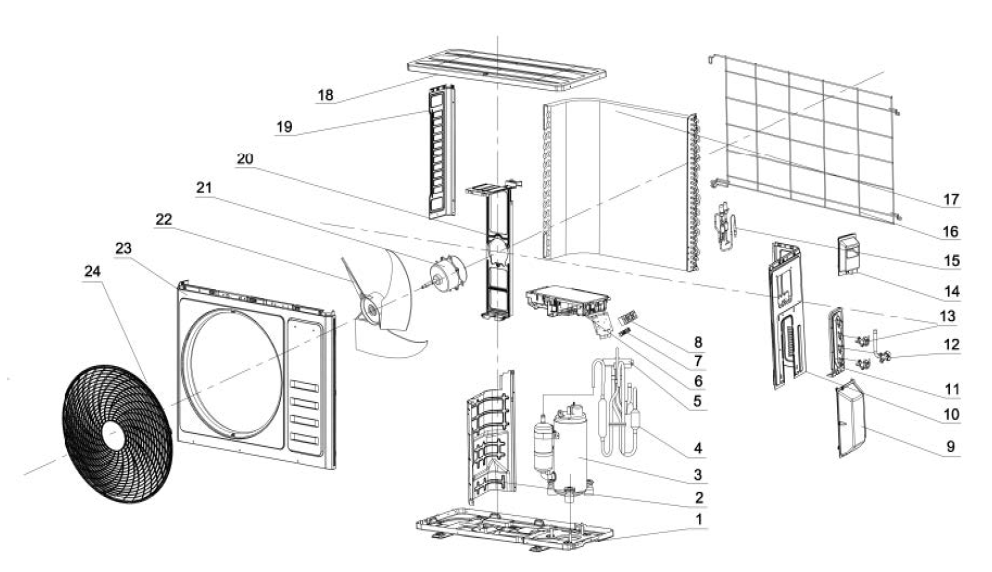

| 25 | 92001-000036 | Electronic expansion valve coil | 1 | Not shown in the Explosion view |
| 26 | 10104-100120 | Sensor | 1 | |
| 27 | A2007-000932 | Base carton | 1 | |
| 28 | A1202-000030 | Base foam | 1 | |
| 29 | 41110-000204 | Cover foam | 1 | |
| 30 | 22004-000104 | Electric heater | 1 | |
| 31 | 92007-020613 | Low pressure valve connection pipe assembly | 1 | |
| 32 | 22007-000111 | Power supply cord | 1 |
