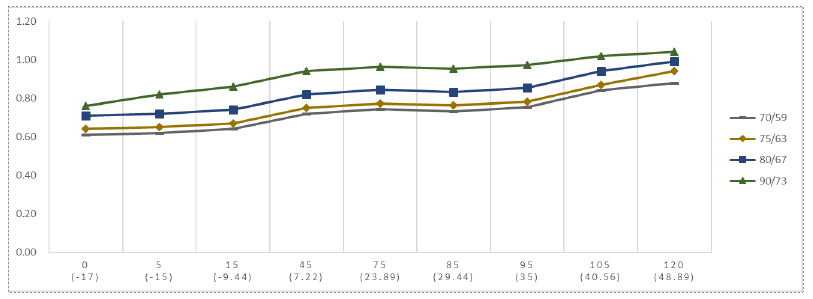

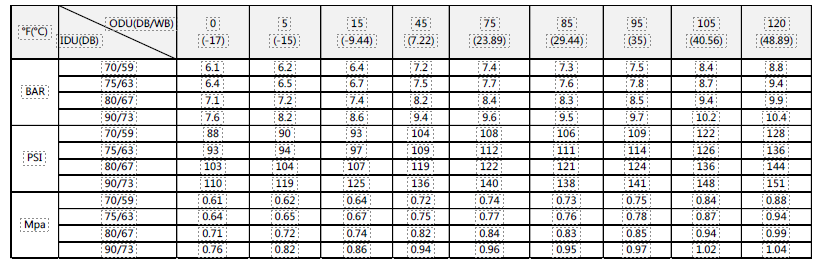

<h1 id="outdoor-unit-model-number-yn020glsi24m2g-z2u20607000257">Outdoor Unit Model Number: YN020GLSI24M2G (Z2U20607000257)</h1><p><br></p><h2 id="refrigerant-r-454b"><strong>Refrigerant: R-454B</strong></h2><p><br></p><h2 id="cooling-chart"><strong>Cooling Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside&#xA0;</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102917-a8ce36c2-93fd-41e1-a6aa-ffd8d438ec13-yn020glsi24m2g_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102917-e4f19181-f97a-44ce-a591-3162f2690b4c-yn020glsi24m2g_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="heating-chart"><strong>Heating Chart</strong></h2><p><strong><strong id="isPasted">Active Pressure:&#xA0;</strong></strong>Compressor running outside<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102917-b59ab4b1-1b99-4955-a1a9-14615fc5adff-yn020glsi24m2g_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102917-a2aa3321-e5a9-49a5-b5cc-ce260235e29f-yn020glsi24m2g_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="system-pressure-table"><strong>System Pressure Table</strong></h2><p><strong>Static Pressure:&#xA0;</strong>Compressor not running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102917-d6f46981-3944-4024-8ed3-ca052de1c47f-r-454b_multizone_system_pressure.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102917-1155119a-a348-4c77-a3c2-68897f538a95-r-454b_multizone_system_pressure_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p>

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside.

YN020GLSI24M2G

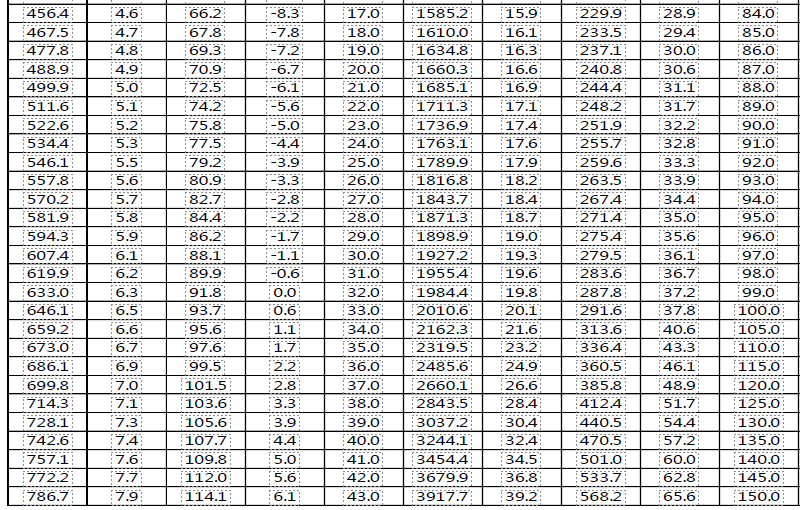

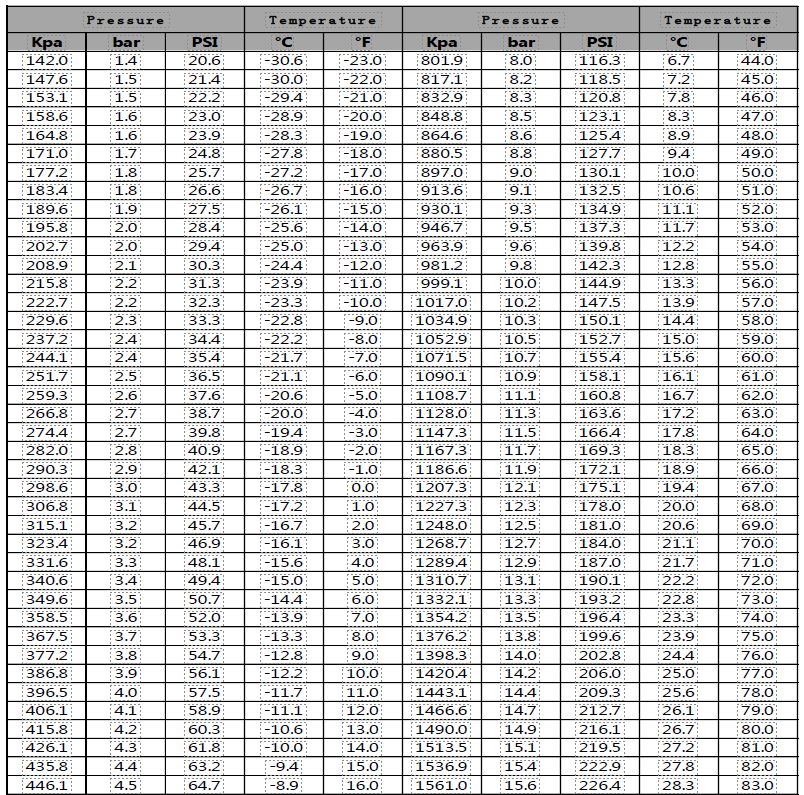

PT (Pressure-Temperature) Charts
