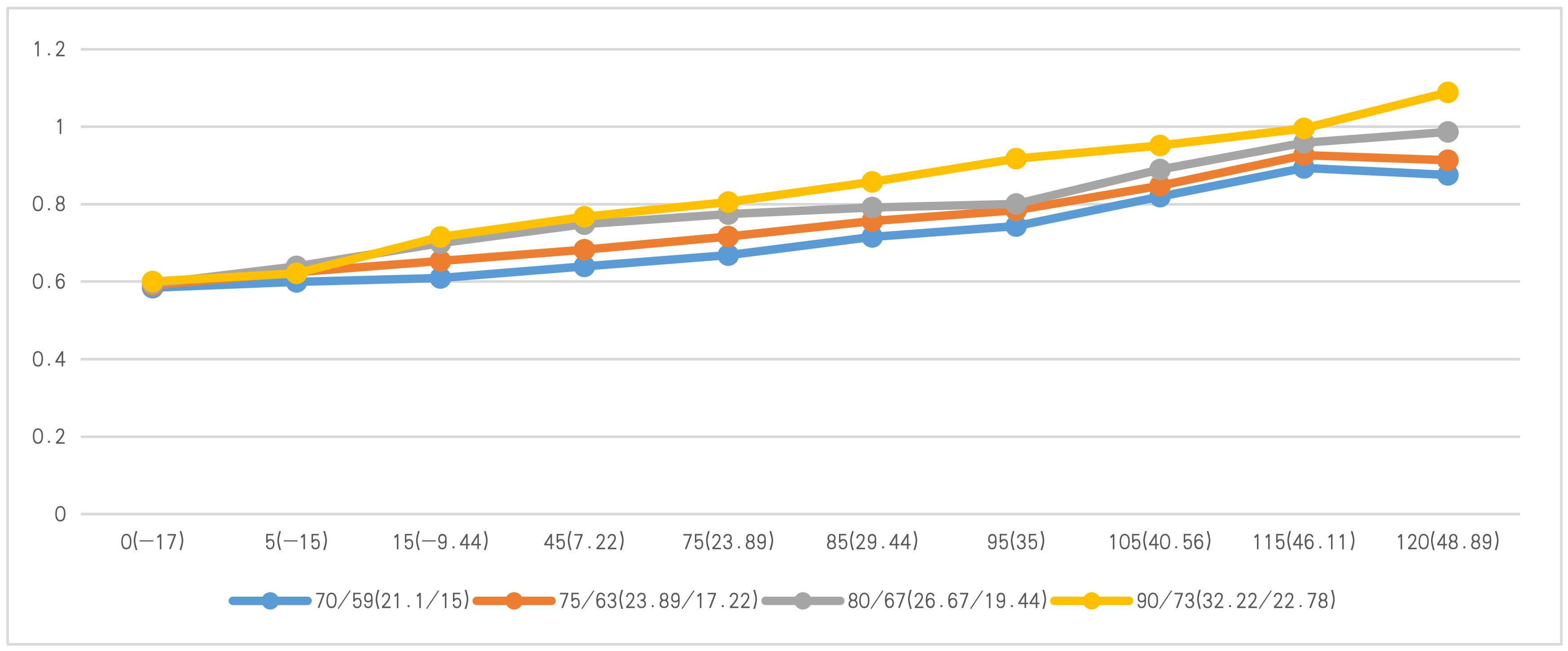

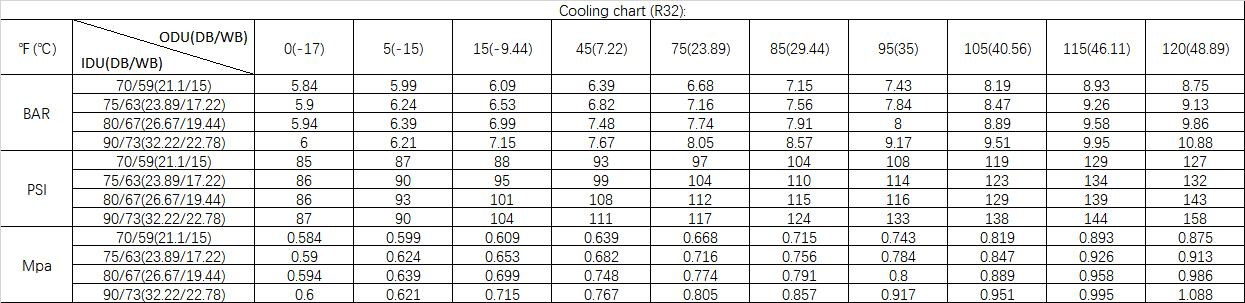

<h1 id="isPasted">Outdoor Unit Model Number: <strong>YN012GLUI17RPD (Z4U20101041122)</strong></h1><p><br></p><h2 id="refrigerant-r-32"><strong>Refrigerant: R-32</strong></h2><p><br></p><h2 id="cooling-chart"><strong>Cooling Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102819-aa3707c0-947b-4bff-b5f0-830ce210114b-yn012glui17rpd_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102819-4b2735f3-fc5d-4e2a-a003-8c76ec8ab97c-yn012glui17rpd_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><h2 id><br></h2><h2 id="heating-chart"><strong>Heating Chart</strong></h2><p><strong>Active Pressure:</strong> Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102819-39e788c9-9fcb-488f-a09b-e6a36f18dab0-yn012glui17rpd_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102819-5fafbb01-8a82-4a9e-9632-b78691de7f04-yn012glui17rpd_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="isPasted"><strong>System Pressure Table</strong></h2><p><strong>Static Pressure:</strong> Compressor not running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102912-3a30afe1-f391-4271-a6ae-af7c423bc254-r32_system_pressure_table.png" style="width: 1000px;" class="fr-fic fr-dii fr-bordered"></p><p><br></p>

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside.

YN012GLUI17RPD

PT (Pressure-Temperature) Charts
