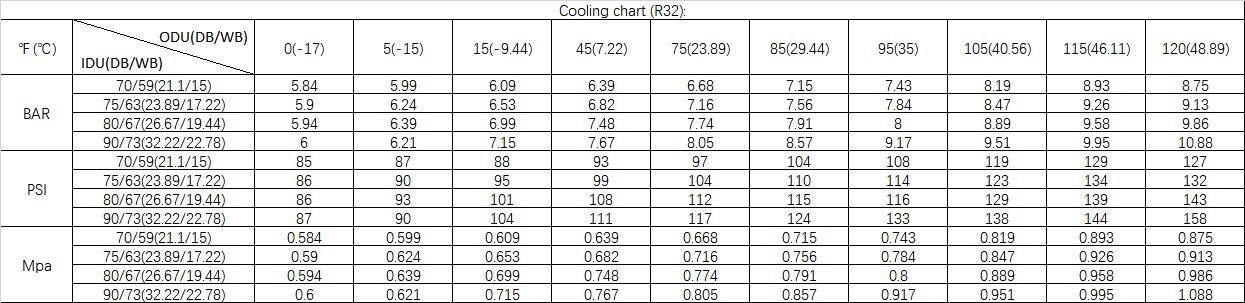

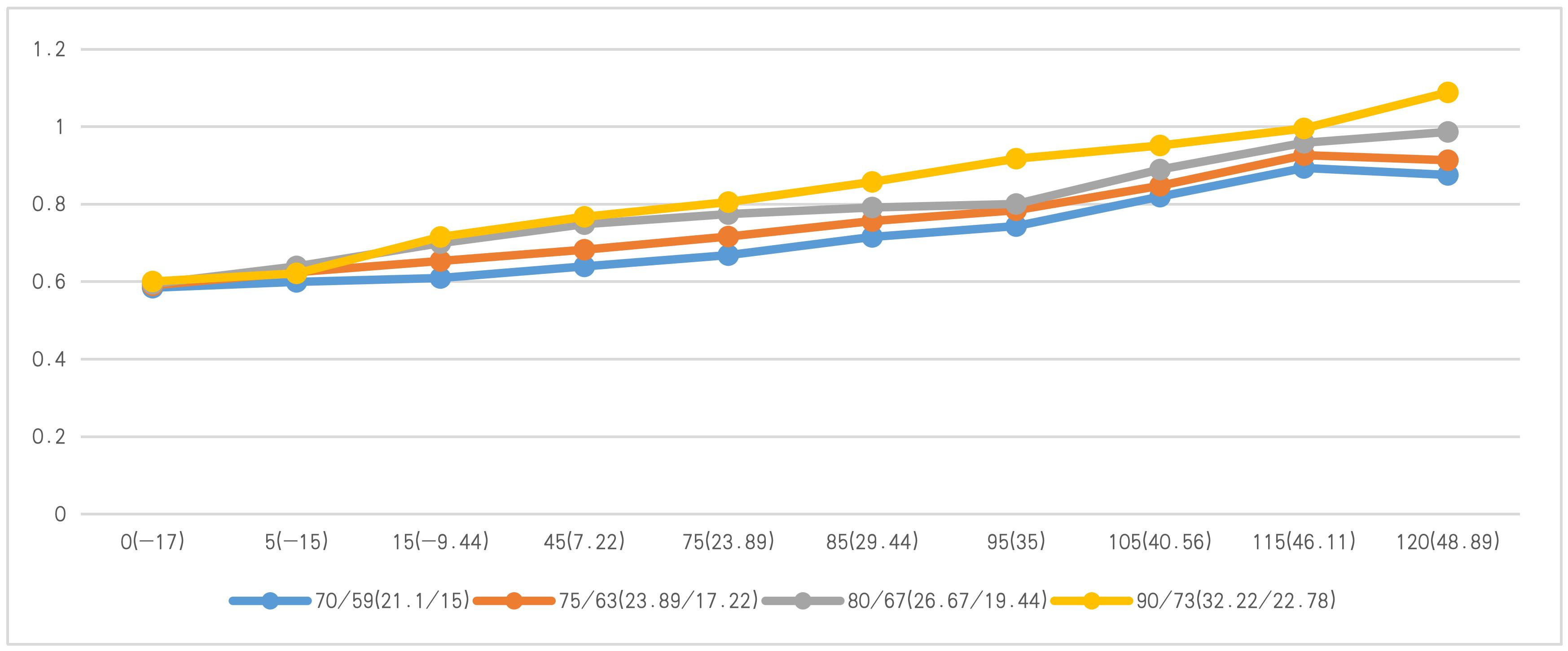

<h1 id="outdoor-unit-model-number-yn012alui17rpd-z2u20101010440">Outdoor Unit Model Number: YN012ALUI17RPD (Z2U20101010440)</h1><p><br></p><h2 id="refrigerant-r-32"><strong>Refrigerant: R-32</strong></h2><p><br></p><h2 id="cooling-chart"><strong>Cooling Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102819-953d337c-6a77-4561-9dfc-43d1d2d11809-yn012alui17rpd_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-bordered fr-dib"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102819-189c7625-24b9-4c0e-883c-37f0c54621c1-yn012alui17rpd_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="heating-chart"><strong>Heating Chart</strong></h2><p><strong>Active Pressure:</strong> Compressor running outside<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102819-c2365347-676e-47f7-8409-4cdad8e7dfeb-yn012alui17rpd_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102819-cd89cc93-1d66-49dc-9c27-1a1f675a6458-yn012alui17rpd_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="isPasted"><strong>System Pressure Table</strong></h2><p><strong>Static Pressure:</strong> Compressor not running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102912-3a30afe1-f391-4271-a6ae-af7c423bc254-r32_system_pressure_table.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p>

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside.

YN012ALUI17RPD

PT (Pressure-Temperature) Charts
