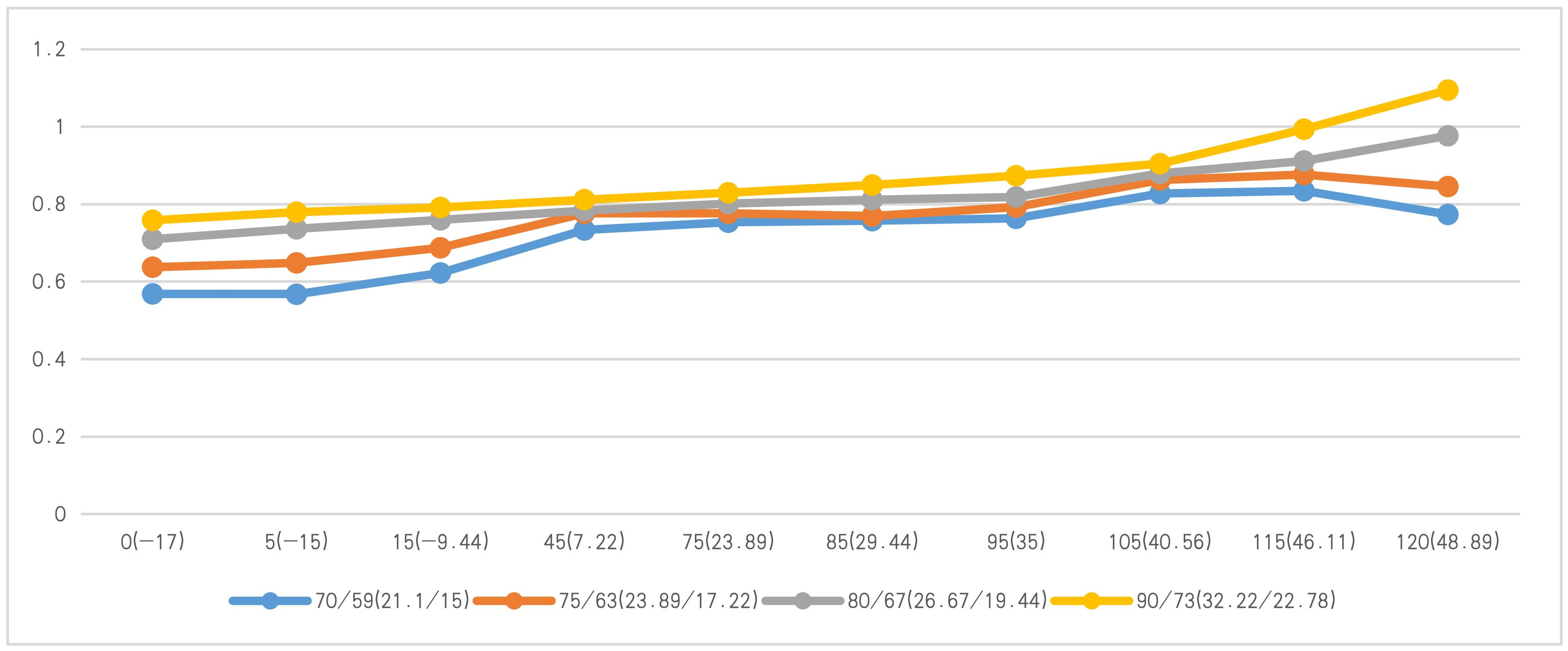

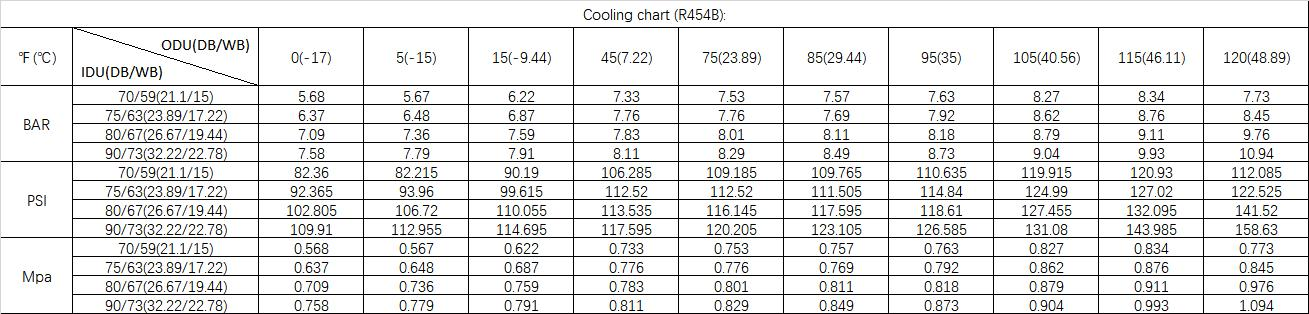

<h1 id="outdoor-unit-model-number-yn012alsi24rpg-z2u20101009719">Outdoor Unit Model Number: YN012ALSI24RPG (Z2U20101009719)</h1><p><br></p><h2 id="refrigerant-r-454b"><strong>Refrigerant: R-454B</strong></h2><h2 id><br></h2><h2 id="cooling-chart"><strong>Cooling Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102915-75648604-164d-4b75-abd2-334b030645f2-yn012alsi24rpg_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102915-d0105c60-3701-4b6a-af33-02912ff53a1a-yn012alsi24rpg_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="heating-chart"><strong>Heating Chart</strong></h2><p id="isPasted"><strong>Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102915-677527c0-c725-46e2-8c45-f17000f80b94-yn012alsi24rpg_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102915-1957e835-fce6-44cc-8961-53afc6051782-yn012alsi24rpg_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="system-pressure-table"><strong>System Pressure Table</strong></h2><p><strong>Static Pressure:&#xA0;</strong>Compressor not running outside<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102915-3ce8f325-e7d4-41a7-93a6-8fff9be44969-r454b_pressure_table.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102915-e4eedb99-d5b2-4642-9571-46c24842a425-r454b_pressure_table_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p>

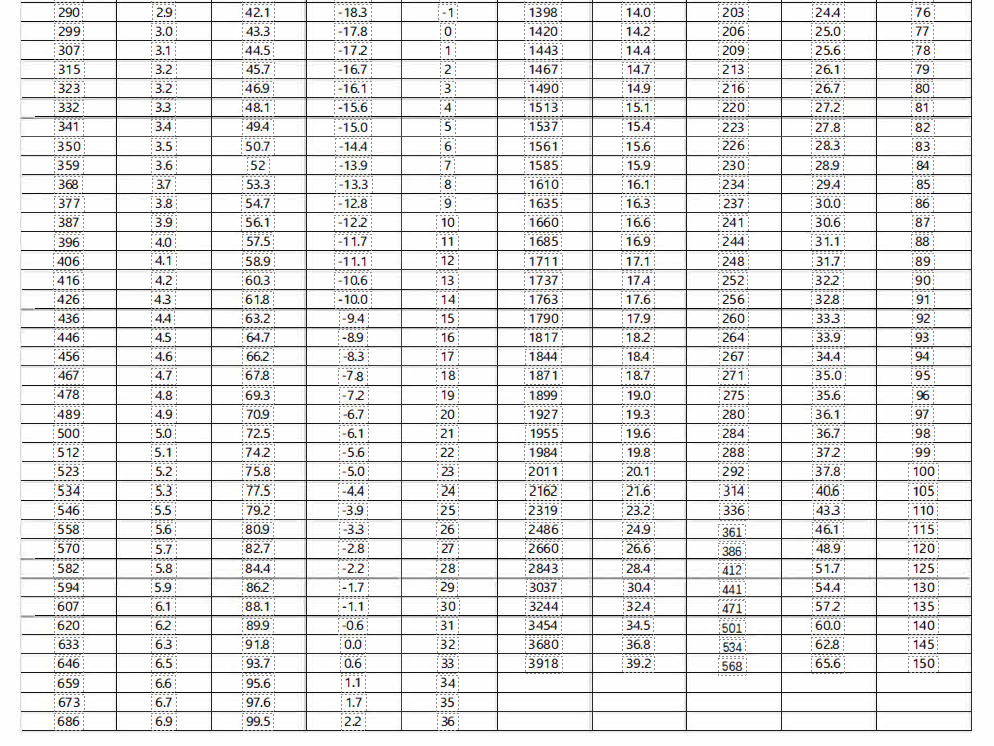

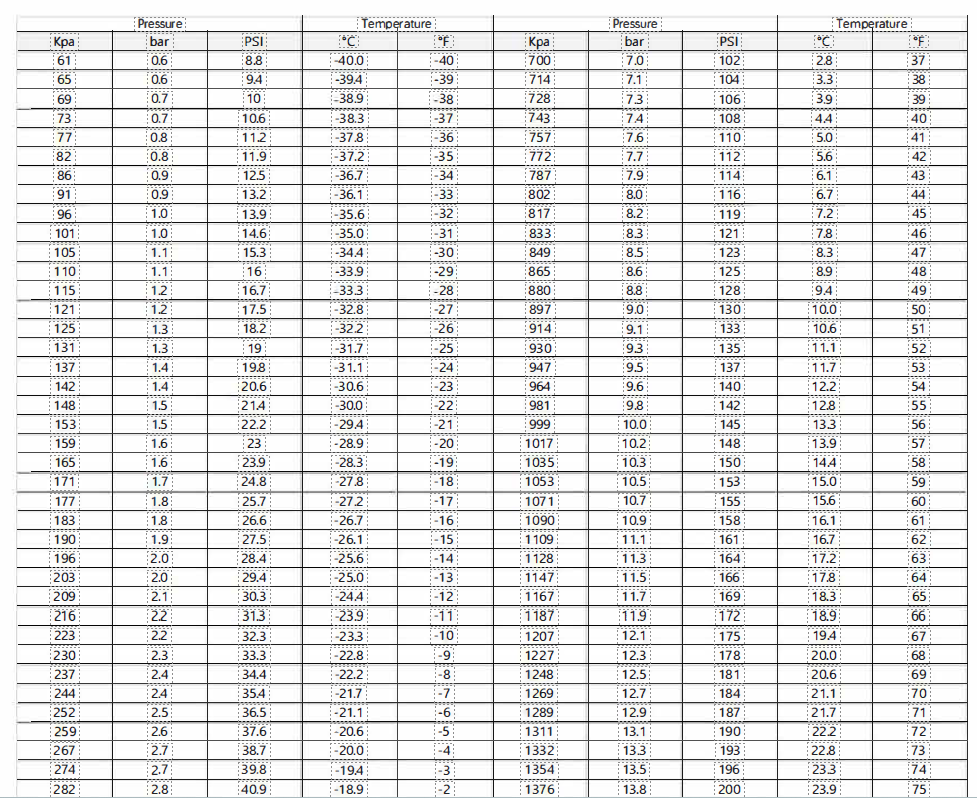

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside.

YN012ALSI24RPG

PT (Pressure-Temperature) Charts
