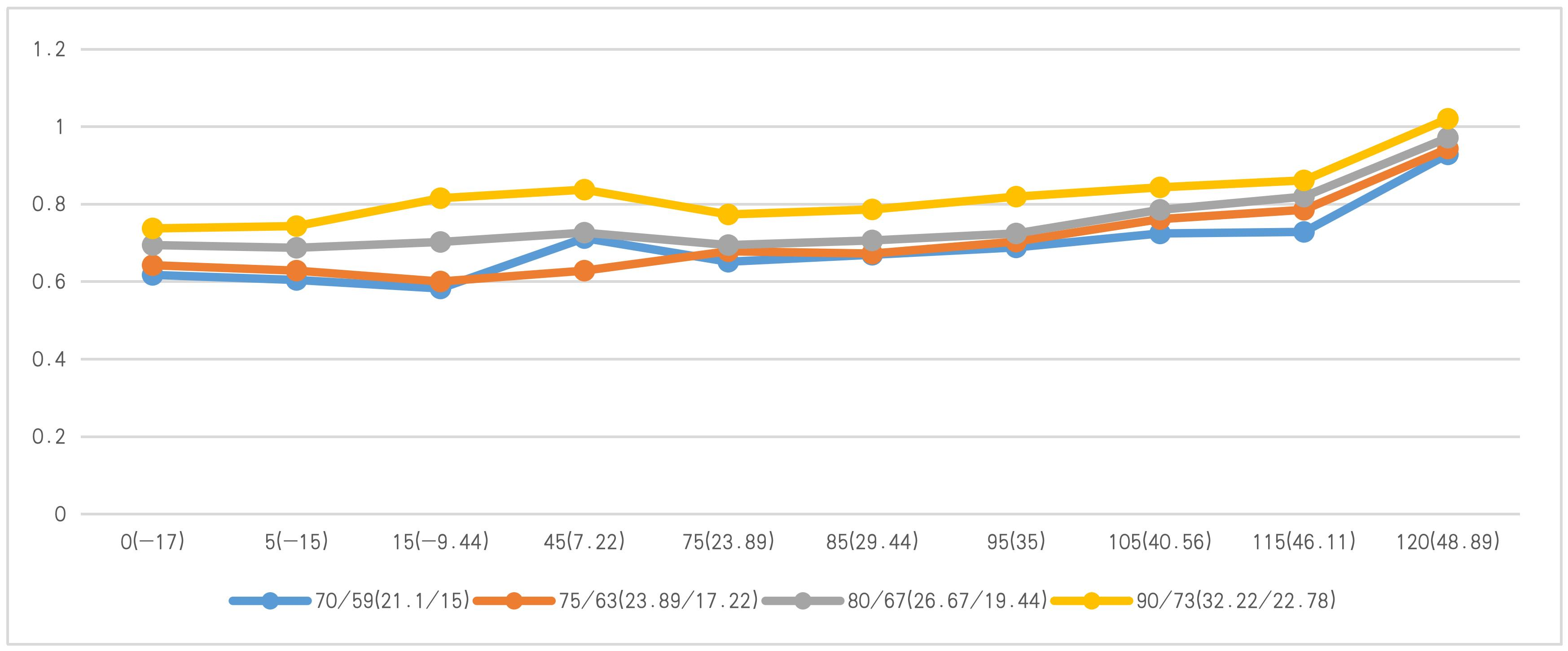

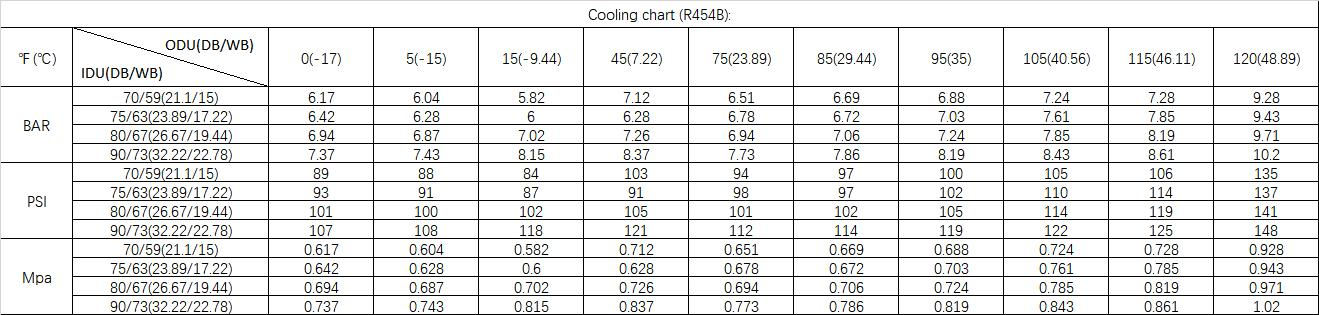

<h1 id="outdoor-unit-model-number-yn012alsi20rpf-z2u20101009647">Outdoor Unit Model Number: YN012ALSI20RPF (Z2U20101009647)</h1><p><br></p><h2 id="refrigerant-r-454b"><strong>Refrigerant: R-454B</strong></h2><p><br></p><h2 id="cooling-chart"><strong>Cooling Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102913-48969478-fb95-48e8-ae69-1beabf8bec24-yn012alsi20rpf_cooling_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102913-9497b369-e8f5-4bf3-99cd-6e95c50be121-yn012alsi20rpf_cooling_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="heating-chart"><strong>Heating Chart</strong></h2><p><strong>Active Pressure:&#xA0;</strong>Compressor running outside</p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102913-47caadeb-1114-40eb-a8d9-27c2efae347b-yn012alsi20rpf_heating_chart_1.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102913-7b1224e9-2781-4e4f-b641-db2a8d4f0e8a-yn012alsi20rpf_heating_chart_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p><p><br></p><h2 id="system-pressure-table"><strong>System Pressure Table</strong></h2><p id="isPasted"><strong>Static Pressure:&#xA0;</strong>Compressor not running outside<strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102913-4ecc6e75-e68a-4142-a14b-ecac13b91c76-r454b_pressure_table.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></strong><img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2025102913-17a01a90-b6a2-4bc9-86a6-f327d8be578b-r454b_pressure_table_2.png" style="width: 1000px;" class="fr-fic fr-dib fr-bordered"></p>

Active Pressure: Compressor running outside. Active Pressure: Compressor running outside. Static Pressure: Compressor not running outside

YN012ALSI20RPF

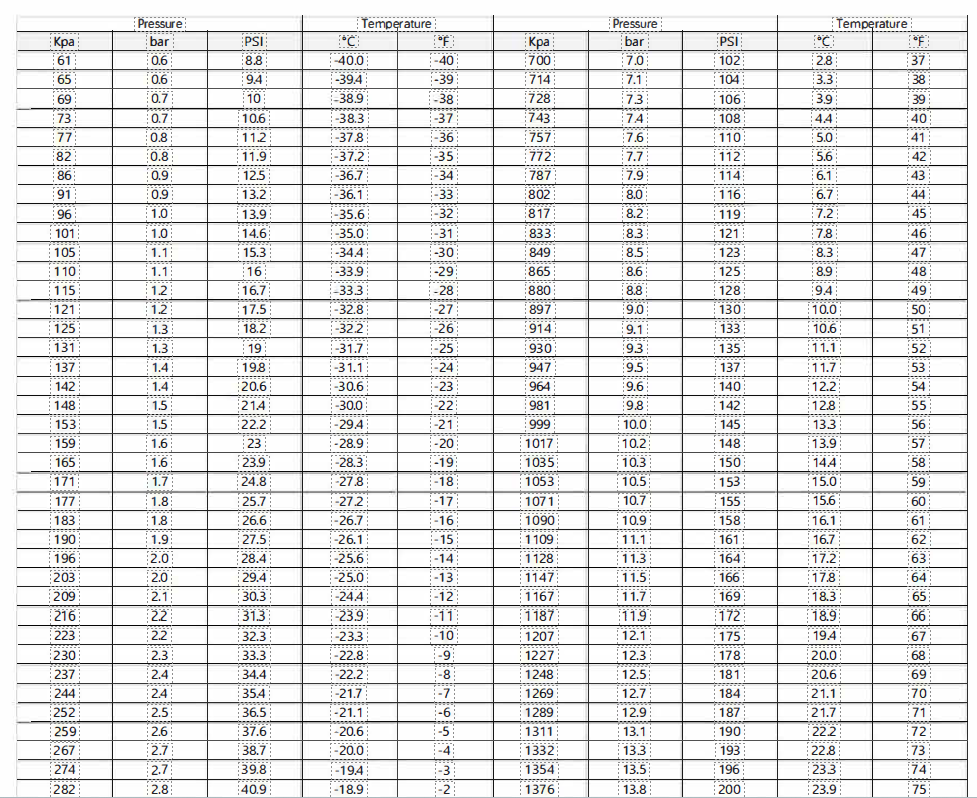

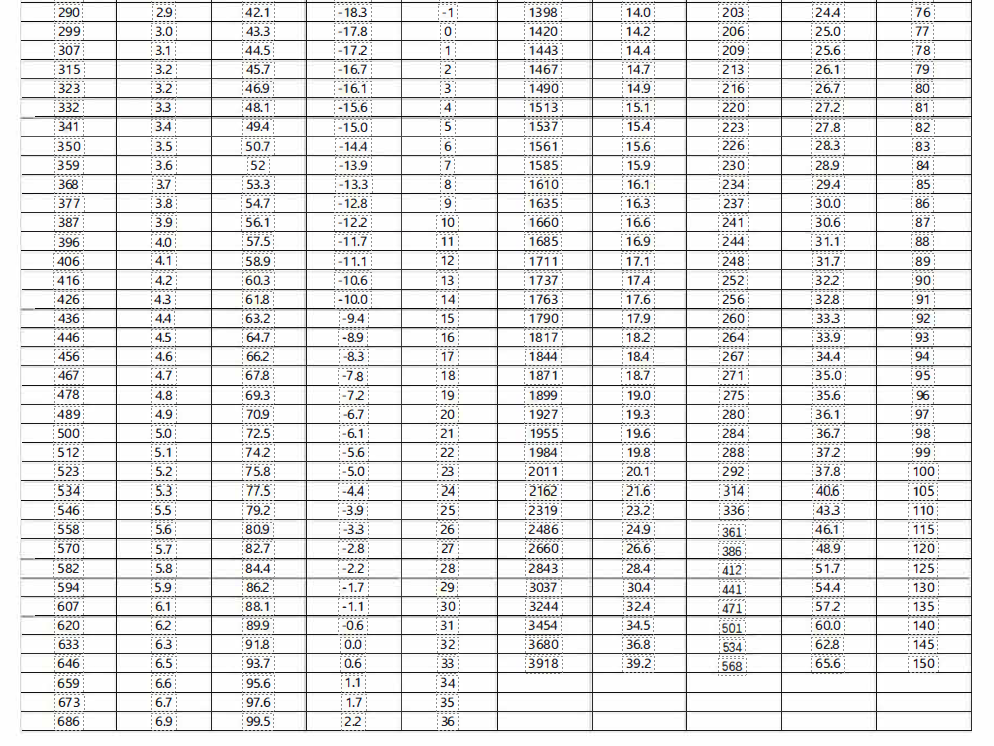

PT (Pressure-Temperature) Charts
