Quantum Hyperformance High-Wall (WYT-25) OverviewUpdated 3 days ago

Introduction

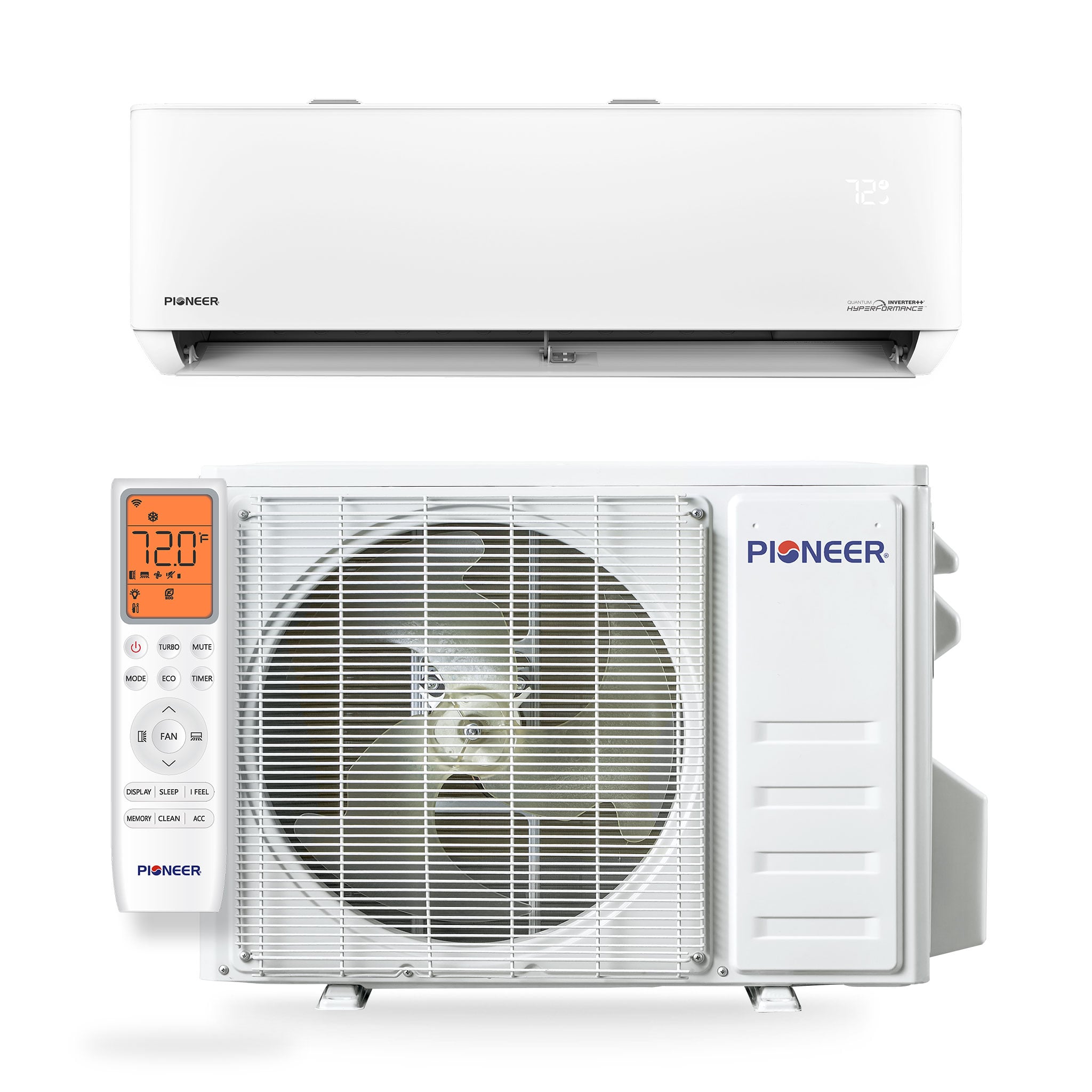

The Quantum Hyperformance High-Wall (WYT-25) heat pump delivers powerful year-round comfort, even in temperatures as low as -22°F (-30°C). With up to 88% heating capacity retention and a 25-SEER2 rating, they offer high efficiency and lower energy costs. The Hyperformance is factory-precharged with environmentally-friendly R-454B refrigerant.

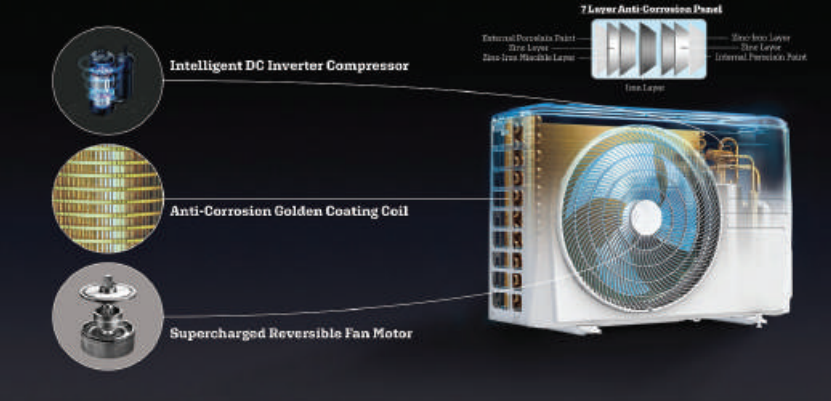

Dependably Durable, yet Still Sophisticated

At the heart of the system is the variable speed DC inverter compressor, equipped with its own belt heater for running stable in frigid conditions. The power control board and intelligent fan motor can run in reverse at time of shutdown, blowing any drawn-in debris back out of the coil and keeping the internals as clean as the day it was installed. The galvanized steel panels and anti-corrosion coil are capable of withstanding more than 15,000 hours of salty air or water exposure.

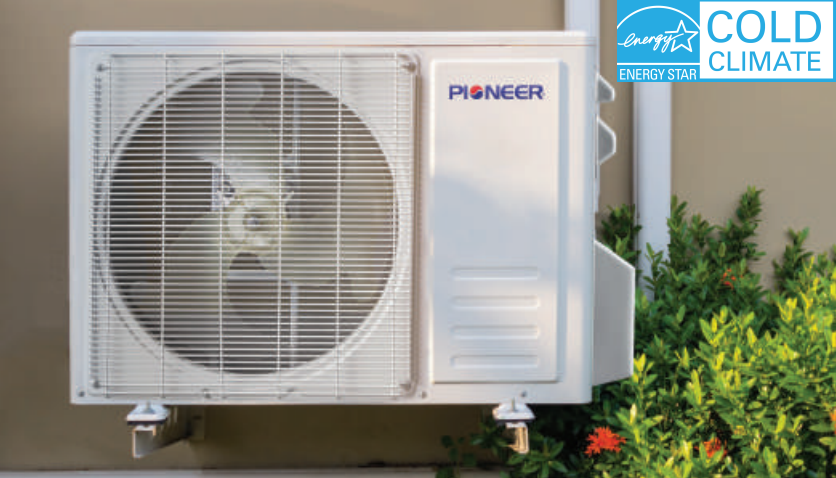

Energy-Star Cold-Climate Certified for Efficiency

Carrying both a primary Energy-Star and Energy-Star Cold-Climate certification, individuals can be sure that this new system will qualify for all of the best state and local rebates all across the nation. This system will help owners save even more over time and has a complete year-round heating and cooling system that pays for itself in no time.

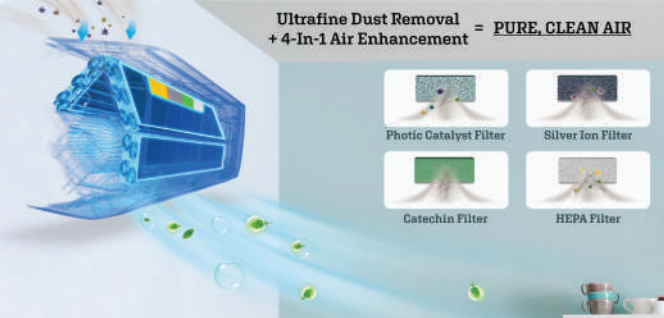

High-Density Air Particle Filtration

Breathe easy with significantly improved air quality, thanks to the combination of an ultrafine screen filter plus the 4-in-1 supplemental filter. Capture and eliminate pollen, molds, bacteria, and other viruses while deodorizing the returning air all at the same time. When combined with the coil frost/defrosting cycle (which strips the fins of built-up debris and drains away), users can be sure that both the air they breathe and the air conditioner itself will remain totally clean and clear of harmful airborne contaminants.

Wi-Fi Controllable via Free App

Unlock the full potential of this system by activating the wireless internet control module included with the purchase. In 2 minutes, users will be up and running, and ready to set custom schedules or fully control their system from across the world. Integrate the system with a Smart Home setup, thanks to the numerous integrations available from the Pioneer Airlink app, such as Amazon Alexa, Google Assistant, and Apple Siri.

Full System Model Numbers

WYT009GLSI25RH, WYT012GLSI25RH, WYT018GLSI25RH, and WYT024GLSI25RH

Indoor Units

WT009GLSI25HLH, WT012GLSI25HLH, WT018GLSI25HLH, and WT024GLSI25HLH

Outdoor Units

YN009GLSI25RPH, YN012GLSI25RPH, YN018GLSI25RPH, and YN024GLSI25RPH

For more information, see this technical brochure.

System Components

These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.

Note: Select a service disconnect meeting the requirements of the local, regional, and national codes.

Accessories & Components

The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.

Use all of the installation parts and accessories to successfully install the system.

Note: Items with an asterisk * may be sold separately and are sometimes supplied by the installer. Therefore, some items could differ in appearance, shape, or length, depending on the particular installation.

Quantity	Name	Appearance
1	Installation & User manual
1	Warranty card
1	Communication/Signal cable*
1	Insulated copper pipe*
1	Remote controller
1	Remote controller holder
2	Remote controller batteries
1	Indoor unit mounting plate (Pre-attached to air handler rear)
1	Set of mounting plate screws
1	Plastic drain joint plug for the outdoor unit (Use only for wall-mounted condensers)
1	Condensate drain hose*
1	Wrapping tape*
1	Wall-hole packing sealant*
1	Wall sleeve*
1	Allen wrench for opening service valves
