Quantum Ultra High-Wall (WYT-24) OverviewUpdated 10 days ago
Introduction

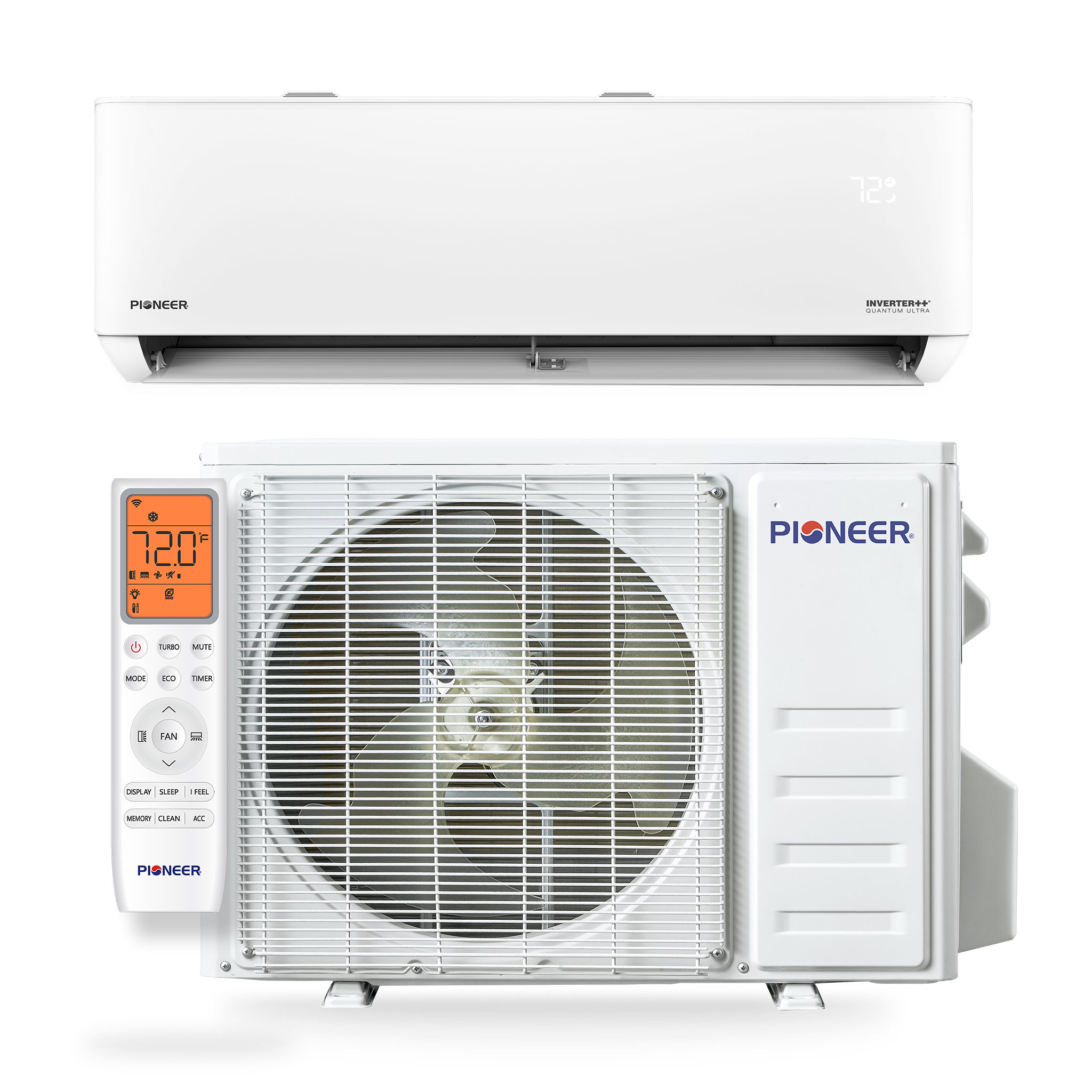

The Quantum Ultra High-Wall series (WYT-24) is a ductless wall-mounted mini split system with various capacities and efficiency ratings, making it easy to install and providing reliable single-zone comfort. This series is factory-precharged with environmentally-friendly R-454B refrigerant.
A Year-Round Master of All Modes
The mini split comes with a convenient remote controller that conveys cooling, heating, dehumidification, and ventilation requests. The automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.
Step Up to World-Class Comfort with Inverter++
With full Energy-Star certification, this series offers much quieter indoor airflow output. This system's upgraded heat pump technology allows ultra low-ambient heating in cold-climate temperatures as low as -13°F (-25°C).
Full System Model Numbers
WYT009ALSI24RL, WYT012ALSI24RL, WYT009GLSI24RL, WYT012GLSI24RL, WYT018GLSI24RL, and WYT024GLSI24RL
Indoor Units
WT009ALSI24HLG, WT012ALSI24HLG, WT009GLSI24HLG, WT012GLSI24HLG, WT018GLSI24HLG, and WT024GLSI24HLG
Outdoor Units
YN009ALSI24RPG, YN012ALSI24RPG, YN009GLSI24RPG, YN012GLSI24RPG, YN018GLSI24RPG, and YN024GLSI24RPG
For more information, see this technical brochure.
System Components
These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.
No. | Description |
|---|---|
| 1 | Wall mounting plate |
| 2 | Air filter |
| 3 | Front panel |
| 4 | LED display |
| 5 | Controller signal receiver |
| 6 | Indoor unit rating label |
| 7 | Terminal block cover |
| 8 | Emergency (Manual) button |
| 9 | Air deflector and flap |
| 10 | Air outlet |
| 11 | Air outlet grille |
| 12 | Outdoor unit nameplate |
| 13 | Terminal block cover |
| 14 | Valve protection cover |
| 15 | Gas (Suction) line valve |
| 16 | Liquid line valve |
