Dimensions & Weights for Quantum Ultra High-Wall SystemsUpdated 20 days ago
This article provides the dimensions and weights for Quantum Ultra High-Wall (WYT-24) systems.
Full System Model Numbers
Indoor Units
| Indoor Units | |||

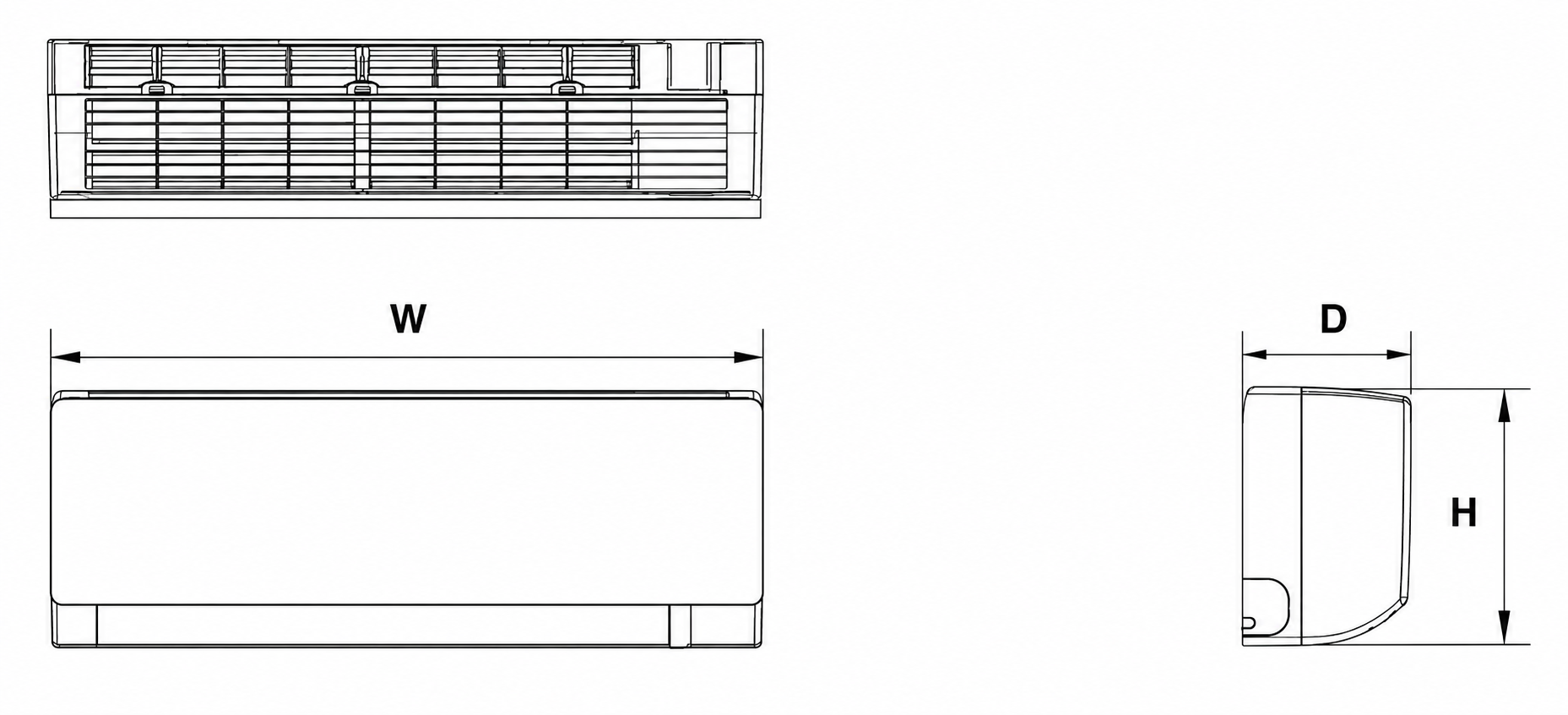

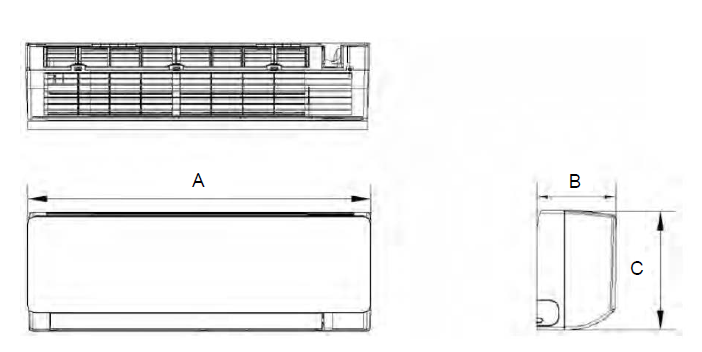

| Models | Dimensions (inches/mm) | ||
| A | B | C | |
| WT009ALSI24HLG WT009GLSI24HLG | 32-1/4 in | 7-3/4 in | 12 in |
| 820 mm | 195 mm | 306 mm | |
| WT012ALSI24HLG WT012GLSI24HLG | 36-1/4 in | 7-3/4 in | 12 in |
| 920 mm | 195 mm | 306 mm | |
| WT018GLSI24HLG WT024GLSI24HLG | 43-1/4 in | 8-3/4 in | 13 in |
| 1,097 mm | 222 mm | 332 mm | |
| Indoor Units | ||
| Models | Weights (lbs/kg) | |
| Net Unit | Shipping | |
| WT009ALSI24HLG WT009GLSI24HLG | 20.7 lbs | 25.1 lbs |
| 9.4 kg | 11.4 kg | |
| WT012ALSI24HLG WT012GLSI24HLG | 23.1 lbs | 30.9 lbs |
| 10.5 kg | 14 kg | |
| WT018GLSI24HLG WT024GLSI24HLG | 30.9 lbs | 35.3 lbs |
| 14 kg | 16 kg | |
Outdoor Units
| Outdoor Units | ||||||||

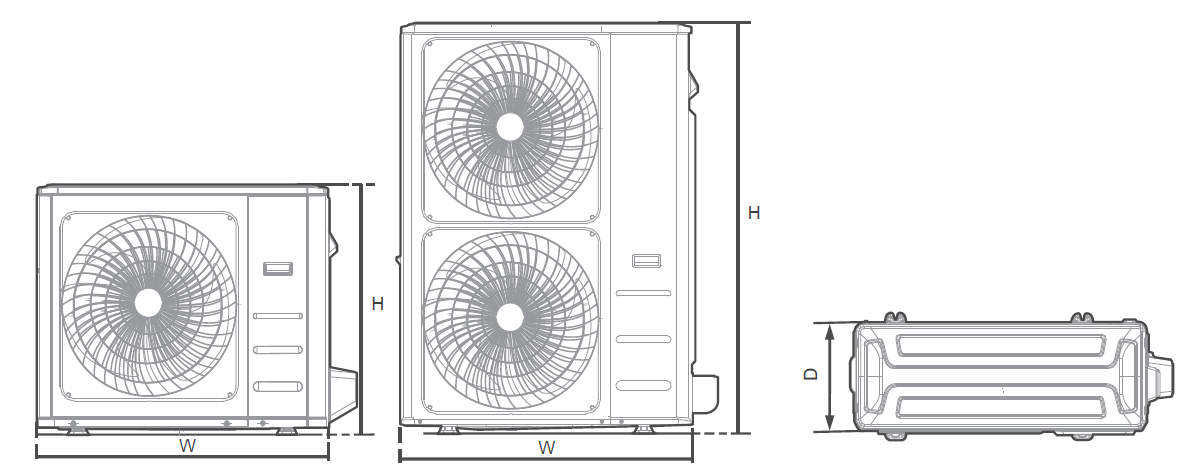

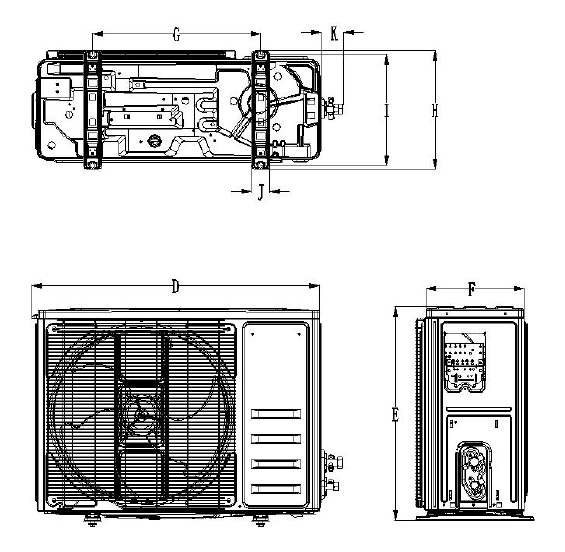

| Models | Dimensions (inches/mm) | |||||||
| D | E | F | G | H | I | J | K | |
| YN009ALSI24RPG YN009GLSI24RPG YN012ALSI24RPG YN012GLSI24RPG | 28-3/4 in | 21-1/2 in | 10 in | 17-1/8 in | 12 in | 11-1/4 in | 1-7/8 in | 2-1/4 in |
| 730 mm | 546 mm | 253 mm | 434 mm | 305 mm | 285 mm | 48 mm | 58 mm | |
| YN018GLSI24RPG | 33-1/4 in | 27-1/2 in | 12-7/8 in | 23-1/8 in | 14-3/4 in | 13-3/4 in | 2-1/8 in | 2-1/4 in |
| 845 mm | 699 mm | 326 mm | 586 mm | 375 mm | 348 mm | 55 mm | 58 mm | |
| YN024GLSI24RPG | 35-7/8 in | 31-5/8 in | 14-1/8 in | 23-7/8 in | 16-5/8 in | 15-3/8 in | 2-3/8 in | 2-1/2 in |
| 910 mm | 803 mm | 359 mm | 607 mm | 421 mm | 390 mm | 60 mm | 63 mm | |
| Outdoor Units | ||
| Models | Weights (lbs/kg) | |
| Net Unit | Shipping | |
| YN009ALSI24RPG | 53.6 lbs | 60.2 lbs |
| 24.3 kg | 27.3 kg | |
| YN009GLSI24RPG | 52.7 lbs | 59.3 lbs |
| 23.9 kg | 26.9 kg | |
| YN012ALSI24RPG YN012GLSI24RPG | 58.4 lbs | 65 lbs |
| 26.5 kg | 29.5 kg | |
| YN018GLSI24RPG | 90.4 lbs | 99.2 lbs |
| 41 kg | 45 kg | |
| YN024GLSI24RPG | 104.7 lbs | 113.5 lbs |
| 47.5 kg | 51.5 kg | |
