Diamante Essenza High-Wall (WYT-17) OverviewUpdated 4 days ago
Introduction

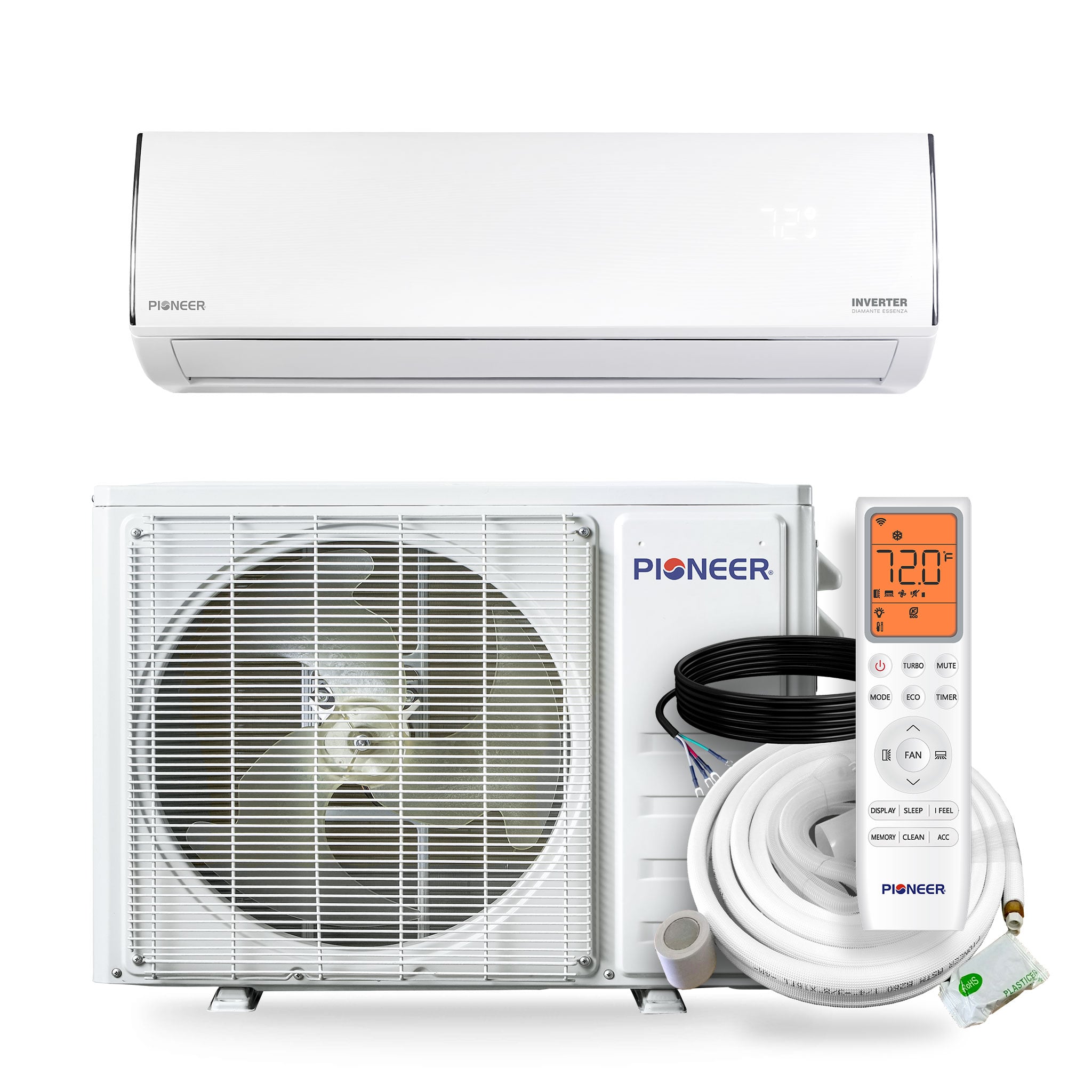

The Diamante Essenza High-Wall (WYT-17) is a high-efficiency, entry-level ductless mini split system designed to deliver reliable year-round heating and cooling with an average 17-SEER2 rating.
Ideal for bedrooms, home offices, and small spaces, it features whisper-quiet operation, a compact wall-mounted indoor unit, and a factory pre-charged outdoor condenser with R-32 refrigerant.
The inverter technology ensures consistent comfort while reducing energy waste. The system includes a 16-foot lineset, drain hose, remote control, and essential installation components. Maintenance is simple with front-access washable filters.
3D Dual-Swing Airflow Output
Take advantage of automatic dual-directional airflow louvers, which are motorized for both left-right and up-down swings, to perfectly send airflow to all four corners of the room.
131°F High Temperature Self-Cleaning
This series comes equipped with a self-clean mode, utilizing a four-stage sanitization cycle to flush out buildup and ensure smooth operation for years to come.
Easy Maintenance Slide-Out Filters
Keeping the room air clean and dust-free is easy. Simply remove the internal air filters and give them a cleaning as needed. The filters are washable and re-usable.

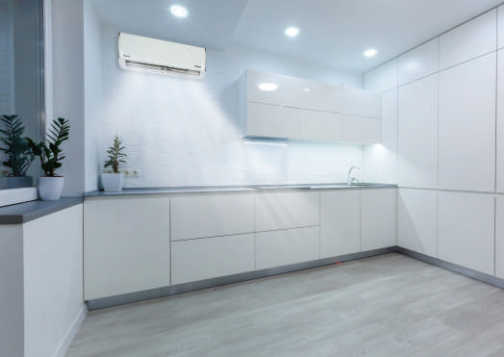

Sleek and Attractive Panel Design
This series offers an elegant gloss finish that can suit nearly any interior layout and decor. An easy-to-read LED display and curved front completes the look.
Full System Model Numbers
WYT012ALUI17RL, WYT012GLUI17RL, WYT018GLUI17RL, WYT024GLUI17RL, and WYT036GLUI17RL
Indoor Units
WT012ALUI17HLD, WT012GLUI17HLD, WT018GLUI17HLD, WT024GLUI17HLD, and WT036GLUI17HLD
Outdoor Units
YN012ALUI17RPD, YN012GLUI17RPD, YN018GLUI17RPD, YN024GLUI17RPD, and YN036GLUI17RPD
For more information, see this technical brochure.
System Components
These illustrations are for explanatory purposes. The actual shape of the indoor unit may be slightly different. The shape shall prevail.
No. | Description |
|---|---|
| 1 | Wall mounting plate |
| 2 | Front panel |
| 3 | LED display |
| 4 | Controller signal receiver |
| 5 | Indoor unit rating label |
| 6 | Terminal block cover |
| 7 | Emergency (Manual) button |
| 8 | Air deflector and flap |
| 9 | Air outlet |
| 10 | Air filter |
| 11 | Air outlet grille |
| 12 | Outdoor unit nameplate |
| 13 | Terminal block cover |
| 14 | Valve protection cover |
| 15 | Gas (Suction) line valve |
| 16 | Liquid line valve |
Accessories & Components
The system comes with the following accessories. This a general list of the package contents. The included items may vary slightly depending on the model.
Use all of the installation parts and accessories to successfully install the system.
| Quantity | Name | Appearance |
|---|---|---|
| 1 | Installation & User manual |  |
| 1 | Warranty card |  |
| 1 | Communication cable (16 foot) |  |
| 1 | Insulated copper pipe (16 foot) |  |
| 1 | Remote controller |  |
| 1 | Remote controller holder |  |
| 2 | Remote controller batteries |  |
| 1 | Indoor unit mounting plate |  |
| 1 | Set of mounting plate screws |  |
| 1 | Plastic drain joint plug for the outdoor unit (Use only for wall-mounted condensers) |  |
| 1 | Condensate drain hose |  |
| 1 | Wrapping tape |  |
| 1 | Wall-hole packing sealant |  |
| 1 | Wall sleeve |  |
| 1 | Allen wrench for opening service valves |  |
