WYT036GLSI20RL Parts ListUpdated 19 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT036GLSI20RL system. This system is part of the Diamante Pro (WYT-20) series.

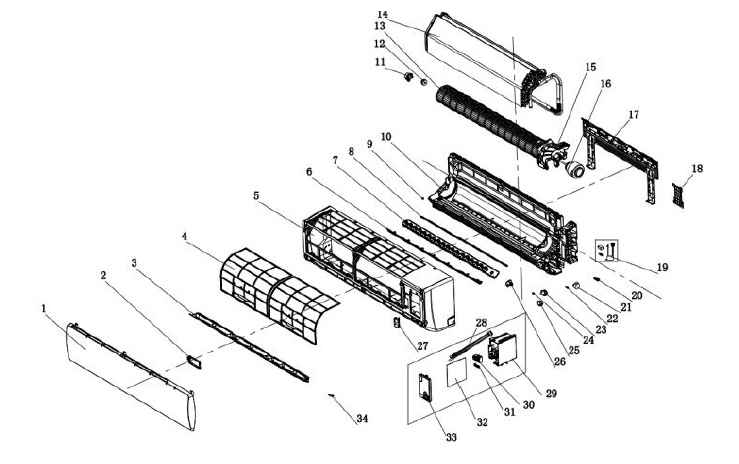

Indoor Unit
Model number: WT036GLSI20HLF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-012022 | Front panel | 1 | |
| 2 | 42003-000001 | Display assembly | 1 | |
| 3 | 41103-000643 | Vane | 1 | |
| 4 | 42008-000239 | Air filter | 2 | |
| 5 | 41106-014054 | Face frame | 1 | |
| 6 | 41103-000645 | Grid guard | 1 | |
| 7 (8, 9, 10 20, 24, 26) | 41102-000609 | Base assembly | 1 | |
| 11 | 41101-000250 | Bearing sleeve | 1 | |
| 12 | 42007-000009 | Bearing mount | 1 | |
| 13 | 42004-000242 | Cross fan | 1 | |
| 14 | 92011-009790 | Evaporator | 1 | |
| 15 | 41108-000203 | Indoor motor cover | 1 | |
| 16 | 22001-000240 | Indoor motor | 1 | |
| 17 | 41109-000084 | Installation plate | 1 | |
| 18 | 41101-000240 | In-and-out pipe fixer | 1 | |
| 19 | / | Anion generator | 1 | |
| 21 | 22001-000360 | Vane motor | 1 | |
| 22 | 41101-000252 | Electric axis | 1 | |
| 23 | / | Step motor box | 1 | |
| 25 | / | Step motor | 1 | |
| 27 | / | Wi-Fi | 1 | |
| 28 | 10104-100022 | Indoor sensor assembly | 1 | |
| 29 | 41105-000427 | Electrical box | 1 | |
| 30 | 11304-100063 | Terminal | 1 | |
| 31 | 42001-000103 | Cable clamp | 1 | |
| 32 | 31101-002320 | Main PCB | 1 | |
| 33 | 41211-000079 | Electrical box cover | 1 | |
| 34 | 41101-000349 | Vane latch | 2 | |
| 35 | 42009-000011 | Drain hose | 1 | Not shown in the Explosion view |
| 36 | A1102-000042 | Packing foam 1 | 1 | |
| A1102-000043 | Packing foam 2 | 1 | ||
| 37 | A1101-017788 | Middle u carton | 1 | |
| 38 | / | Remote control | 1 | |
| 39 | 31102-000109 | Display PCB | 1 | |
| 40 | 22007-000104 | Power supply cord | 1 | |
| 41 | 22007-000246 | Indoor & outdoor connect cord | 1 |

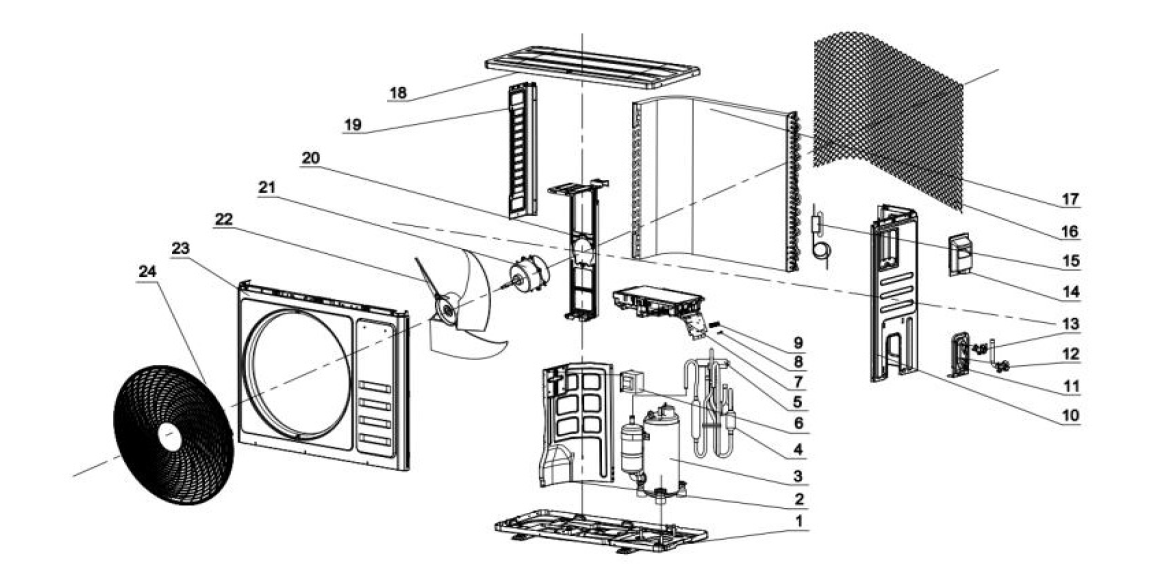

Outdoor Unit
Model number: YN036GLSI20RPF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000530 | Base | 1 | |
| 2 | 41208-001049 | Partition plate | 1 | |
| 3 | 95017-000031 | Compressor | 1 | |
| 4 | 92007-021234 | 4-way valve assembly | 1 | |
| 5 | 92008-000498 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003277 | Outdoor control assembly | 1 | |
| 8 | 42001-000038 | Clamp 1 | 1 | |
| 42001-000036 | Clamp 2 | 1 | ||
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000800 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001045 | 3-way valve | 1 | |
| 13 | 92007-001050 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-018646 | Capillary assembly | 1 | |
| 16 | 42011-000419 | Back grille | 1 | |
| 17 | 92011-010869 | Condenser | 1 | |
| 18 | 41207-000048 | Top cover | 1 | |
| 19 | 41205-000651 | Support | 1 | |
| 20 | 41203-000115 | Outdoor motor supporter | 1 | |
| 21 | 22001-000147 | Outdoor motor | 1 | |
| 22 | 42004-000249 | Propeller fan | 1 | |
| 23 | 41206-000076 | Front plate | 1 | |
| 24 | 42011-000031 | Fan guard | 1 | |
| 25 | A1201-012669 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000086 | Base foam | 1 | |
| 27 | A1202-000085 | Cover foam | 1 | |
| 28 | 10104-100058 | Sensor | 1 | |
| 29 | 92009-000171 | Connect pipe assembly 1 | 1 | |
| 92009-000628 | Connect pipe assembly 2 | 1 |
