WYT030GLUI20RL Parts ListUpdated an hour ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT030GLUI20RL system. This system is part of the Diamante Essenza High-Wall (WYT-20U) series.

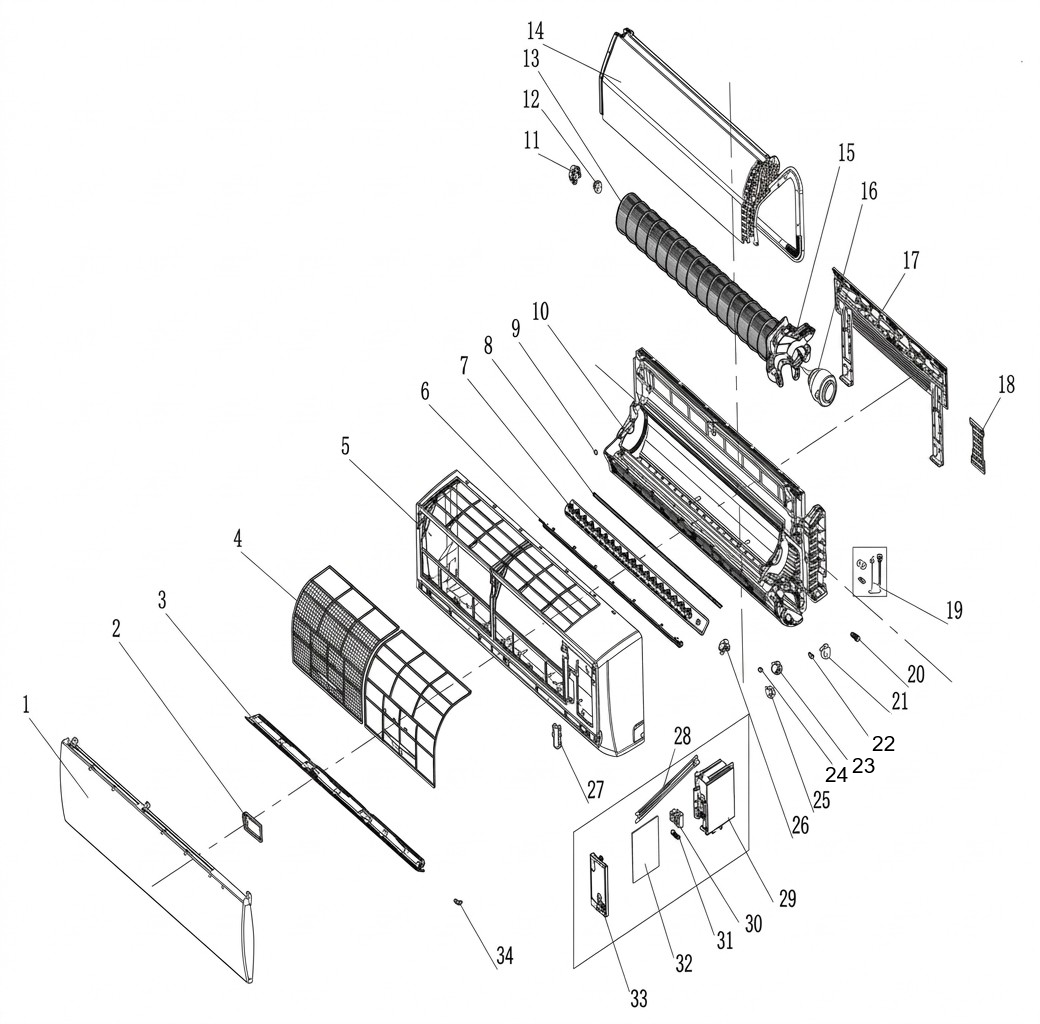

Indoor Unit
Model number: WT030GLUI20HLE
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-001452 | Front Panel | 1 | |
| 2 | 42003-000001 | Display PCB Box | 1 | |
| 3 | 41103-000644 | Vane | 1 | |
| 4 | 42008-000230 | Air Filter | 1 | |
| 5 | 41106-014055 | Middle Support | 1 | |
| 6 | / | / | / | |
| 7 | 41101-000528 | Cardboard | 1 | |
| 8 | 41101-000529 | Auto Vertical Vane Connector | 1 | |
| 9 | 42011-000303 | Vane Bush | 1 | |
| 10 | 41102-000578 | Base | 1 | |
| 11 | 41101-000250 | Bearing Mount Cover | 1 | |
| 12 | 42007-000009 | Bearing Mount | 1 | |
| 13 | 42004-000242 | Blower Wheel | 1 | |
| 14 | K0304-116254 | Evaporator | 1 | |
| 15 | 41108-000203 | Fan Motor Cover | 1 | |
| 16 | 22001-000726 | Fan Motor | 1 | |
| 17 | 41109-000084 | Mounting Plate | 1 | |
| 18 | 41101-000240 | Pipe Fixer | 1 | |
| 19 | / | / | / | |
| 20 | 92012-000185 | Drainpipe Plug | 1 | |
| 21 | 22001-000360 | Step Motor | 1 | |
| 22 | 41101-000252 | Electrical Protection Shaft | 1 | |
| 23 | / | Step Motor Box | 1 | |
| 24 | 42011-000303 | Shaft Sleeve | 1 | |
| 25 | 29901-000078 | Step Motor | 1 | |
| 26 | 41101-000374 | Vertical Vane | 1 | |
| 27 | / | Wi-Fi Assembly | 1 | |
| 28 | 10104-100022 | Thermistor | 1 | |
| 29 | 41105-000427 | Electrical Box | 1 | |
| 30 | 11304-100063 | Terminal | 1 | |
| 31 | 42001-000103 | Clamp | 1 | |
| 32 | G0301-125008 | Main PCB | 1 | |
| 33 | 41211-000079 | Electrical Box Cover | 1 | |
| 34 | 41101-000349 | Wind Deflector Bolt | 2 | |
| 35 | 42009-000011 | Extrusion Tube | 1 | |
| 36 | / | Power Supply Cord | 0 | |
| 37 | G0401-110969 | Remote Control | 1 | |
| 38 | L0102-146593 | Indoor Carton | 1 | |
| 39 | A1102-000042 | Left Foaming | 1 | |
| 40 | A1102-000043 | Left Foaming | 1 |

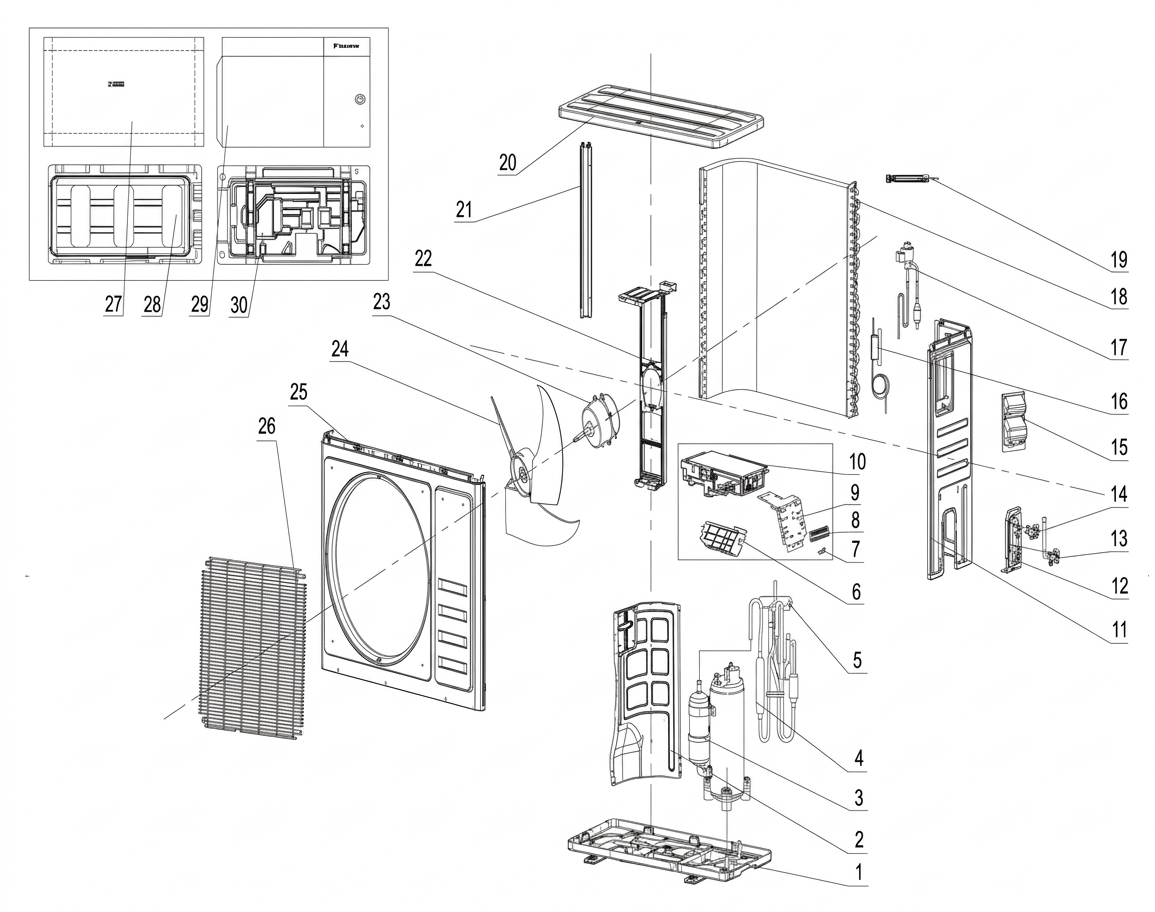

Outdoor Unit
Model number: YN030GLUI20RPE
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000629 | Base | 1 | |
| 2 | 41208-001049 | Partition Plate | 1 | |
| 3 | 92014-001151 | Compressor and Accessories | 1 | |
| 4 | K0206-113449 | 4-Way Valve Assembly | 1 | |
| 5 | K0103-110337 | 4-Way Valve | 1 | |
| 6 | 41211-000123 | Baffle | 1 | |
| 7 | 42001-000038 | Clamp | 2 | |
| 42001-000036 | Clamp | 2 | ||
| 8 | 11304-100117 | Terminal | 1 | |
| 9 | 41211-000042 | Electrical Fixing Board | 1 | |
| 10 | G0301-124955 | PCB Assembly | 1 | |
| 11 | 41205-000801 | Right Side Plate | 1 | |
| 12 | 41204-000018 | Valve Supporter | 1 | |
| 13 | 92007-001045 | Cut-Off Valve Assembly | 1 | |
| 14 | 92007-001050 | Valve Assembly | 1 | |
| 15 | 41201-000106 | Safety Cover | 1 | |
| 16 | / | / | / | |
| 17 | K0103-110523 | Electronic Expansion Assembly | 1 | |
| 18 | K0304-116307 | Condenser Component | 1 | |
| 19 | 10104-100058 | Thermistor | 1 | |
| 20 | H0105-110036 | Top Cover | 1 | |
| 21 | 41205-000217 | Left Side Plate | 1 | |
| 22 | 41203-000115 | Fan Motor Bracket | 1 | |
| 23 | 22001-000643 | Fan Motor | 1 | |
| 24 | 42004-000249 | Propeller Fan | 1 | |
| 25 | 41206-000076 | Front Panel | 1 | |
| 26 | 42011-000031 | Air Outlet Grille | 1 | |
| 27 | L0106-110153 | Packaging Base | 1 | |
| 28 | L0501-110132 | External Packaging Foam | 1 | |
| 29 | L0102-146598 | Package Carton | 1 | |
| 30 | L0501-110134 | External Packaging Foam | 1 |
