WYT024GLUI20RL Parts ListUpdated 18 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT024GLUI20RL system. This system is part of the Diamante Essenza High-Wall (WYT-20U) series.
Indoor Unit

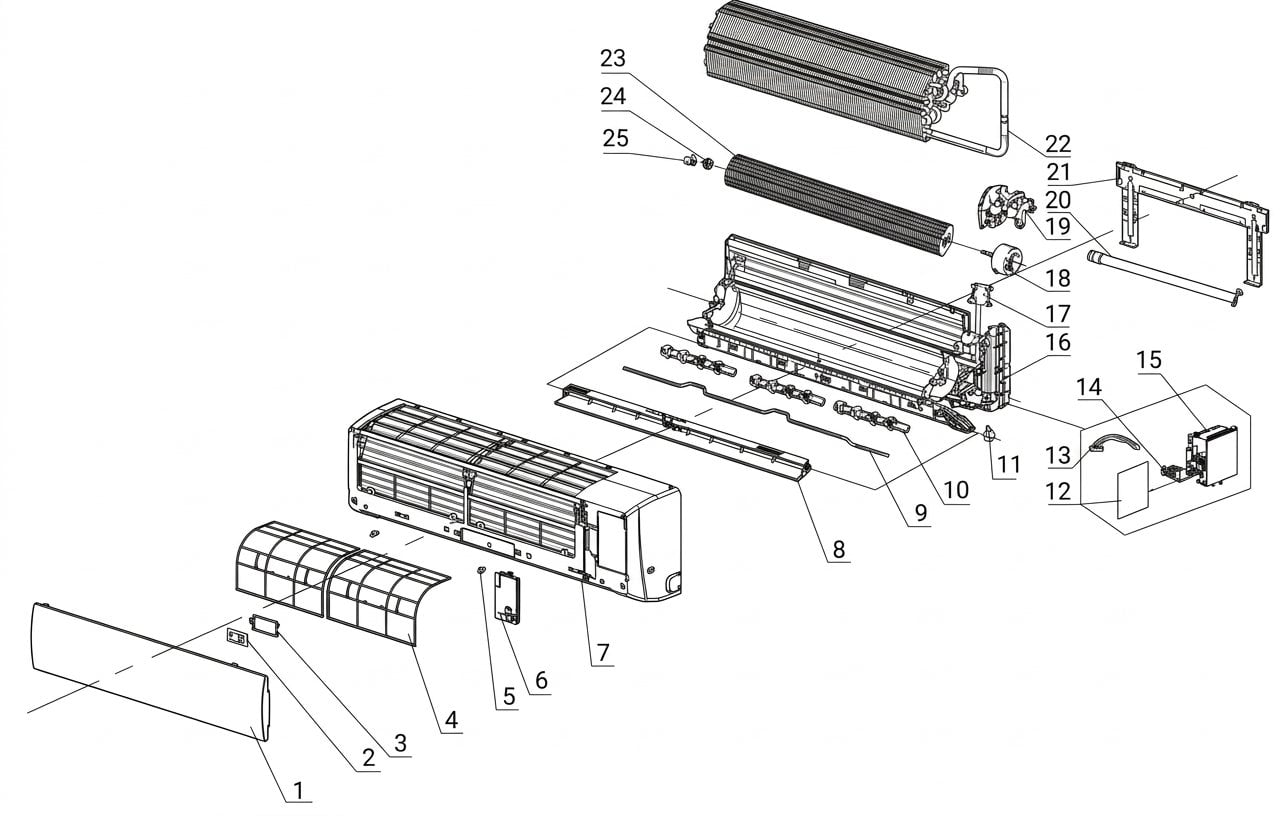

Model number: WT024GLUI20HLE
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-001560 | Front Panel | 1 | |
| 2 | 31102-000084 | Display PCB | 1 | |
| 3 | 42003-000001 | Display PCB Box | 1 | |
| 4 | 42008-000069 | Air Filter | 1 | |
| 5 | 41108-000066 | Screw Cover | 2 | |
| 6 | 41211-000079 | Electrical Box Cover | 1 | |
| 7 | 41106-002351 | Face Frame | 1 | |
| 8 | 41103-000484 | Vane | 1 | |
| 9 | 41507-000076 | Vertical Vane Assembly Connector | 1 | |
| 10 | 41101-000042 | Vertical Vane Assembly | 3 | |
| 11 | 22001-000321 | Vane Motor | 1 | |
| 12 | G0301-124998 | Main PCB | 1 | |
| 13 | 10104-100014 | Indoor Sensor Assembly | 1 | |
| 14 | 11304-100063 | Terminal | 1 | |
| 15 | 41105-000427 | Electrical Box | 1 | |
| 16 | 41102-000669 | Base | 1 | |
| 17 | 41101-000224 | In-and-Out Pipe Fixer | 1 | |
| 18 | 22001-000726 | Fan Motor | 1 | |
| 19 | 42003-000045 | Fan Motor Cover | 1 | |
| 20 | 42009-000011 | Drainage Hose | 1 | |
| 21 | 41109-000019 | Mounting Plate | 1 | |
| 22 | K0304-116193 | Evaporator | 1 | |
| 23 | 42004-000002 | Blower Wheel | 1 | |
| 24 | 42007-000009 | Bearing Mount | 1 | |
| 25 | 41101-000251 | Bearing Mount Holder | 1 | |
| 26 | G0401-110969 | Remote Control | 1 | Not shown in the diagram |
| 27 | 42001-000014 | Remote Control Holder | 1 | |
| 28 | L0102-146592 | Indoor Carton | 1 | |
| 29 | A2006-000060 | Left Foaming | 1 | |
| 30 | A2006-000059 | Right Foaming | 1 |
Outdoor Unit
Model number: YN024GLUI20RPE
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000634 | Base | 1 | |
| 2 | 41208-001257 | Partition Plate | 1 | |
| 3 | 92014-000992 | Compressor and Accessories | 1 | |
| 4 | K0206-110195 | 4-Way Valve Assembly | 1 | |
| 5 | 92008-000465 | 4-Way Valve | 1 | |
| 6 | G0301-124953 | PCB Assembly | 1 | |
| 7 | 42001-000036 | Clamp | 1 | |
| 8 | 11304-100117 | Terminal | 1 | |
| 9 | 41205-001098 | Right Side Plate | 1 | |
| 10 | 41204-000018 | Valve Supporter | 1 | |
| 11 | 92008-000141 | 3-Way Valve | 1 | |
| 12 | 92008-000051 | 2-Way Valve | 1 | |
| 13 | 41204-000083 | Valve Cover | 1 | |
| 14 | 41201-000106 | Electronic Box Cover | 1 | |
| 15 | K0103-110497 | Electronic Expansion Valve | 1 | |
| 16 | 42011-000525 | Rear Grille | 1 | |
| 17 | K0304-116357 | Condenser | 1 | |
| 18 | 41207-000028 | Top Cover | 1 | |
| 19 | 41205-000135 | Left Side Plate | 1 | |
| 20 | 41203-000032 | Fan Motor Mount Bracket | 1 | |
| 21 | 22001-000643 | Fan Motor | 1 | |
| 22 | 42004-000249 | Propeller Fan | 1 | |
| 23 | 41206-000252 | Front Panel | 1 | |
| 24 | 42011-000597 | Fan Guard | 1 | |
| 25 | 10104-100176 | Sensor | 1 | Not shown in the diagram |
| 26 | L0106-110085 | Base Carton | 1 | |
| 27 | L0102-146597 | Cabinet Carton | 1 | |
| 28 | L0501-110074 | Base Foaming | 1 | |
| 29 | L0501-110072 | Cover Foaming | 1 |
