WYT024GLUI17RL Parts ListUpdated 30 minutes ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT024GLUI17RL system. This system is part of the Diamante Essenza (WYT-17) series.

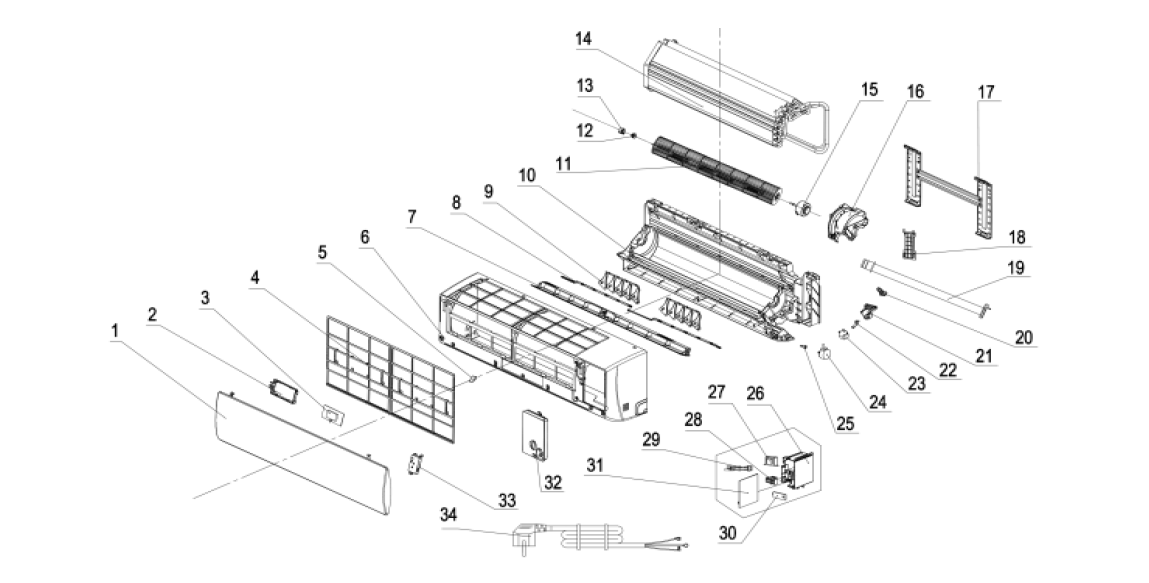

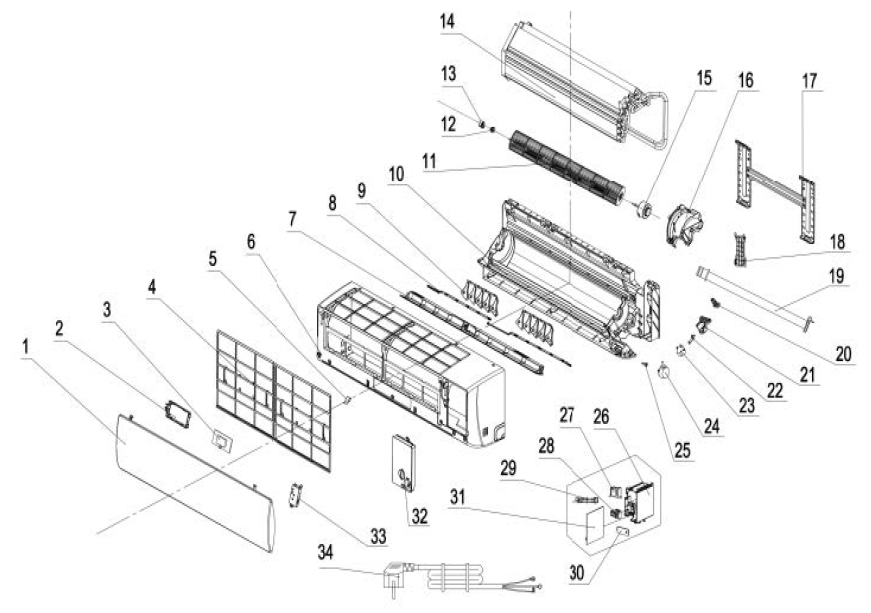

Indoor Unit
Model number: WT024GLUI17HLD
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-012022 | Front panel | 1 | |
| 2 | 42003-000001 | Display PCB box | 1 | |
| 3 | 31102-000085 | Display PCB | 1 | |
| 4 | 42008-000001 | Air filter | 2 | |
| 5 | 41108-000066 | Screw cover | 2 | |
| 6 | 41106-002351 | Face frame assembly | 1 | |
| 7 | 41103-000484 | Vane assembly | 1 | |
| 8 | 41507-000076 | Swept Connecting rod | 1 | |
| 9 | 41101-000042 | Vertical vane | 3 | |
| 10 | 41102-000669 | Base assembly | 1 | |
| 11 | 42004-000002 | Cross fan | 1 | |
| 12 | 42007-000009 | Bearing mount | 1 | |
| 13 | 41101-000251 | Bearing sleeve | 1 | |
| 14 | 92011-002754 | Evaporator | 1 | |
| 15 | 22001-000240 | Indoor motor | 1 | |
| 16 | 42003-000045 | Indoor motor cover | 1 | |
| 17 | 41109-000019 | Installation plate | 1 | |
| 18 | 41101-000224 | In-and-out pipe fixer | 1 | |
| 19 | 42009-000011 | Drainage hose | 1 | |
| 20 | 92012-000185 | Drain pipe rubber plug | 1 | |
| 21 | 42001-000004 | Pendulum motor fixed seat | 1 | |
| 22 | 41108-000058 | Crank | 1 | |
| 23 | 22001-000318 | Step motor 1 | 1 | |
| 24 | 22001-000321 | Step motor 2 | 1 | |
| 25 | 41101-000252 | Electric axis | 1 | |
| 26 | 41105-000427 | Electrical box | 1 | |
| 27 | / | Transformer | 1 | |
| 28 | 11304-100063 | Terminal | 1 | |
| 29 | 10104-100014 | Sensor | 1 | |
| 30 | 42001-000103 | Clamp | 1 | |
| 31 | 31101-002525 | Main PCB | 1 | |
| 32 | 41211-000079 | Electrical box cover | 1 | |
| 33 | / | Wi-Fi module | 1 | |
| 34 | 22007-000111 | Power supply cord | 1 | |
| 35 | 22013-004238 | Remote control | 1 | |
| 36 | A2006-000060 | Packing foam 1 | 1 | |
| A2006-000059 | Packing foam 2 | 1 | Not shown in the Explosion view | |
| 37 | 22007-000246 | Indoor and outdoor connection line | 1 |

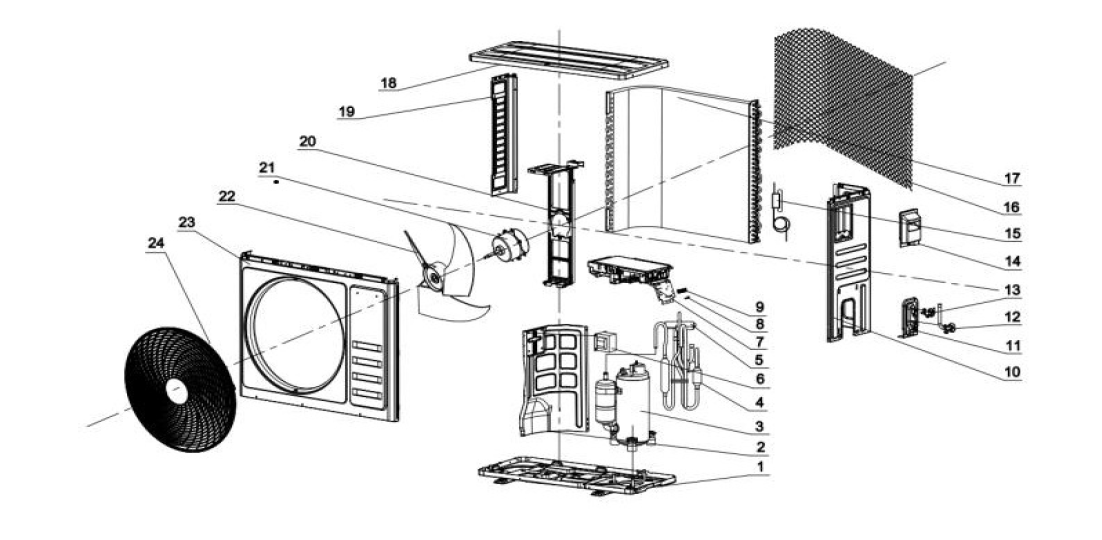

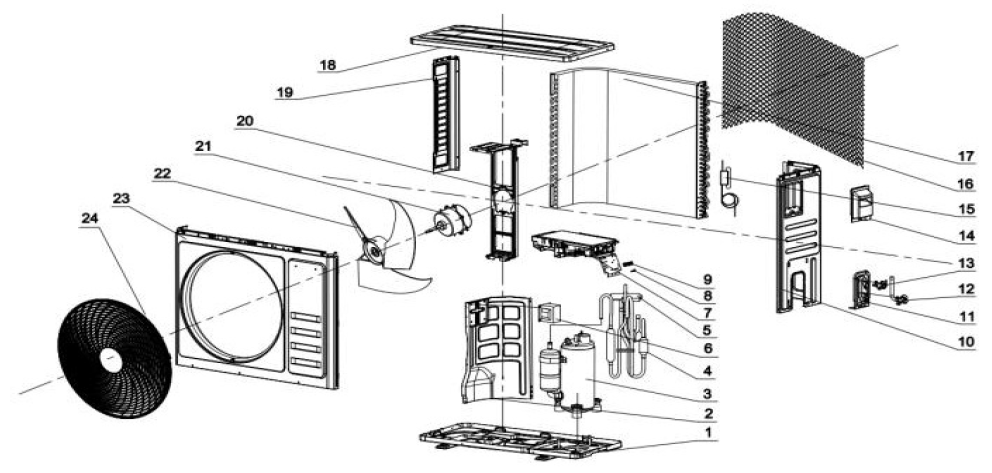

Outdoor Unit
Model number: YN024GLUI17RPD
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000621 | Base | 1 | |
| 2 | 41208-001112 | Partition plate | 1 | |
| 3 | 92014-000861 | Compressor | 1 | |
| 4 | 92007-019247 | 4-way valve assembly | 1 | |
| 5 | 92008-000245 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003739 | Outdoor control assembly | 1 | |
| 8 | 42001-000038 | Clamp | 1 | |
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000087 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-019736 | 3-way valve | 1 | |
| 13 | 92007-001046 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-019708 | Capillary assembly | 1 | |
| 16 | 42011-000168 | Back grille | 1 | |
| 17 | 92011-005200 | Condenser | 1 | |
| 18 | 41207-000033 | Top cover | 1 | |
| 19 | 41205-000130 | Support | 1 | |
| 20 | 41203-000052 | Outdoor motor supporter | 1 | |
| 21 | 22001-000555 | Outdoor motor | 1 | |
| 22 | 42004-000104 | Propeller fan | 1 | |
| 23 | 41206-000057 | Front plate | 1 | |
| 24 | 42011-000040 | Fan guard | 1 | |
| 25 | 92009-000171 | Connecting pipe assembly 1 | 1 | Not shown in the Explosion view |
| 92009-000218 | Connecting pipe assembly 2 | 1 | ||
| 26 | A2005-000540 | Base carton | 1 | |
| 27 | A1202-000026 | Base foam | 1 | |
| 28 | 41213-000019 | Cover foam | 1 | |
| 29 | 10104-100177 | Sensor | 1 | |
| 30 | A1201-000396 | Carton | 1 |
