WYT024GLSI25RH Parts ListUpdated 17 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT024GLSI25RH system. This system is part of the Quantum Hyperformance (WYT-25) series.

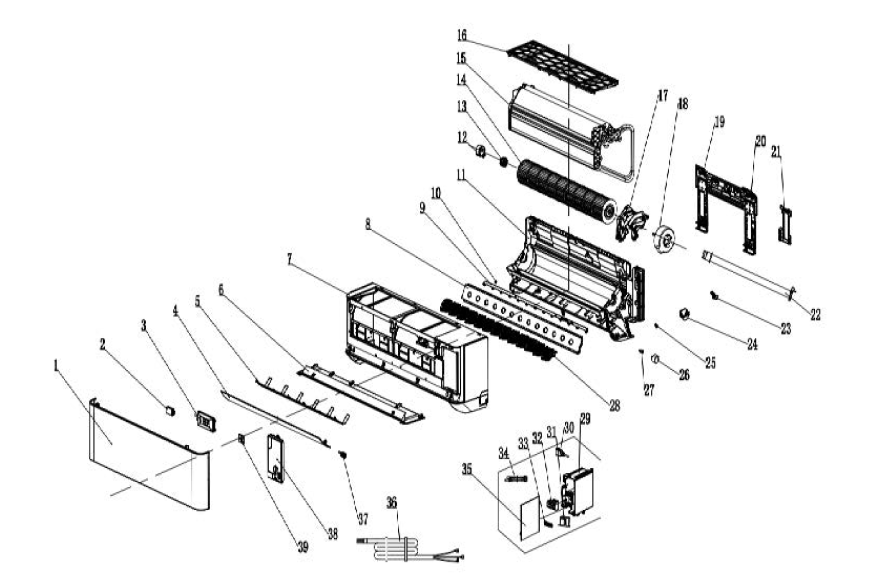

Indoor Unit
Model number: WT024GLSI25HLH
No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-011603 | Front panel | 1 | |
| 2 | / | Wi-Fi | 1 | |
| 3 | 32099-006472 | Display PCB | 1 | |
| 4 | 41103-000481 | Vane | 1 | |
| 5 | 41103-000615 | Air outlet protection grille | 1 | |
| 6 | 41101-000388 | Middle support | 1 | |
| 7 | 41106-003991 | Face frame assembly | 1 | |
| 8 | 41101-000375 | Sweep vane card | 1 | |
| 9 | 41101-000373 | Swept connecting rod | 1 | |
| 10 | 42011-000303 | Vane bush | 1 | |
| 11 | 41102-000557 | Base | 1 | |
| 12 | 41101-000251 | Bearing mount cover | 1 | |
| 13 | 42007-000009 | Bearing mount | 1 | |
| 14 | 42004-000295 | Cross fan | 1 | |
| 15 | 92011-004430 | Evaporator | 1 | |
| 16 | 42008-000175 | Air filter | 1 | |
| 17 | 41108-000009 | Indoor motor cover | 1 | |
| 18 | 22001-000240 | Indoor motor | 1 | |
| 19 | 41109-000017 | Installation plate | 1 | |
| 20 | 41109-000069 | Installation plate pole | 2 | |
| 21 | 41101-000240 | In-and-out pipe fixer | 1 | |
| 22 | 42009-000011 | Drainage hose | 1 | |
| 23 | 92012-000185 | Drain pipe rubber plug | 1 | |
| 24 | 29901-000078 | Step motor assembly | 1 | |
| 25 | 42011-000366 | Vane bush | 1 | |
| 26 | 22001-000360 | Step motor | 1 | |
| 27 | 41101-000252 | Electric axis | 1 | |
| 28 | 41101-000374 | Vertical vane | 1 | |
| 29 | 41105-000427 | Electrical box | 1 | |
| 30 | 22007-001028 | Wiring | 1 | |
| 31 | / | Transformer | 1 | |
| 32 | 11304-100063 | Terminal | 1 | |
| 33 | 42001-000103 | Clamp | 1 | |
| 34 | 10104-100014 | Sensor | 1 | |
| 35 | 31101-002315 | Main PCB | 1 | |
| 36 | / | Power supply cord | 1 | |
| 37 | 41101-000213 | Wind deflector bolt | 1 | |
| 38 | 41105-000178 | Electrical box cover | 1 | |
| 39 | 22007-000246 | Indoor & outdoor connection line | 1 | |
| 40 | A1102-000004 | Packing foam 1 | 1 | Not shown in the Explosion view |
| A1102-000003 | Packing foam 2 | 1 | ||
| 41 | 22013-004238 | Remote control | 1 | |
| 42 | / | Wi-Fi fixed cover | 1 |

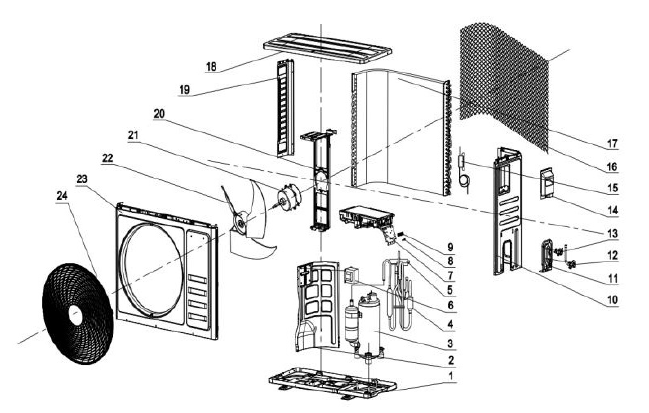

Outdoor Unit
Model number: YN024GLSI25RPH
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000629 | Base | 1 | |
| 2 | 41208-001049 | Middle metal plate | 1 | |
| 3 | 92014-001151 | Compressor | 1 | |
| 4 | K0206-110266 | 4-way valve assembly | 1 | |
| 5 | 92008-000498 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-004100 | Outdoor control assembly | 1 | |
| 8 | 42001-000036 | Clamp 1 | 1 | |
| 42001-000038 | Clamp 2 | 1 | ||
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000800 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92008-000142 | 3-way valve | 1 | |
| 13 | 92008-000051 | 2-way valve | 1 | |
| 14 | 41201-000106 | Safety cover assembly | 1 | |
| 15 | 92007-022613 | EXV assembly | 1 | |
| 16 | 42011-000419 | Back grille | 1 | |
| 17 | 92011-013117 | Condenser | 1 | |
| 18 | 41207-000048 | Top cover | 1 | |
| 19 | 41205-000651 | Left supporter | 1 | |
| 20 | 41203-000115 | Outdoor motor supporter | 1 | |
| 21 | 22001-000643 | Outdoor motor | 1 | |
| 22 | 42004-000249 | Propeller fan | 1 | |
| 23 | 41206-000076 | Front plate | 1 | |
| 24 | 42011-000031 | Fan guard | 1 | |
| 25 | 10104-100058 | NTC sensor assembly | 1 | Not shown in the Explosion view |
| 26 | A1202-000085 | Packing foam 1 | 1 | |
| A1202-000086 | Packing foam 2 | 1 | ||
| 27 | A1201-012669 | Base Carton | 1 | |
| 28 | A1201-012670 | Carton | 1 |
