WYT024GLSI20RL Parts ListUpdated 3 hours ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT024GLSI20RL system. This system is part of the Diamante Pro (WYT-20) series.

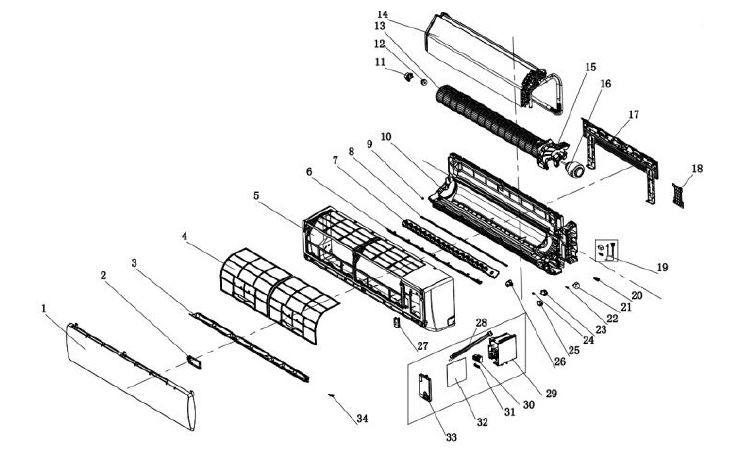

Indoor Unit
Model number: WT024GLSI20HLF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-012022 | Front panel | 1 | |
| 2 | 42003-000001 | Display assembly | 1 | |
| 3 | 41103-000643 | Vane | 1 | |
| 4 | 42008-000239 | Air filter | 2 | |
| 5 | 41106-014054 | Face frame | 1 | |
| 6 | 41103-000645 | Grid guard | 1 | |
| 7 (8, 9, 10 20, 24, 26) | 41102-000609 | Base assembly | 1 | |
| 11 | 41101-000250 | Bearing sleeve | 1 | |
| 12 | 42007-000009 | Bearing mount | 1 | |
| 13 | 42004-000242 | Cross fan | 1 | |
| 14 | 92011-009716 | Evaporator | 1 | |
| 15 | 41108-000203 | Indoor motor cover | 1 | |
| 16 | 22001-000240 | Indoor motor | 1 | |
| 17 | 41109-000084 | Installation plate | 1 | |
| 18 | 41101-000240 | In-and-out pipe fixer | 1 | |
| 19 | / | Anion generator | 1 | |
| 21 | 22001-000360 | Vane motor | 1 | |
| 22 | 41101-000252 | Electric axis | 1 | |
| 23 | / | Step motor box | 1 | |
| 25 | / | Step motor | 1 | |
| 27 | / | Wi-Fi | 1 | |
| 28 | 10104-100022 | Indoor sensor assembly | 1 | |
| 29 | 41105-000427 | Electrical box | 1 | |
| 30 | 11304-100063 | Terminal | 1 | |
| 31 | 42001-000103 | Cable clamp | 1 | |
| 32 | 31101-002316 | Main PCB | 1 | |
| 33 | 41211-000079 | Electrical box cover | 1 | |
| 34 | 41101-000349 | Vane latch | 2 | |
| 35 | 42009-000011 | Drain hose | 1 | Not shown in the Explosion view |
| 36 | A1102-000042 | Packing foam 1 | 1 | |
| A1102-000043 | Packing foam 2 | 1 | ||
| 37 | A1101-017788 | Middle u carton | 1 | |
| 38 | / | Remote control | 1 | |
| 39 | 31102-000109 | Display PCB | 1 | |
| 40 | 22007-000104 | Power supply cord | 1 | |
| 41 | 22007-000246 | Indoor & outdoor connect cord | 1 |

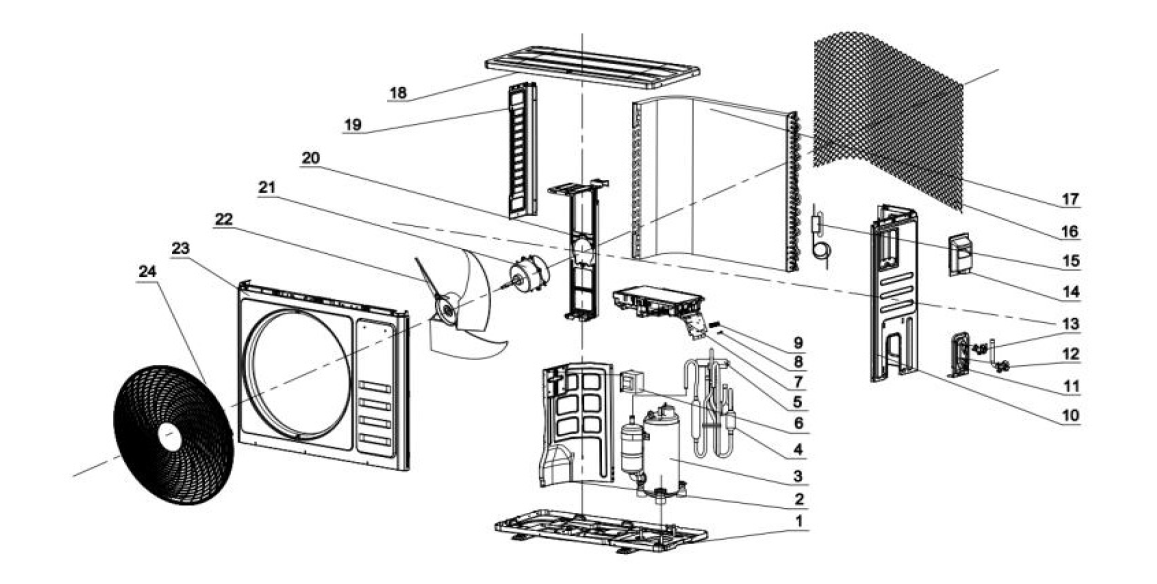

Outdoor Unit
Model number: YN024GLSI20RPF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000625 | Base | 1 | |
| 2 | 41208-000904 | Partition plate | 1 | |
| 3 | 92014-000935 | Compressor | 1 | |
| 4 | 92007-021860 | 4-way valve assembly | 1 | |
| 5 | 92008-000495 | 4-way valve | 1 | |
| 6 | 22011-000014 | Reactor | / | |
| 7 | 31201-003275 | Outdoor control assembly | 1 | |
| 8 | 42001-000038 | Clamp 1 | 1 | |
| 42001-000036 | Clamp 2 | 1 | ||
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-000092 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001042 | 3-way valve | 1 | |
| 13 | 92007-001057 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-020884 | Capillary assembly | 1 | |
| 16 | 42011-000187 | Back grille | 1 | |
| 17 | 92011-006053 | Condenser | 1 | |
| 18 | 41207-000028 | Top cover | 1 | |
| 19 | 41205-000117 | Support | 1 | |
| 20 | 41203-000032 | Outdoor motor supporter | 1 | |
| 21 | 22001-000147 | Outdoor motor | 1 | |
| 22 | 42004-000105 | Propeller fan | 1 | |
| 23 | 41206-000058 | Front plate | 1 | |
| 24 | 42011-000039 | Fan guard | 1 | |
| 25 | A2007-000932 | Base foam | 1 | Not shown in the Explosion view |
| 26 | 41110-000204 | Cover foam | 1 | |
| 27 | 10104-100145 | Sensor | 1 | |
| 28 | 41213-000030 | Connect pipe assembly 1 | 1 | |
| 10104-100055 | Connect pipe assembly 2 | 1 |
