WYT018GLUI17RL Parts ListUpdated 29 minutes ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT018GLUI17RL system. This system is part of the Diamante Essenza (WYT-17) series.
Indoor Unit

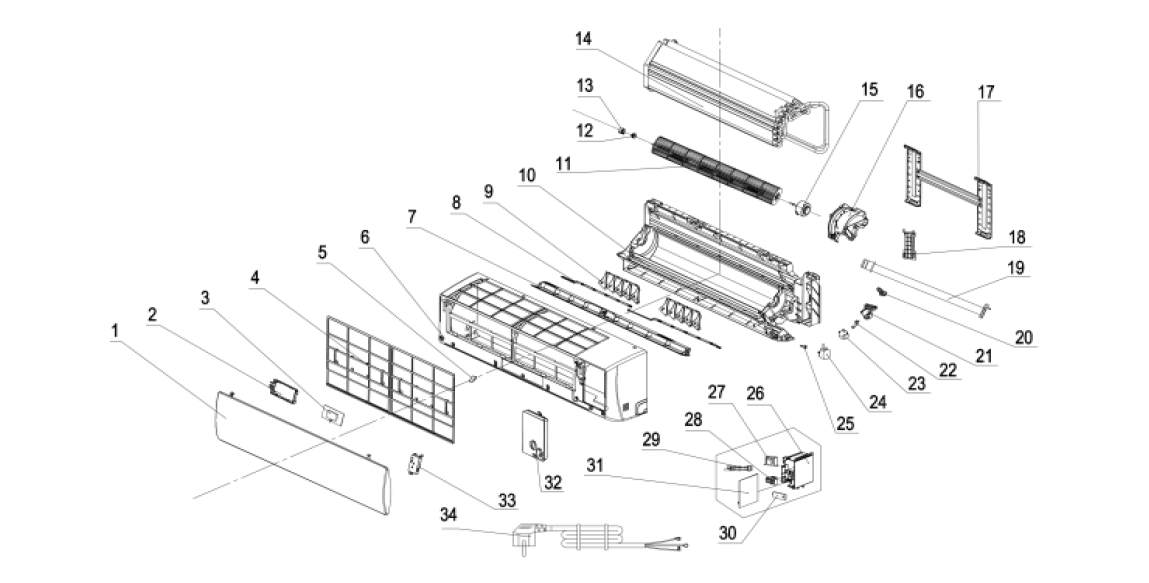

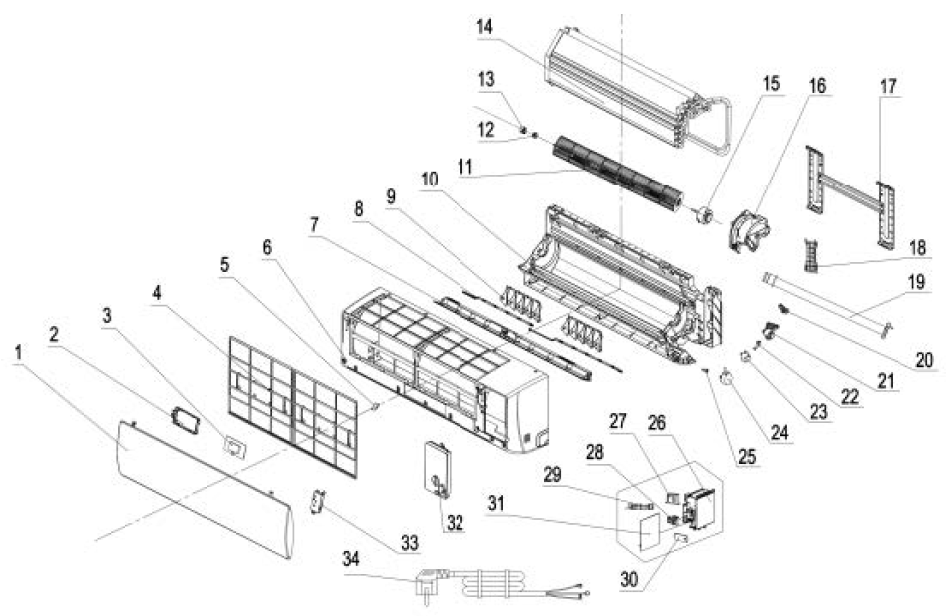

Model number: WT018GLUI17HLD
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-012022 | Front panel | 1 | |
| 2 | 42003-000001 | Display PCB box | 1 | |
| 3 | 31102-000085 | Display PCB | 1 | |
| 4 | 42008-000075 | Air filter | 2 | |
| 5 | 41108-000066 | Screw cover | 2 | |
| 6 | 41106-002356 | Face frame assembly | 1 | |
| 7 | 41103-000149 | Vane assembly | 1 | |
| 8 | 41101-000166 | Connecting rod | 1 | |
| 9 | 41101-000067 | Vertical vane | 2 | |
| 10 | 41102-000047 | Base assembly | 1 | |
| 11 | 42004-000012 | Cross fan | 1 | |
| 12 | 42007-000009 | Bearing mount | 1 | |
| 13 | 41101-000251 | Bearing sleeve | 1 | |
| 14 | 92011-002777 | Evaporator | 1 | |
| 15 | 22001-000547 | Indoor motor | 1 | |
| 16 | 41108-000013 | Indoor motor cover | 1 | |
| 17 | 41109-000041 | Installation plate | 1 | |
| 18 | 41101-000242 | In-and-out pipe fixer | 1 | |
| 19 | 42009-000011 | Drainage hose | 1 | |
| 20 | 92012-000185 | Drain pipe rubber plug | 1 | |
| 21 | 42001-000004 | Pendulum motor fixed seat | 1 | |
| 22 | 41108-000058 | Crank | 1 | |
| 23 | 22001-000321 | Step motor 1 | 1 | |
| 24 | 22001-000318 | Step motor 2 | 1 | |
| 25 | 41101-000252 | Electric axis | 1 | |
| 26 | 41105-000427 | Electrical box | 1 | |
| 27 | / | Transformer | 1 | |
| 28 | 11304-100063 | Terminal | 1 | |
| 29 | 10104-100014 | Sensor | 1 | |
| 30 | 42001-000103 | Clamp | 1 | |
| 31 | 31101-002090 | Main PCB | 1 | |
| 32 | 41211-000079 | Electrical box cover | 1 | |
| 33 | / | Wi-Fi module | 1 | |
| 34 | 22007-000111 | Power supply cord | 1 | |
| 35 | A2006-000040 | Packing foam 1 | 1 | Not shown in the Explosion view |
| A2006-000019 | Packing foam 2 | 1 | ||
| 36 | / | Remote control | 1 | |
| 37 | 22007-000246 | Indoor and outdoor connection line | 1 |
Outdoor Unit

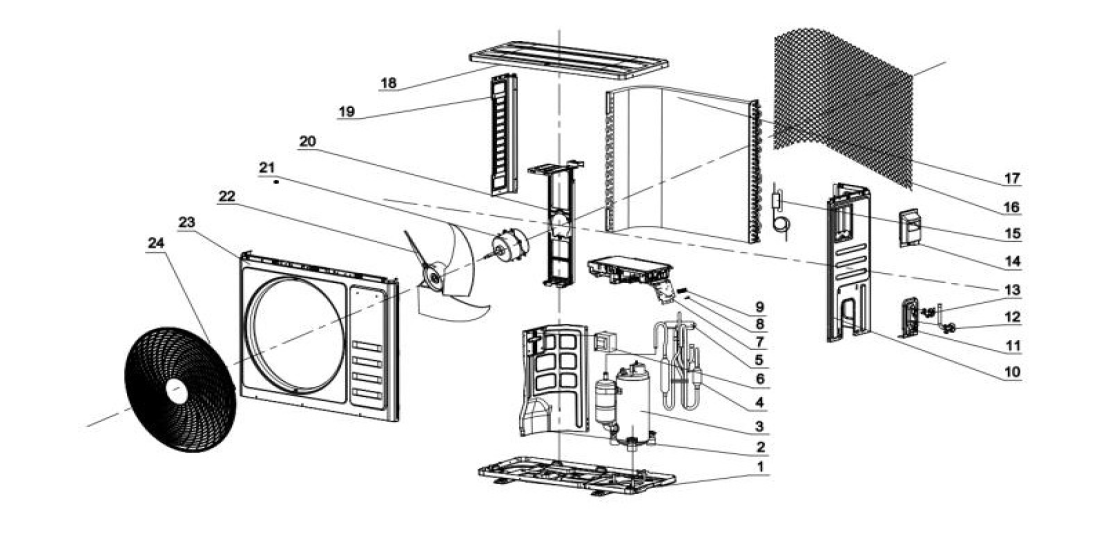

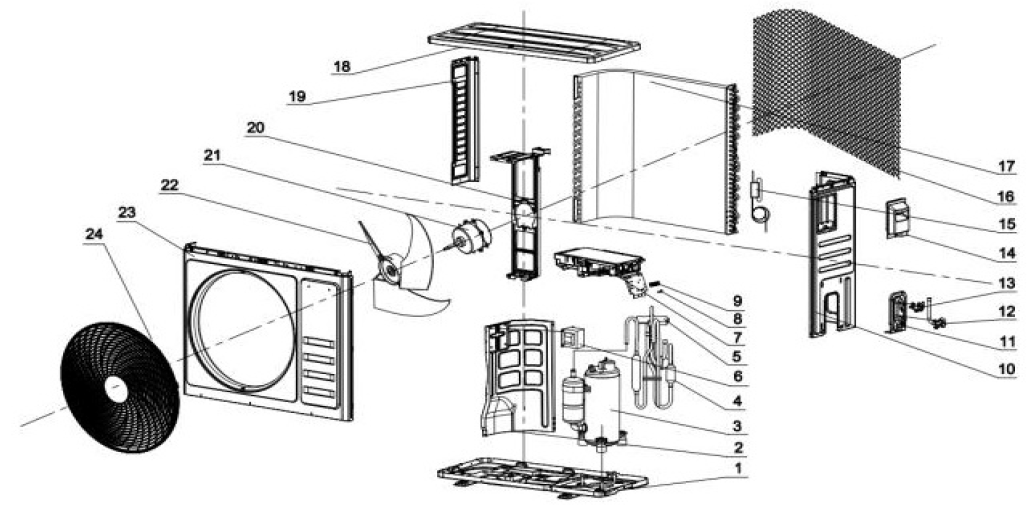

Model number: YN018GLUI17RPD
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000756 | Base | 1 | |
| 2 | 41208-001033 | Partition plate | 1 | |
| 3 | 92014-000768 | Compressor | 1 | |
| 4 | 92007-019599 | 4-way valve assembly | 1 | |
| 5 | 92008-000245 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003879 | Outdoor control assembly | 1 | |
| 8 | 42001-000038 | Clamp 1 | 1 | |
| / | Clamp 2 | 1 | ||
| 9 | 11304-100117 | Terminal | 1 | |
| 10 | 41205-001094 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001041 | 3-way valve | 1 | |
| 13 | 92007-007226 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-019812 | Capillary assembly | 1 | |
| 16 | 42011-000501 | Back grille | 1 | |
| 17 | 92011-009092 | Condenser | 1 | |
| 18 | 41207-000040 | Top cover | 1 | |
| 19 | 41205-000131 | Support | 1 | |
| 20 | 41203-000522 | Outdoor motor supporter | 1 | |
| 21 | 22001-000555 | Outdoor motor | 1 | |
| 22 | 42004-000104 | Propeller fan | 1 | |
| 23 | 41206-000294 | Front plate | 1 | |
| 24 | 42011-000594 | Fan guard | 1 | |
| 25 | A2005-000523 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000031 | Base foam | 1 | |
| 27 | 41213-000023 | Cover foam | 1 | |
| 28 | 10104-100056 | Sensor | 1 | |
| 29 | 92009-000187 | Connecting pipe assembly 1 | 1 | |
| 92009-000180 | Connecting pipe assembly 2 | 1 |
