WYT018GLSI20RL Parts ListUpdated 3 hours ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT018GLSI20RL system. This system is part of the Diamante Pro (WYT-20) series.

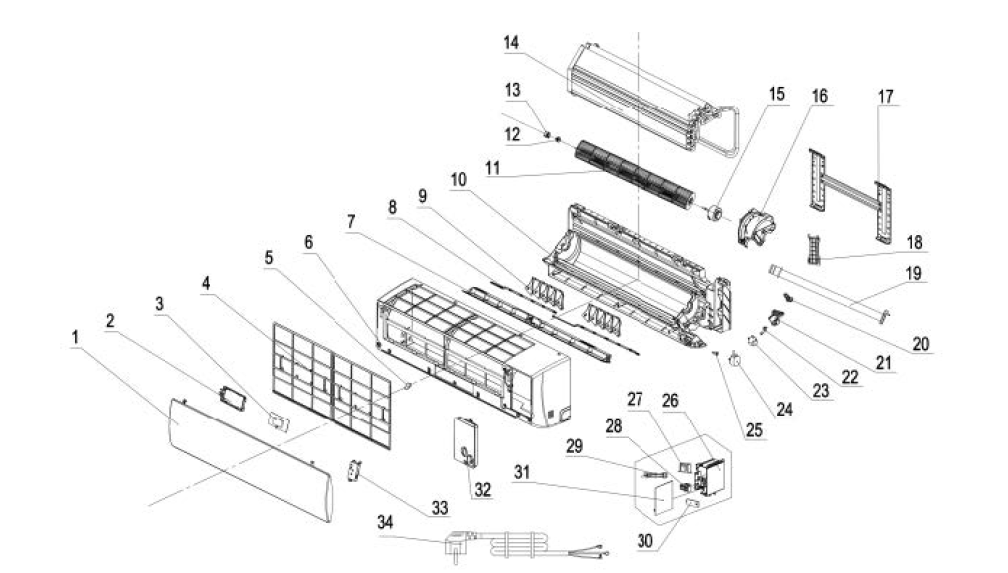

Indoor Unit
Model number: WT018GLSI20HLF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-012022 | Front panel | 1 | |
| 2 | 42003-000001 | Display PCB box | 1 | |
| 3 | 31102-000085 | Display PCB | 1 | |
| 4 | 42008-000039 | Air filter | 2 | |
| 5 | 41108-000066 | Screw cover | 1 | |
| 6 | 41106-002351 | Face frame assembly | 1 | |
| 7 | 41103-000484 | Vane assembly | 1 | |
| 8 | 41507-000076 | Swept connecting rod | 1 | |
| 9 | 41101-000042 | Vertical vane | 3 | |
| 10 | 41102-000669 | Base assembly | 1 | |
| 11 | 42004-000002 | Cross fan | 1 | |
| 12 | 42007-000009 | Bearing mount | 1 | |
| 13 | 41101-000251 | Bearing sleeve | 1 | |
| 14 | 92011-003113 | Evaporator | 1 | |
| 15 | 22001-000240 | Indoor motor | 1 | |
| 16 | 42003-000045 | Indoor motor cover | 1 | |
| 17 | 41109-000019 | Installation plate | 1 | |
| 18 | 41101-000224 | In-and-out pipe fixer | 1 | |
| 19 | 42009-000011 | Drainage hose | 1 | |
| 20 | 92012-000185 | Drain pipe rubber plug | 1 | |
| 21 | 42001-000004 | Pendulum motor fixed seat | 1 | |
| 22 | 41108-000058 | Crank | 1 | |
| 23 | 22001-000640 | Step motor 1 | 1 | |
| 24 | 22001-000321 | Step motor 2 | 1 | |
| 25 | 41101-000252 | Electric axis | 1 | |
| 26 | 41105-000427 | Electrical box | 1 | |
| 27 | / | Transformer | 1 | |
| 28 | 11304-100063 | Terminal | 1 | |
| 29 | 10104-100014 | Sensor | 1 | |
| 30 | 42001-000103 | Clamp | 1 | |
| 31 | 31101-002313 | Main PCB | 1 | |
| 32 | 41211-000079 | Electrical box cover | 1 | |
| 33 | / | Wi-Fi module | 1 | |
| 34 | 22007-000111 | Power supply cord | 1 | |
| 35 | / | Remote control | 1 | Not shown in the Explosion view |
| 36 | A2006-000060 | Packing foam 1 | 1 | |
| 37 | A2006-000059 | Packing foam 2 | 1 | |
| 38 | 22007-000246 | Indoor and outdoor connection line | 1 |

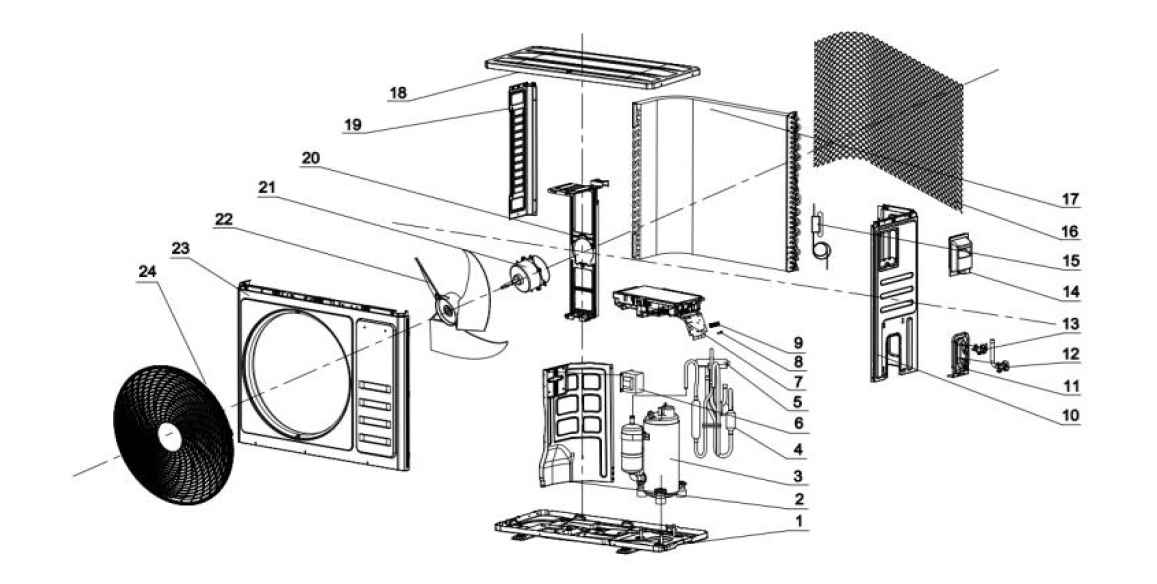

Outdoor Unit
Model number: YN018GLSI20RPF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000364 | Base | 1 | |
| 2 | 41208-000149 | Partition plate | 1 | |
| 3 | 92014-000589 | Compressor | 1 | |
| 4 | 92007-006990 | 4-way valve assembly | 1 | |
| 5 | 92008-000244 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-002197 | Outdoor control assembly | 1 | |
| 8 | 42001-000035 | Clamp 1 | 1 | |
| 42001-000038 | Clamp 2 | 1 | ||
| 9 | 11304-100004 | Terminal | 1 | |
| 10 | 41205-000238 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001066 | 3-way valve | 1 | |
| 13 | 92008-000258 | 2-way valve | 1 | |
| 14 | 41201-000029 | Electrical box cover | 1 | |
| 15 | 92007-007567 | Capillary assembly | 1 | |
| 16 | 42011-000105 | Back grille | 1 | |
| 17 | 92011-005129 | Condenser | 1 | |
| 18 | 41207-000033 | Top cover | 1 | |
| 19 | 41205-000119 | Support | 1 | |
| 20 | 41203-000052 | Outdoor motor supporter | 1 | |
| 21 | 22001-000493 | Outdoor motor | 1 | |
| 22 | 42004-000104 | Propeller fan | 1 | |
| 23 | 41206-000055 | Front plate | 1 | |
| 24 | 42011-000081 | Fan guard | 1 | |
| 25 | 92009-000404 | Connect pipe assembly 1 | 1 | Not shown in the Explosion view |
| 92009-000399 | Connect pipe assembly 2 | 1 | ||
| 26 | A2005-000540 | Base carton | 1 | |
| 27 | A1202-000026 | Base foam | 1 | |
| 28 | 41213-000019 | Cover foam | 1 | |
| 29 | 10104-100136 | Sensor | 1 |
