WYT012GLUI25FV Parts ListUpdated 20 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT012GLUI25FV system. This system is part of the Quantum Fresh (WYT-FA) series.

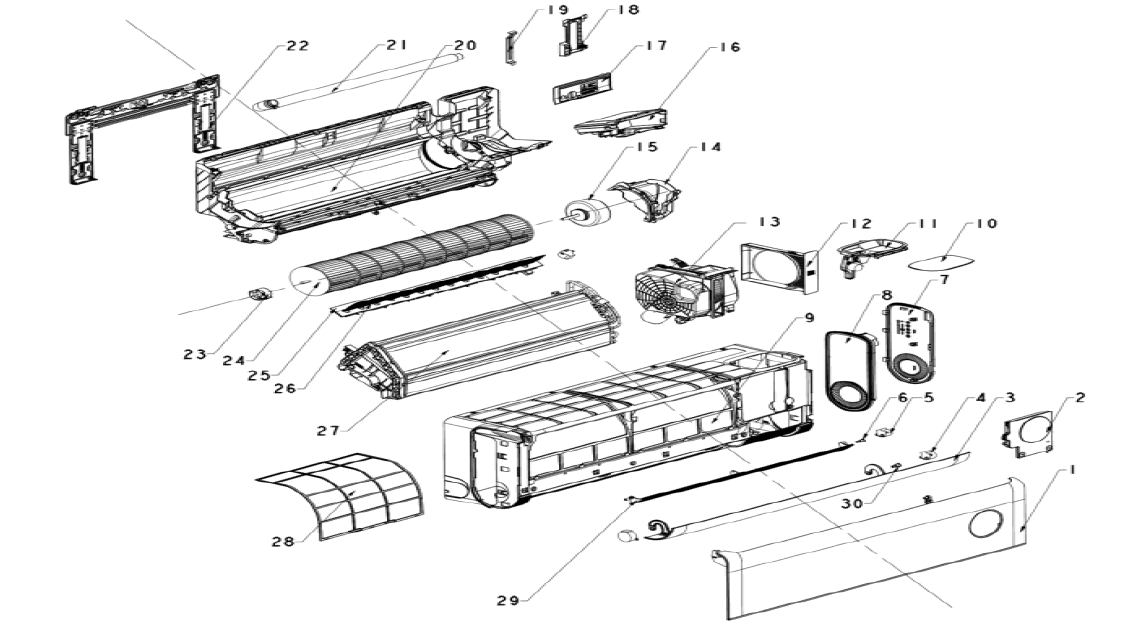

Indoor Unit
Model number: WT012GLUI25FVQ
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | / | Indoor panel assembly | 1 | |
| 2 | 31102-000415 | Display PCB | 1 | |
| 3 | 41103-000737 | Vane | 1 | |
| 4 | 22001-000683 | Step motor 1 | 1 | |
| 5 | 22001-000707 | Step motor 2 | 1 | |
| 6 | 41101-000252 | Electric axis | 1 | |
| 7 | 41107-000513 | Right-side plate | 1 | |
| 8 | 41107-000511 | Left-side plate | 1 | |
| 9 | 41106-031447 | Face frame | 1 | |
| 10 | 41105-000429 | Lifting assembly cover | 1 | |
| 11 | 41101-000502 | Lifting assembly | 1 | |
| 12 | 41108-000279 | Filter cover | 1 | |
| 13 | 41199-004976 | Fresh air module | 1 | |
| 14 | 41108-000280 | Motor cover | 1 | |
| 15 | 22001-000547 | Indoor motor | 1 | |
| 16 | 41105-000456 | Electrical box | 1 | |
| 17 | 41105-000559 | Electrical box cover | 1 | |
| 18 | 41101-000354 | In-and-out pipe fixer | 1 | |
| 19 | / | Pressure tub sheet | 2 | |
| 20 | 41102-000749 | Base | 1 | |
| 21 | 42009-000011 | Drainage hose | 1 | |
| 22 | 41109-000077 | Installation plate assembly | 1 | |
| 23 | 41101-000251 | Bearing mount cover | 1 | |
| 24 | 42004-000287 | Cross fan | 1 | |
| 25 | 41101-000597 | Card board | 1 | |
| 26 | 41101-000601 | Vertical vane | 3 | |
| 27 | 92011-013036 | Evaporator | 1 | |
| 28 | 41108-000263 | Air filter | 2 | |
| 29 | 41103-000738 | Vane | 1 | |
| 30 | 41101-000600 | Electrical axis | 2 | |
| 31 | A1102-000085 | Packing foam (left) | 1 | Not shown in the Explosion view |
| 32 | A1102-000086 | Packing foam (right) | 1 | |
| 33 | 81199-039189 | Fresh air accessories | 1 | |
| 34 | 22007-000111 | Power supply cord | 1 | |
| 35 | / | Remote control | 1 | |
| 36 | / | Remote control supporter | 1 | |
| 37 | 42008-000211 | Fresh air filter | 1 | |
| 38 | 10104-100227 | Sensor | 1 |

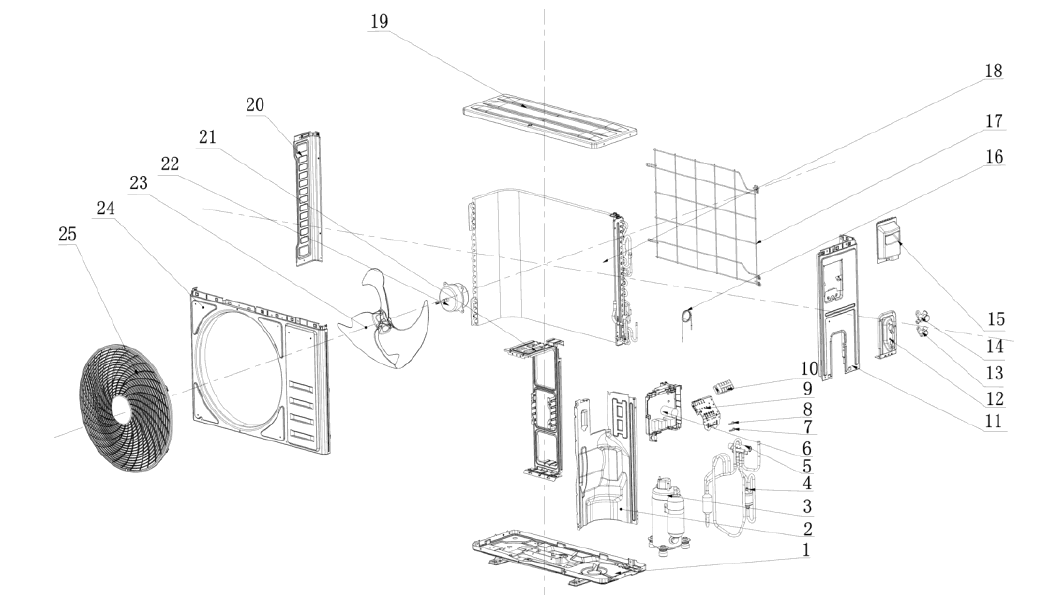

Outdoor Unit
Model number: YN012GLUI25RPQ
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000640 | Base | 1 | |
| 2 | 41208-001033 | Partition plate | 1 | |
| 3 | 92014-001111 | Compressor | 1 | |
| 4 | 92007-021813 | 4-way valve assembly | 1 | |
| 5 | 92008-000449 | 4-way valve | 1 | |
| 6 | 31201-004031 | Outdoor control assembly | 1 | |
| 7 | / | Clamp 1 | 1 | |
| 8 | 42001-000036 | Clamp 2 | 1 | |
| 9 | 41211-000303 | Electrical fixing board | 1 | |
| 10 | 11304-100117 | Terminal | 1 | |
| 11 | 41107-000513 | Right plate | 1 | |
| 12 | 41204-000018 | Valve supporter | 1 | |
| 13 | 92007-001041 | 3-way valve | 1 | |
| 14 | 92007-018937 | 2-way valve | 1 | |
| 15 | 41211-000153 | Electrical box cover | 1 | |
| 16 | 92007-019918 | EEV valve assembly | 1 | |
| 17 | / | Back grille | 1 | |
| 18 | 92011-012548 | Condenser | 1 | |
| 19 | 41207-000040 | Top cover | 1 | |
| 20 | 41107-000511 | Left plate | 1 | |
| 21 | 41203-000522 | Outdoor motor supporter | 1 | |
| 22 | 22001-000555 | Outdoor motor | 1 | |
| 23 | 42004-000104 | Propeller fan | 1 | |
| 24 | 41206-000294 | Front plate | 1 | |
| 25 | 42011-000594 | Fan guard | 1 | |
| 26 | A2005-000536 | Base carton | 1 | Not shown in the Explosion view |
| 27 | A1202-000130 | Base foam | 1 | |
| 28 | 41213-000032 | Cover foam | 1 | |
| 29 | 10104-100227 | Sensor | 1 | |
| 30 | / | Outdoor carton | 1 |
