WYT012GLSI25RH Parts ListUpdated 6 hours ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT012GLSI25RH system. This system is part of the Quantum Hyperformance (WYT-25) series.

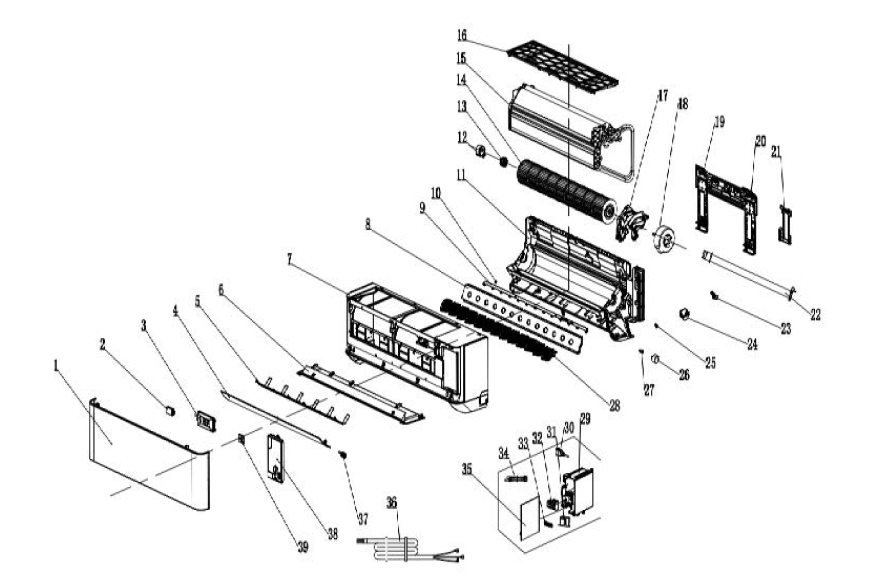

Indoor Unit
Model number: WT012GLSI25HLH
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-011603 | Front panel | 1 | |
| 2 | / | Wi-Fi | 1 | |
| 3 | 31102-000282 | Display PCB | 1 | |
| 4 | 41103-000499 | Vane | 1 | |
| 5 | / | Cord guard | 1 | |
| 6 | 41106-017894 | Front cover plate | 1 | |
| 7 | 41106-004133 | Face frame | 1 | |
| 8 | / | Leaf blade card board | 1 | |
| 9 | 41101-000396 | Soft wind vane connector | 1 | |
| 10 | 42011-000366 | Vane motor connector | 1 | |
| 11 | 41199-004851 | Base | 1 | |
| 12 | 41101-000251 | Bearing mount supporter | 1 | |
| 13 | 42007-000009 | Bearing mount | 1 | |
| 14 | 42004-000190 | Cross fan | 1 | |
| 15 | 92011-005480 | Evaporator | 1 | |
| 16 | 41108-000152 | Air filter | 1 | |
| 17 | 41108-000153 | Indoor motor cover | 1 | |
| 18 | 22001-000409 | Indoor motor | 1 | |
| 19 | 41109-000075 | Installation plate | 1 | |
| 20 | 41109-000069 | Installation plate pole | 2 | |
| 21 | 41101-000354 | In-and-out pipe fixer | 1 | |
| 22 | 42009-000011 | Drainage hose | 1 | |
| 23 | 92012-000185 | Drainage hose plug | 1 | |
| 24 | 29901-000078 | Vane motor assembly | 1 | |
| 25 | 42011-000303 | Vertical vane assembly connector | 1 | |
| 26 | 22001-000313 | Vane motor | 1 | |
| 27 | 41101-000252 | Electric axis | 1 | |
| 28 | 41101-000347 | Soft wind vane 1 | 1 | |
41101-000398 | Soft wind vane 2 | 1 | ||
| 29 | 41105-000427 | Electrical box | 1 | |
| 30 | 22007-001028 | USC connecting line | 1 | |
| 31 | / | Transformer | 1 | |
| 32 | 11304-100063 | Terminal | 1 | |
| 33 | 42001-000103 | Clamp | 1 | |
| 34 | 10104-100014 | Sensor | 1 | |
| 35 | 31101-002317 | Main PCB | 1 | |
| 36 | 22007-000111 | Power supply cord | 1 | |
| 37 | 41101-000349 | Vane latch | 1 | |
| 38 | 41211-000079 | Electrical box cover | 1 | |
| 39 | / | Wi-Fi fixed cover | 1 | |
| 40 | A1102-000006 | Packing foam 1 | 1 | Not shown in the Explosion view |
| A1102-000005 | Packing foam 2 | 1 | ||
| 41 | / | Remote control | 1 | |
| 42 | 22007-000246 | Indoor & outdoor connection line | 1 |

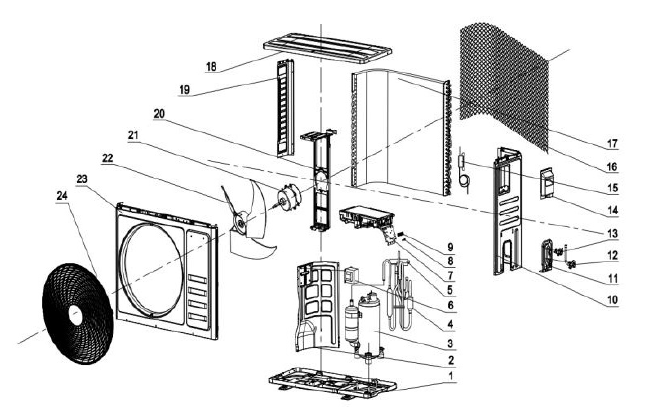

Outdoor Unit
Model number: YN012GLSI25RPH
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000621 | Base | 1 | |
| 2 | 41208-001112 | Partition plate | 1 | |
| 3 | 92014-000929 | Compressor | 1 | |
| 4 | 92007-021885 | 4-way valve assembly | 1 | |
| 5 | 92008-000500 | 4-way valve | 1 | |
| 6 | 31201-004082 | Outdoor PCB assembly | 1 | |
| 7 | 42001-000036 | Cable clamp | 1 | |
| 8 | 11304-100117 | Terminal | 1 | |
| 9 | 41205-000084 | Right plate | 1 | |
| 10 | 41204-000018 | Valve supporter | 1 | |
| 11 | 92007-001041 | 3-way valve | 1 | |
| 12 | 92007-018937 | 2-way valve | 1 | |
| 13 | 41201-000106 | Electronic box cover | 1 | |
| 14 | 92007-020297 | EXV assembly | 1 | |
| 15 | 42011-000168 | Grille | 1 | |
| 16 | 92011-010981 | Condenser | 1 | |
| 17 | 41207-000033 | Top cover | 1 | |
| 18 | 41205-000119 | Left plate | 1 | |
| 19 | 41205-000131 | Support | ||
| 20 | 41203-000052 | Outdoor motor supporter | 1 | |
| 21 | 22001-000551 | Outdoor motor | 1 | |
| 22 | 22001-000555 | Propeller fan | 1 | |
| 23 | 41206-000057 | Front plate | 1 | |
| 24 | 42011-000040 | Fan guard | 1 | |
| 25 | 10104-100136 | Outdoor temp. sensor | 1 | Not shown in the Explosion view |
| 26 | A2005-000532 | Base carton | 1 | |
| 27 | A1201-002331 | Cabinet carton | 1 | |
| 28 | A1202-000124 | Base foaming | 1 | |
| 29 | 41213-000031 | Cover foaming | 1 |
