WYT012GLSI20RL Parts ListUpdated 3 hours ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT012GLSI20RL system. This system is part of the Diamante Pro (WYT-20) series.

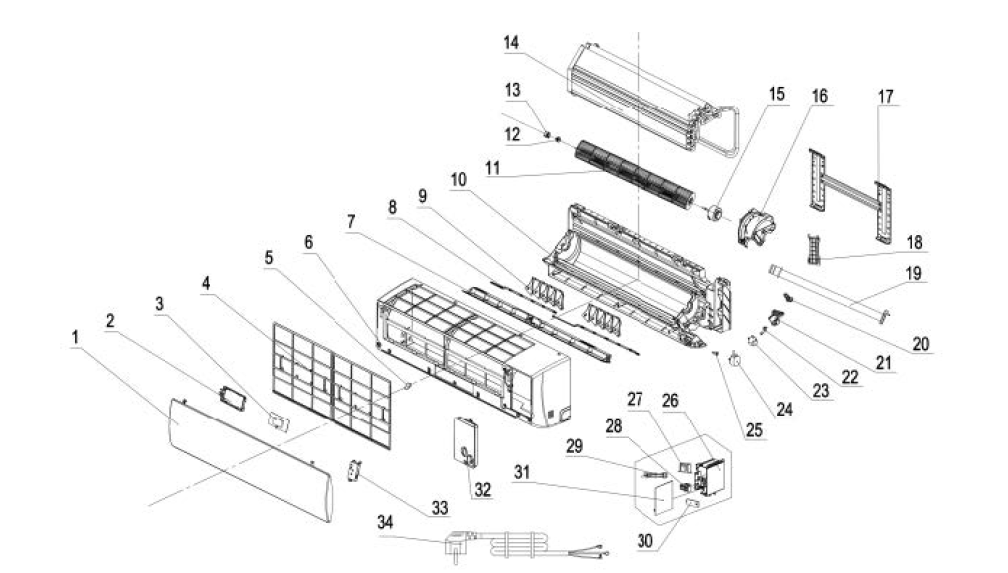

Indoor Unit
Model number: WT012GLSI20HLF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-012022 | Front panel | 1 | |
| 2 | 42003-000001 | Display PCB box | 1 | |
| 3 | 31102-000085 | Display PCB | 1 | |
| 4 | 42008-000039 | Air filter | 2 | |
| 5 | 41108-000066 | Screw cover | 1 | |
| 6 | 41106-002375 | Face frame assembly | 1 | |
| 7 | 41103-000102 | Vane assembly | 1 | |
| 8 | 41101-000127 | Connecting rod 1 | 1 | |
41101-000120 | Connecting rod 2 | 1 | ||
| 9 | 41101-000033 | Vertical vane | 2 | |
| 10 | 41102-000087 | Base assembly | 1 | |
| 11 | 42004-000001 | Cross fan | 1 | |
| 12 | 42007-000009 | Bearing mount | 1 | |
| 13 | 41101-000251 | Bearing sleeve | 1 | |
| 14 | 92011-003149 | Evaporator | 1 | |
| 15 | 22001-000409 | Indoor motor | 1 | |
| 16 | 42003-000051 | Indoor motor cover | 1 | |
| 17 | 41109-000041 | Installation plate | 1 | |
| 18 | 41101-000242 | In-and-out pipe fixer | 1 | |
| 19 | 42009-000011 | Drainage hose | 1 | |
| 20 | 92012-000185 | Drain pipe rubber plug | 1 | |
| 21 | 41108-000118 | Pendulum motor fixed seat | 1 | |
| 22 | 41108-000053 | Crank | 1 | |
| 23 | 22001-000313 | Step motor 1 | 1 | |
| 24 | 22001-000318 | Step motor 2 | 1 | |
| 25 | 41101-000252 | Electric axis | 1 | |
| 26 | 41105-000427 | Electrical box | 1 | |
| 27 | / | Transformer | 1 | |
| 28 | 11304-100063 | Terminal | 1 | |
| 29 | 10104-100014 | Sensor | 1 | |
| 30 | 42001-000103 | Clamp | 1 | |
| 31 | 31101-002312 | Main PCB | 1 | |
| 32 | 41211-000077 | Electrical box cover | 1 | |
| 33 | / | Wi-Fi module | 1 | |
| 34 | 22007-000111 | Power supply cord | 1 | |
| 35 | 41110-000230 | Packing foam 1 | 1 | Not shown in the Explosion view |
| 41110-000274 | Packing foam 2 | 1 | ||
| 36 | / | Remote control | 1 | |
| 37 | 22007-000246 | Indoor and outdoor connection line | 1 |

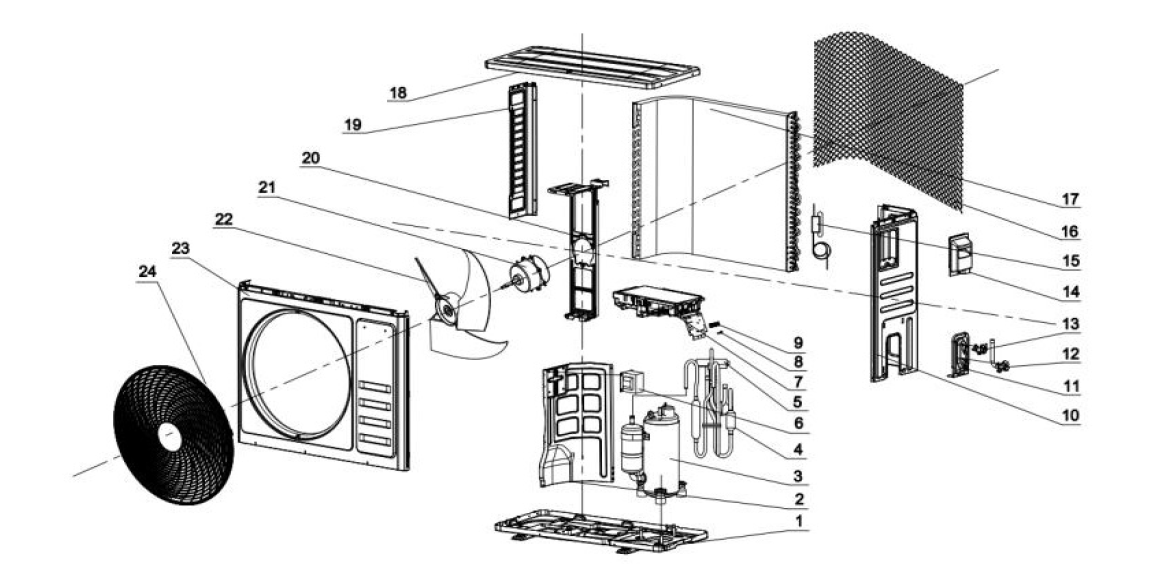

Outdoor Unit
Model number: YN012GLSI20RPF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000610 | Base | 1 | |
| 2 | 41208-001082 | Partition plate | 1 | |
| 3 | 92014-000950 | Compressor | 1 | |
| 4 | 92007-021456 | 4-way valve assembly | 1 | |
| 5 | 92008-000471 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003233 | Outdoor control assembly | 1 | |
| 8 | 42001-000036 | Clamp | 1 | |
| 9 | 11304-100116 | Terminal | 1 | |
| 10 | 41205-000634 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001041 | 3-way valve | 1 | |
| 13 | 92007-007317 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-009795 | Capillary assembly | 1 | |
| 16 | 42011-000184 | Back grille | 1 | |
| 17 | 92011-007726 | Condenser | 1 | |
| 18 | 41207-000029 | Top cover | 1 | |
| 19 | 41205-000133 | Support | 1 | |
| 20 | 41203-000055 | Outdoor motor supporter | 1 | |
| 21 | 22001-000555 | Outdoor motor | 1 | |
| 22 | 42004-000107 | Propeller fan | 1 | |
| 23 | 41206-000052 | Front plate | 1 | |
| 24 | 42011-000038 | Fan guard | 1 | |
| 25 | 92009-000187 | Connect pipe assembly 1 | 1 | Not shown in the Explosion view |
| 92009-000180 | Connect pipe assembly 2 | 1 | ||
| 26 | A2005-000530 | Base carton | 1 | |
| 27 | A1202-000039 | Base foam | 1 | |
| 28 | 41213-000030 | Cover foam | 1 | |
| 29 | 10104-100055 | Sensor | 1 |
