WYT012ALUI17RL Parts ListUpdated 24 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT012ALUI17RL system. This system is part of the Diamante Essenza High-Wall (WYT-17) series.

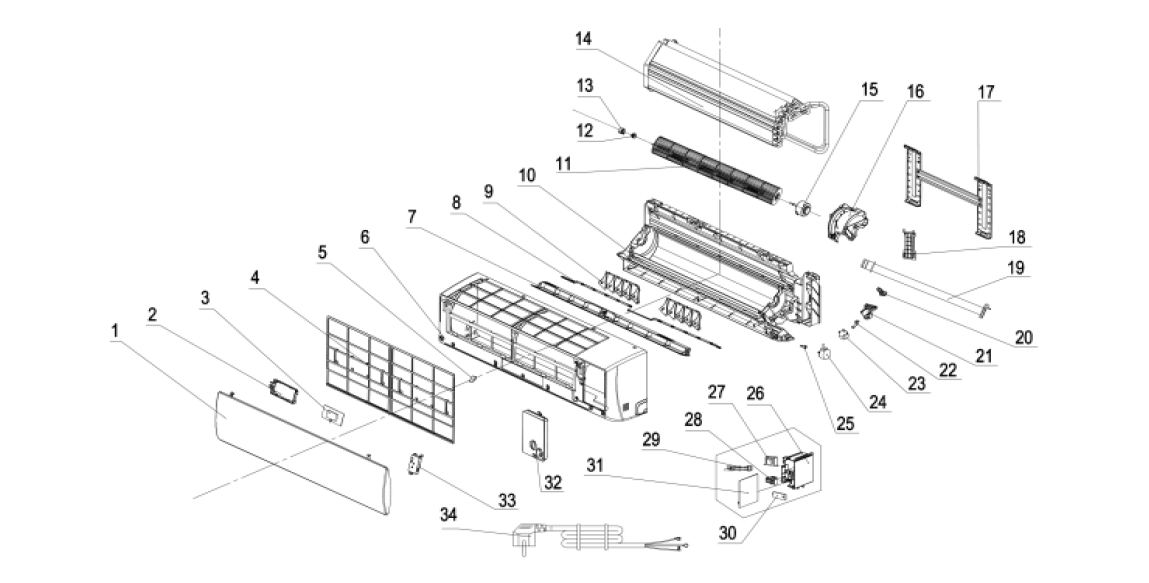

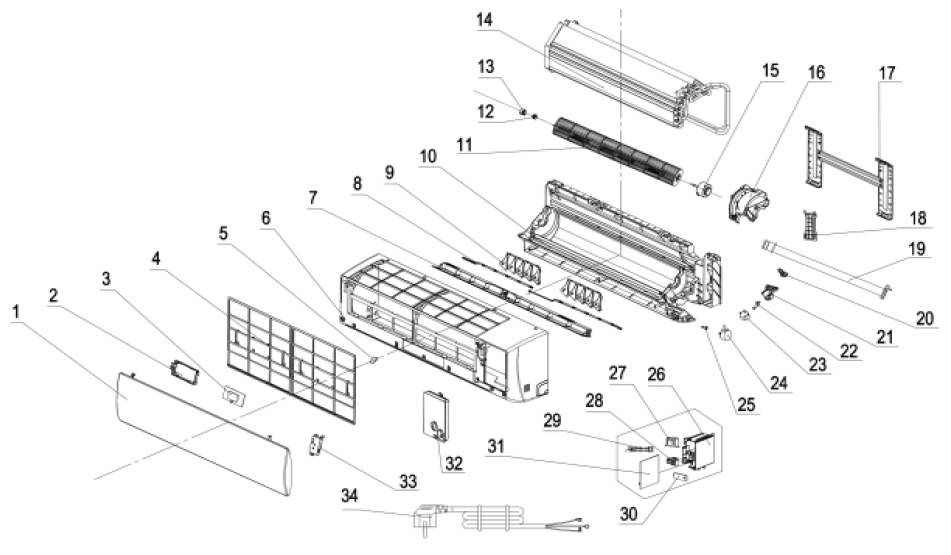

Indoor Unit
Model number: WT012ALUI17HLD
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-012022 | Front Panel | 1 | |
| 2 | 42003-000001 | Display PCB Box | 1 | |
| 3 | 31102-000085 | Display PCB | 1 | |
| 4 | 42008-000037 | Air Filter | 2 | |
| 5 | 41108-000066 | Screw Cover | 1 | |
| 6 | 41106-002371 | Face Frame Assembly | 1 | |
| 7 | 41103-000101 | Vane Assembly | 1 | |
| 8 | 41101-000115 | Connecting Rod | 1 | |
| 41101-000122 | Connecting Rod | 1 | ||
| 9 | 41101-000033 | Louver | 2 | |
| 10 | 41199-002749 | Base Assembly | 1 | |
| 11 | 42004-000039 | Blower Wheel | 1 | |
| 12 | 42007-000009 | Bearing Mount | 1 | |
| 13 | 41101-000251 | Bearing Sleeve | 1 | |
| 14 | 92011-006275 | Evaporator | 1 | |
| 15 | 22001-000238 | Fan Motor | 1 | |
| 16 | 42003-000060 | Fan Motor Cover | 1 | |
| 17 | 41109-000042 | Mounting Plate | 1 | |
| 18 | 41101-000242 | In-and-Out Pipe Fixer | 1 | |
| 19 | 42009-000011 | Drain Hose | 1 | |
| 20 | 92012-000185 | Drain Hose Plug | 1 | |
| 21 | 42001-000004 | Pendulum Motor Fixed Seat | 1 | |
| 22 | 41108-000058 | Crank | 1 | |
| 23 | 22001-000318 | Step Motor | 1 | |
| 24 | 22001-000313 | Step Motor | 1 | |
| 25 | 41101-000252 | Electric Axis | 1 | |
| 26 | 41105-000427 | Electrical Box | 1 | |
| 27 | / | Transformer | 1 | |
| 28 | 11304-100063 | Terminal | 1 | |
| 29 | 10104-100014 | Sensor | 1 | |
| 30 | 42001-000103 | Clamp | 1 | |
| 31 | 31101-002538 | Main PCB | 1 | |
| 32 | 41211-000077 | Electrical Box Cover | 1 | |
| 33 | / | Wi-Fi Module | 1 | |
| 34 | 22007-000111 | Power Supply Cord | 1 | |
| 35 | A2006-000052 | Packing Foam | 1 | Not shown in the Explosion view |
| A2006-000032 | Packing Foam | 1 | ||
| 36 | 22013-004238 | Remote Control | 1 | |
| 37 | 22007-000246 | Indoor and Outdoor Connection Line | 1 |

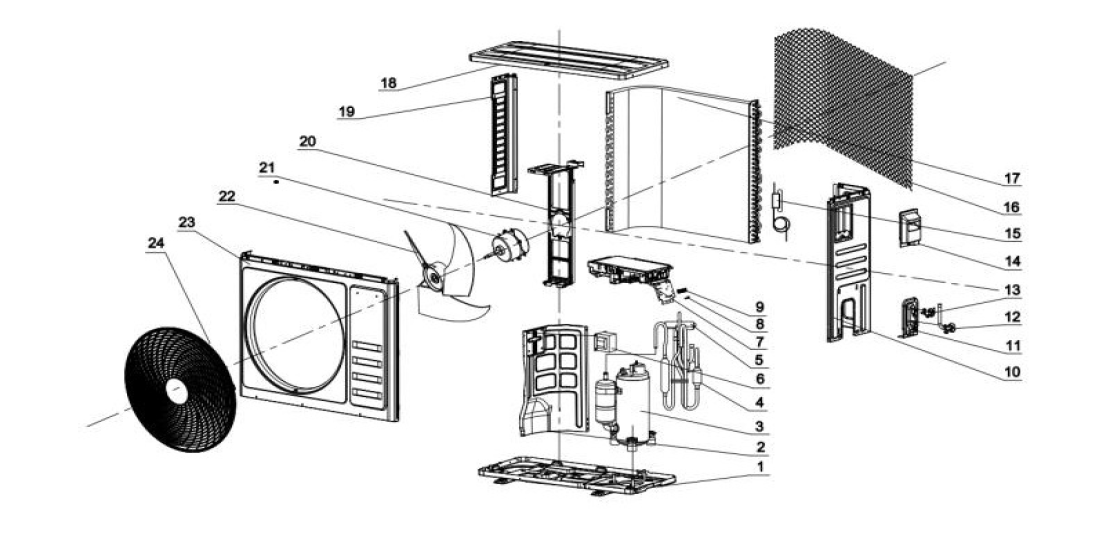

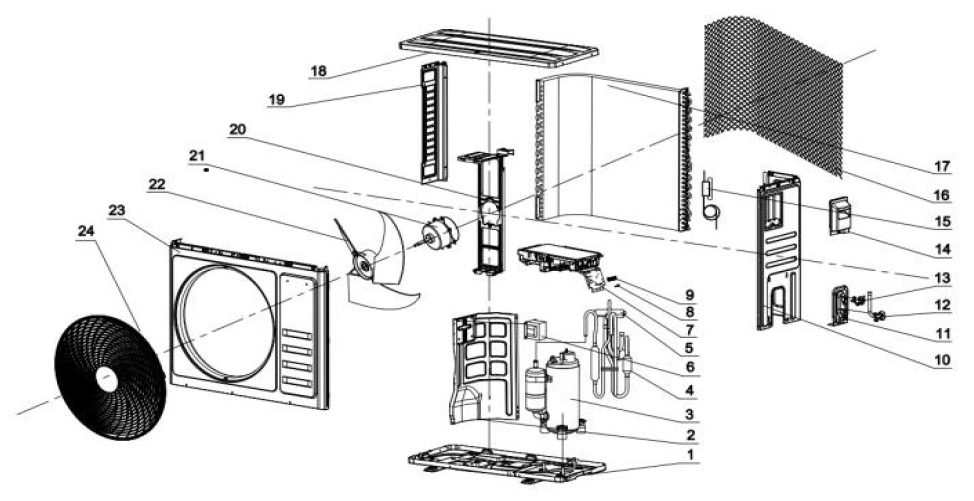

Outdoor Unit
Model number: YN012ALUI17RPD
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000610 | Base | 1 | |
| 2 | 41208-001082 | Partition Plate | 1 | |
| 3 | 92014-000950 | Compressor | 1 | |
| 4 | 92007-019751 | 4-Way Valve Module | 1 | |
| 5 | 92008-000208 | 4-Way Valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003770 | Main PCB | 1 | |
| 8 | 42001-000038 | Clamp | 1 | |
| 9 | 11304-100116 | Terminal | 1 | |
| 10 | 41205-000634 | Right Side Plate | 1 | |
| 11 | 41204-000018 | Valve Supporter | 1 | |
| 12 | 92007-001041 | 3-Way Valve | 1 | |
| 13 | 92007-007317 | 2-Way Valve | 1 | |
| 14 | 41201-000106 | Electrical Box Cover | 1 | |
| 15 | 92007-019735 | Capillary Assembly | 1 | |
| 16 | 42011-000184 | Rear Grille | 1 | |
| 17 | 92011-007726 | Condenser | 1 | |
| 18 | 41207-000029 | Top Cover | 1 | |
| 19 | 41205-000133 | Left Side Plate | 1 | |
| 20 | 41203-000055 | Fan Motor Mount Bracket | 1 | |
| 21 | 22001-000555 | Fan Motor | 1 | |
| 22 | 42004-000107 | Propeller Fan | 1 | |
| 23 | 41206-000052 | Front Panel | 1 | |
| 24 | 42011-000038 | Fan Guard | 1 | |
| 25 | 41204-000051 | Valve Cover | 1 | Not shown in the Explosion view |
| 26 | A2005-000523 | Base Carton | 1 | |
| 27 | A1202-000031 | Base Foam | 1 | |
| 28 | 41213-000023 | Cover Foam | 1 | |
| 29 | 92009-000180 | Connecting Pipe Assembly | 1 | |
| 92009-000187 | Connecting Pipe Assembly | 1 | ||
| 30 | A1201-018464 | Carton | 1 | |
| 31 | 10104-100055 | Sensor | 1 |
