WYT012ALSI24RL Parts ListUpdated an hour ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT012ALSI24RL system. This system is part of the Quantum Ultra High-Wall (WYT-24) series.

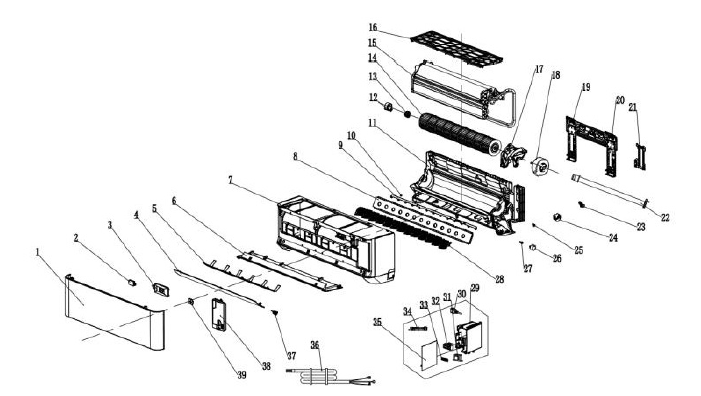

Indoor Unit
Model number: WT012ALSI24HLG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | / | Front panel | 1 | |
| 2 | / | Wi-Fi | 1 | |
| 3 | 31102-000282 | Display PCB | 1 | |
| 4 | 41103-000507 | Vane | 1 | |
| 5 | / | Cord guard | 1 | |
| 6, 7 | 41106-004167 | Face frame assembly | 1 | |
| 8 | / | Leaf blade card board | 1 | |
| 9 | 41101-000400 | Soft wind vane connector | 1 | |
| 10 | 42011-000303 | Vane motor connector | 1 | |
| 11 | 41199-004856 | Base | 1 | |
| 12 | 41101-000251 | Bearing mount supporter | 1 | |
| 13 | 42007-000009 | Bearing mount | 1 | |
| 14 | 42004-000204 | Cross fan | 1 | |
| 15 | 92011-008764 | Evaporator | 1 | |
| 16 | 41108-000154 | Air filter | 1 | |
| 17 | 41108-000153 | Indoor motor cover | 1 | |
| 18 | 22001-000409 | Indoor motor | 1 | |
| 19 | 41109-000075 | Installation plate | 1 | |
| 20 | 41109-000069 | Installation plate pole | 2 | |
| 21 | 41101-000354 | In-and-out pipe fixer | 1 | |
| 22 | 42009-000011 | Drainage hose | 1 | |
| 23 | 92012-000185 | Drainage hose plug | 1 | |
| 24 | 29901-000078 | Vane motor assembly | 1 | |
| 25 | 42011-000366 | Vertical vane assembly connector | 1 | |
| 26 | 22001-000313 | Vane motor | 1 | |
| 27 | 41101-000255 | Electric axis | 1 | |
| 28 | 41101-000402 | Soft wind vane 1 | 1 | |
41101-000347 | Soft wind vane 2 | 1 | ||
| 29 | 41105-000427 | Electrical box | 1 | |
| 30 | 22007-001028 | USC connecting line | 1 | |
| 31 | / | Transformer | 1 | |
| 32 | 11304-100063 | Terminal | 1 | |
| 33 | 42001-000103 | Clamp | 1 | |
| 34 | 10104-100014 | Sensor | 1 | |
| 35 | 31101-002419 | Main PCB | 1 | |
| 36 | 22007-000111 | Power supply cord | 1 | |
| 37 | 41101-000349 | Vane latch | 1 | |
| 38 | 41211-000079 | Electrical box cover | 1 | |
| 39 | / | Wi-Fi fixed cover | 1 | |
| 40 | A1102-000005 | Packing foam 1 | 1 | Not shown in the Explosion view |
| A1102-000009 | Packing foam 2 | 1 | ||
| 41 | / | Remote control | 1 | |
| 42 | 22007-000246 | Indoor & outdoor connection line | 1 |

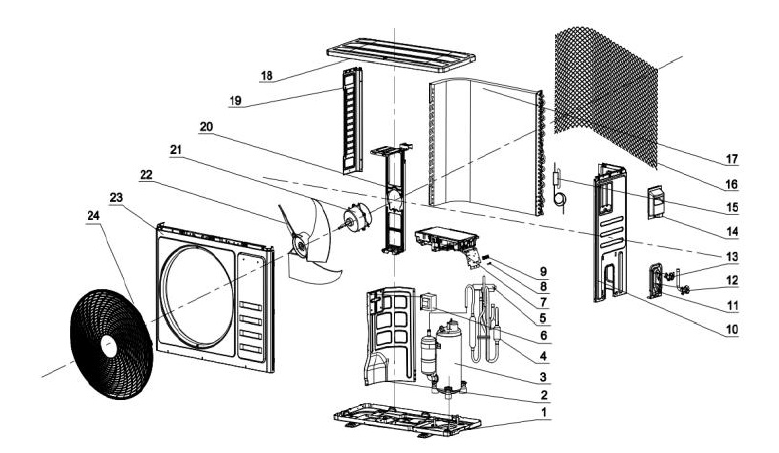

Outdoor Unit
Model number: YN012ALSI24RPG
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000641 | Base | 1 | |
| 2 | 41208-001212 | Partition plate | 1 | |
| 3 | 92014-000760 | Compressor | 1 | |
| 4 | 92007-022126 | 4-way valve assembly | 1 | |
| 5 | 92008-000512 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003235 | Outdoor control assembly | 1 | |
| 8 | 42001-000036 | Clamp | 1 | |
| 9 | 11304-100116 | Terminal | 1 | |
| 10 | 41205-000655 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001041 | 3-way valve | 1 | |
| 13 | 92007-007317 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-020662 | Capillary assembly | 1 | |
| 16 | 42011-000185 | Back grille | 1 | |
| 17 | 92011-000868 | Condenser | 1 | |
| 18 | 41207-000040 | Top cover | 1 | |
| 19 | 41205-000131 | Support | 1 | |
| 20 | 41203-000047 | Outdoor motor supporter | 1 | |
| 21 | 22001-000555 | Outdoor motor | 1 | |
| 22 | 42004-000106 | Propeller fan | 1 | |
| 23 | 41206-000059 | Front plate | 1 | |
| 24 | 42011-000041 | Fan guard | 1 | |
| 25 | A2005-000536 | Base carton | 1 | Not shown in the Explosion view |
| 26 | A1202-000041 | Base foam | 1 | |
| 27 | 41213-000032 | Cover foam | 1 | |
| 28 | 92009-000180 | Connecting pipe assembly 1 | 1 | |
| 92009-000187 | Connecting pipe assembly 2 | 1 |
