WYT009GLSI20RL Parts ListUpdated 3 hours ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT009GLSI20RL system. This system is part of the Diamante Pro (WYT-20) series.

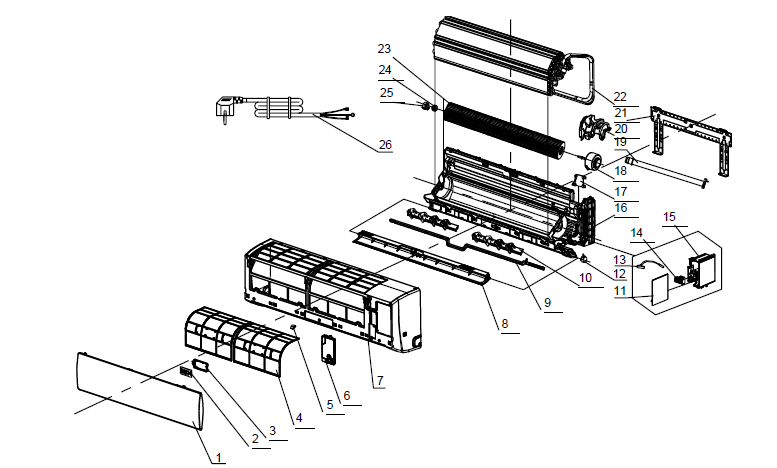

Indoor Unit
Model number: WT009GLSI20HLF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-012022 | Front panel | 1 | |
| 2 | 31102-000085 | Display PCB | 1 | |
| 3 | 42003-000001 | Display PCB box | 1 | |
| 4 | 42008-000039 | Air filter | 2 | |
| 5 | 41108-000066 | Screw cover | 1 | |
| 6 | 41211-000077 | Electrical box cover | 1 | |
| 7 | 41106-002375 | Face frame | 1 | |
| 8 | 41103-000102 | Vane | 1 | |
| 9 | 41101-000127 | Vertical vane connector | 1 | |
| 10 | 41101-000033 | Vertical vane assembly | 2 | |
| 11 | 22001-000313 | Vane motor | 1 | |
| 22001-000318 | Step motor | 1 | ||
| 12 | 31101-002309 | Main PCB | 1 | |
| 13 | 10104-100014 | Indoor sensor assembly | 1 | |
| 14 | 11304-100063 | Terminal | 1 | |
| 15 | 41105-000427 | Electrical box | 1 | |
| 16 | 41102-000087 | Base | 1 | |
| 17 | 41101-000242 | In-and-out-pipe fixer | 1 | |
| 18 | 22001-000267 | Indoor motor | 1 | |
| 19 | 42003-000051 | Indoor motor cover | 1 | |
| 20 | 42009-000011 | Drainage hose | 1 | |
| 21 | 41109-000041 | Installation plate | 1 | |
| 22 | 92011-003149 | Evaporator | 1 | |
| 23 | 42004-000001 | Cross fan | 1 | |
| 24 | 42007-000009 | Bearing mount | 1 | |
| 25 | 41101-000251 | Bearing mount holder | 1 | |
| 26 | 22007-000111 | Power supply cord | 1 | |
| 27 | 22013-004238 | Remote controller | 1 | Not shown in the Explosion view |
| 28 | 32001-000140 | Wi-Fi | 1 | |
| 29 | A1101-001823 | Indoor carton | 1 | |
| 30 | 41110-000230 | Left foaming | 1 | |
| 31 | 41110-000274 | Right foaming | 1 |

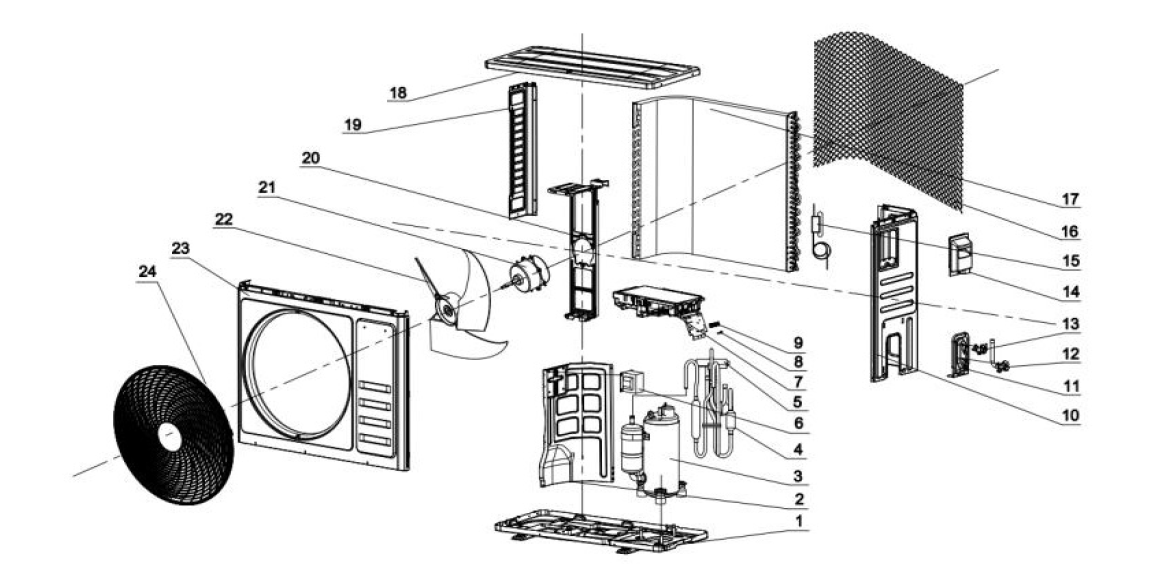

Outdoor Unit
Model number: YN009GLSI20RPF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000610 | Base | 1 | |
| 2 | 41208-001082 | Partition plate | 1 | |
| 3 | 92014-000950 | Compressor | 1 | |
| 4 | 92007-021456 | 4-way valve assembly | 1 | |
| 5 | 92008-000471 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003233 | Outdoor control assembly | 1 | |
| 8 | 42001-000036 | Clamp | 1 | |
| 9 | 11304-100116 | Terminal | 1 | |
| 10 | 41205-000634 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001041 | 3-way valve | 1 | |
| 13 | 92007-007317 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-009795 | Capillary assembly | 1 | |
| 16 | 42011-000184 | Back grille | 1 | |
| 17 | 92011-007726 | Condenser | 1 | |
| 18 | 41207-000029 | Top cover | 1 | |
| 19 | 41205-000133 | Support | 1 | |
| 20 | 41203-000055 | Outdoor motor supporter | 1 | |
| 21 | 22001-000555 | Outdoor motor | 1 | |
| 22 | 42004-000107 | Propeller fan | 1 | |
| 23 | 41206-000052 | Front plate | 1 | |
| 24 | 42011-000038 | Fan guard | 1 | |
| 25 | 92009-000187 | Connect pipe assembly 1 | 1 | Not shown in the Explosion view |
| 92009-000180 | Connect pipe assembly 2 | 1 | ||
| 26 | A2005-000530 | Base carton | 1 | |
| 27 | A1202-000039 | Base foam | 1 | |
| 28 | 41213-000030 | Cover foam | 1 | |
| 29 | 10104-100055 | Sensor | 1 |
