WYT009ALUI20RL Parts ListUpdated 19 days ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT009ALUI20RL system. This system is part of the Diamante Essenza High-Wall (WYT-20U) series.

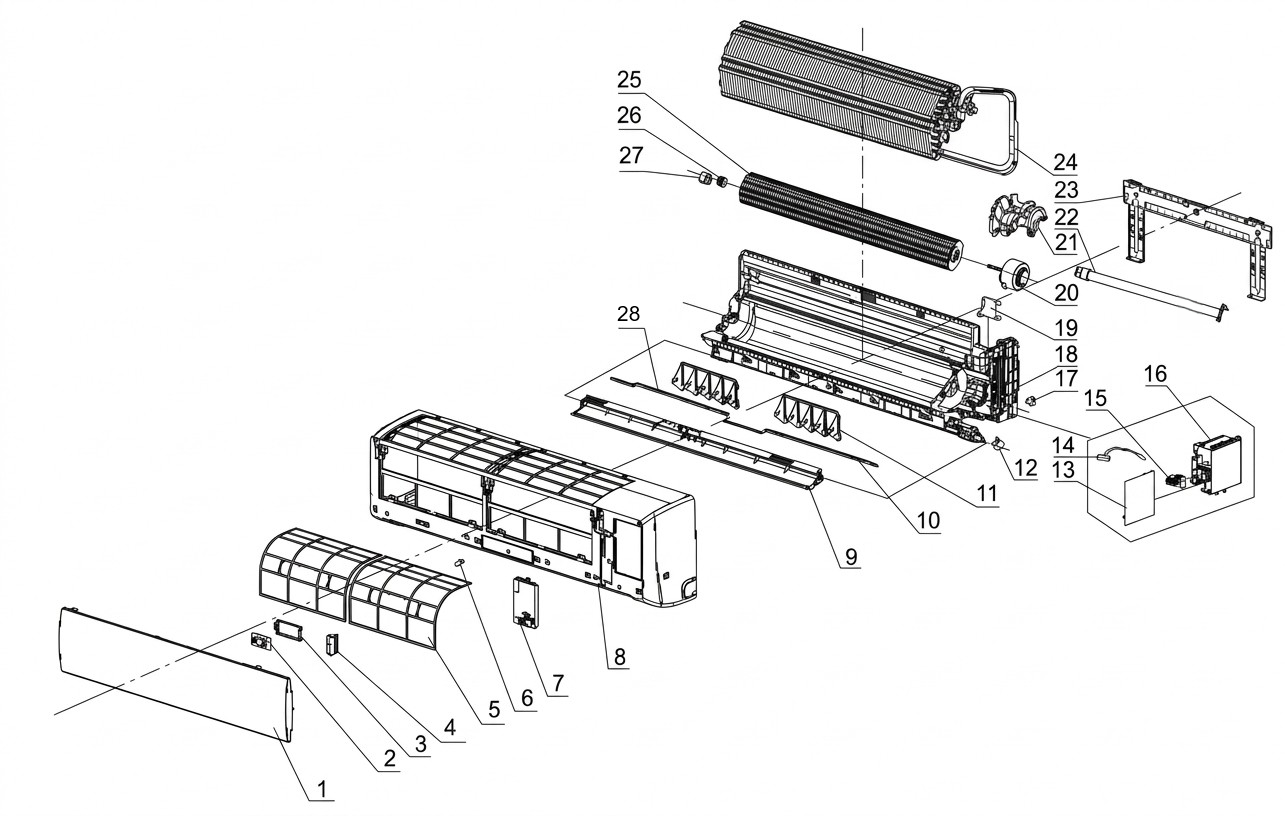

Indoor Unit
Model number: WT009ALUI20HLE
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-001487 | Front Panel | 1 | |
| 2 | 31102-000084 | Display PCB | 1 | |
| 3 | 42003-000001 | Display PCB Box | 1 | |
| 4 | / | Wi-Fi PCB | 1 | |
| 5 | 42008-000047 | Air Filter | 2 | |
| 6 | 41108-000066 | Screw Cover | 1 | |
| 7 | 41211-000077 | Electrical Box Cover | 1 | |
| 8 | 41106-002375 | Face Frame | 1 | |
| 9 | 41103-000102 | Vane | 1 | |
| 10 | 41101-000120 | Right Vertical Vane Supporter | 1 | |
| 11 | 41101-000033 | Vertical Vane Assembly | 2 | |
| 12 | 22001-000313 | Vane Motor | 1 | |
| 13 | G0301-124972 | Main PCB | 1 | |
| 14 | 10104-100014 | Indoor Sensor Assembly | 1 | |
| 15 | 11304-100063 | Terminal | 1 | |
| 16 | 41105-000427 | Electrical Box | 1 | |
| 17 | 22001-000318 | Step Motor | 1 | |
| 18 | 41102-000087 | Base | 1 | |
| 19 | 41101-000242 | In-and-Out Pipe Fixer | 1 | |
| 20 | 22001-000739 | Fan Motor | 1 | |
| 21 | 42003-000051 | Fan Motor Cover | 1 | |
| 22 | 42009-000011 | Drainage Hose | 1 | |
| 23 | 41109-000053 | Mounting Plate | 1 | |
| 24 | K0304-116158 | Evaporator | 1 | |
| 25 | 42004-000001 | Blower Wheel | 1 | |
| 26 | 42007-000009 | Bearing Mount | 1 | |
| 27 | 41101-000251 | Bearing Mount Holder | 1 | |
| 28 | 41101-000127 | Left Vertical Vane Connector | 1 | |
| 29 | G0401-110969 | Remote Control | 1 | Not shown in the diagram |
| 30 | 42001-000014 | Remote Control Holder | 1 | |
| 31 | L0102-146582 | Indoor Carton | 1 | |
| 32 | 41110-000220 | Left Foaming | 1 | |
| 33 | 41110-000263 | Right Foaming | 1 |

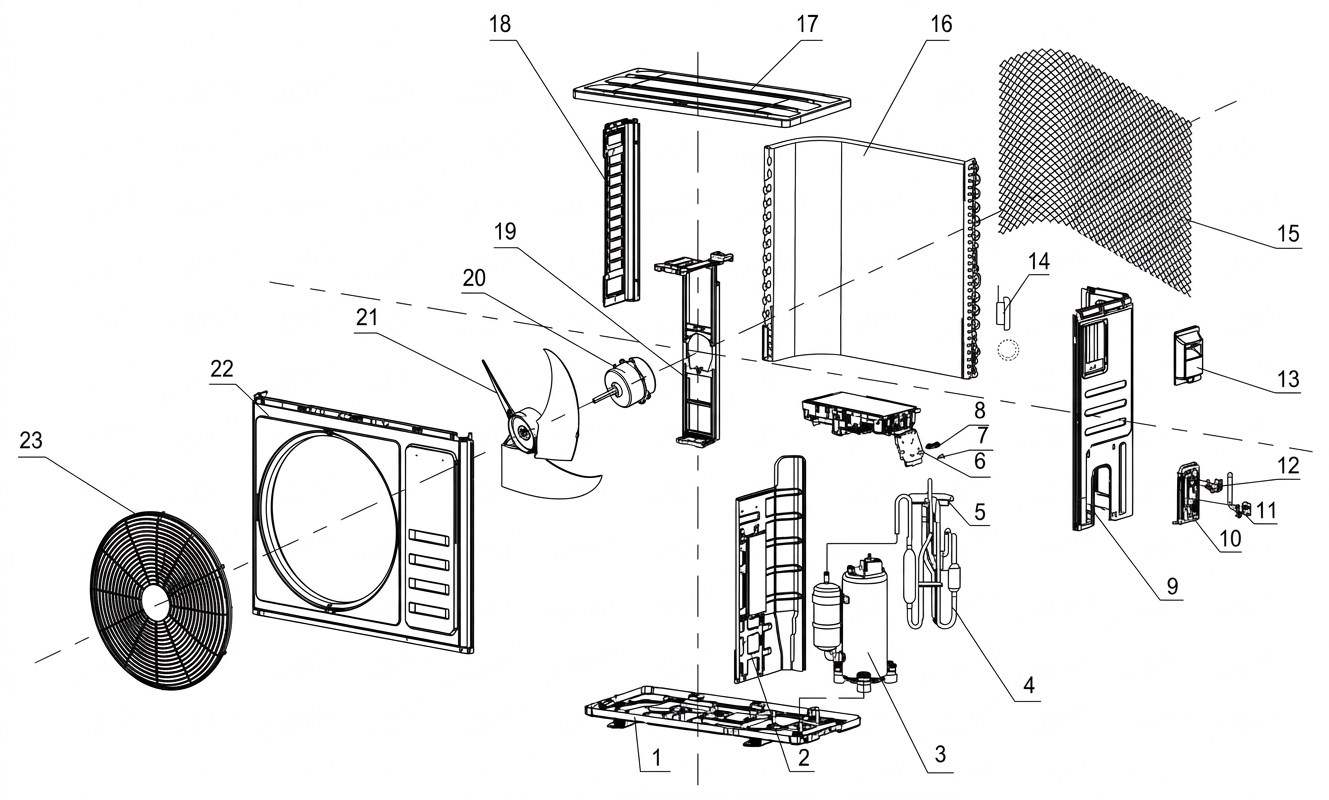

Outdoor Unit
Model number: YN009ALUI20RPE
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000610 | Base | 1 | |
| 2 | 41208-001082 | Partition Plate | 1 | |
| 3 | 92014-001128 | Compressor and Accessories | 1 | |
| 4 | K0206-112629 | 4-Way Valve Assembly | 1 | |
| 5 | 92008-000532 | 4-Way Valve | 1 | |
| 6 | G0301-124897 | PCB Assembly | 1 | |
| 7 | 42001-000036 | Clamp | 1 | |
| 8 | 11304-100116 | Terminal | 1 | |
| 9 | 41205-000635 | Right Side Plate | 1 | |
| 10 | 41204-000018 | Valve Supporter | 1 | |
| 11 | 92008-000138 | 3-Way Valve | 1 | |
| 12 | 92008-000051 | 2-Way Valve | 1 | |
| 13 | 41201-000108 | Electrical Box Cover | 1 | |
| 14 | 92007-009795 | Capillary Assembly | 1 | |
| 15 | 42011-000589 | Rear Grille | 1 | |
| 16 | K0304-116299 | Condenser | 1 | |
| 17 | 41207-000029 | Top Cover | 1 | |
| 18 | 41205-000133 | Left Side Plate | 1 | |
| 19 | 41203-000055 | Fan Motor Mount Bracket | 1 | |
| 20 | 22001-000555 | Fan Motor | 1 | |
| 21 | 42004-000107 | Propeller Fan | 1 | |
| 22 | 41206-000052 | Front Panel | 1 | |
| 23 | 42011-000038 | Fan Guard | 1 | |
| 24 | 10104-100055 | Sensor | 1 | Not shown in the diagram |
| 25 | L0106-110079 | Base Carton | 1 | |
| 26 | L0102-146594 | Cabinet Carton | 1 | |
| 27 | L0501-110053 | Base Foaming | 1 | |
| 28 | L0501-110051 | Cover Foaming | 1 |
