WYT009ALSI20RL Parts ListUpdated 25 minutes ago
Introduction
This article includes parts lists for the indoor and outdoor units of the WYT009ALSI20RL system. This system is part of the Diamante Pro (WYT-20) series.

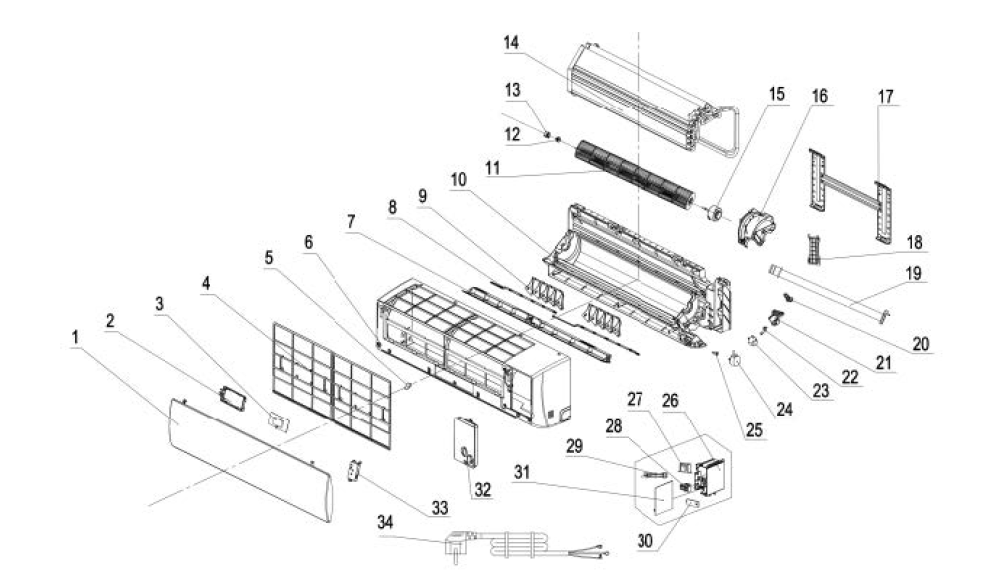

Indoor Unit
Model number: WT009ALSI20HLF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41106-012022 | Front panel | 1 | |
| 2 | 42003-000001 | Display PCB box | 1 | |
| 3 | 31102-000085 | Display PCB | 1 | |
| 4 | 42008-000039 | Air filter | 2 | |
| 5 | 41108-000066 | Screw cover | 1 | |
| 6 | 41106-002375 | Face frame assembly | 1 | |
| 7 | 41103-000102 | Vane assembly | 1 | |
| 8 | 41101-000127 | Connecting rod 1 | 1 | |
41101-000120 | Connecting rod 2 | 1 | ||
| 9 | 41101-000033 | Vertical vane | 2 | |
| 10 | 41102-000087 | Base assembly | 1 | |
| 11 | 42004-000001 | Cross fan | 1 | |
| 12 | 42007-000009 | Bearing mount | 1 | |
| 13 | 41101-000251 | Bearing sleeve | 1 | |
| 14 | 92011-003149 | Evaporator | 1 | |
| 15 | 22001-000307 | Indoor motor | 1 | |
| 16 | 42003-000051 | Indoor motor cover | 1 | |
| 17 | 41109-000041 | Installation plate | 1 | |
| 18 | 41101-000242 | In-and-out pipe fixer | 1 | |
| 19 | 42009-000011 | Drainage hose | 1 | |
| 20 | 92012-000185 | Drain pipe rubber plug | 1 | |
| 21 | 41108-000118 | Pendulum motor fixed seat | 1 | |
| 22 | 41108-000053 | Crank | 1 | |
| 23 | 22001-000313 | Step motor 1 | 1 | |
| 24 | 22001-000318 | Step motor 2 | 1 | |
| 25 | 41101-000252 | Electric axis | 1 | |
| 26 | 41105-000427 | Electrical box | 1 | |
| 27 | / | Transformer | 1 | |
| 28 | 11304-100063 | Terminal | 1 | |
| 29 | 10104-100014 | Sensor | 1 | |
| 30 | 42001-000103 | Clamp | 1 | |
| 31 | 31101-002341 | Main PCB | 1 | |
| 32 | 41211-000077 | Electrical box cover | 1 | |
| 33 | / | Wi-Fi module | 1 | |
| 34 | 22007-000111 | Power supply cord | 1 | |
| 35 | 41110-000230 | Packing foam 1 | 1 | Not shown in the Explosion view |
| 41110-000274 | Packing foam 2 | 1 | ||
| 36 | / | Remote control | 1 | |
| 37 | 22007-000246 | Indoor and outdoor connection line | 1 |

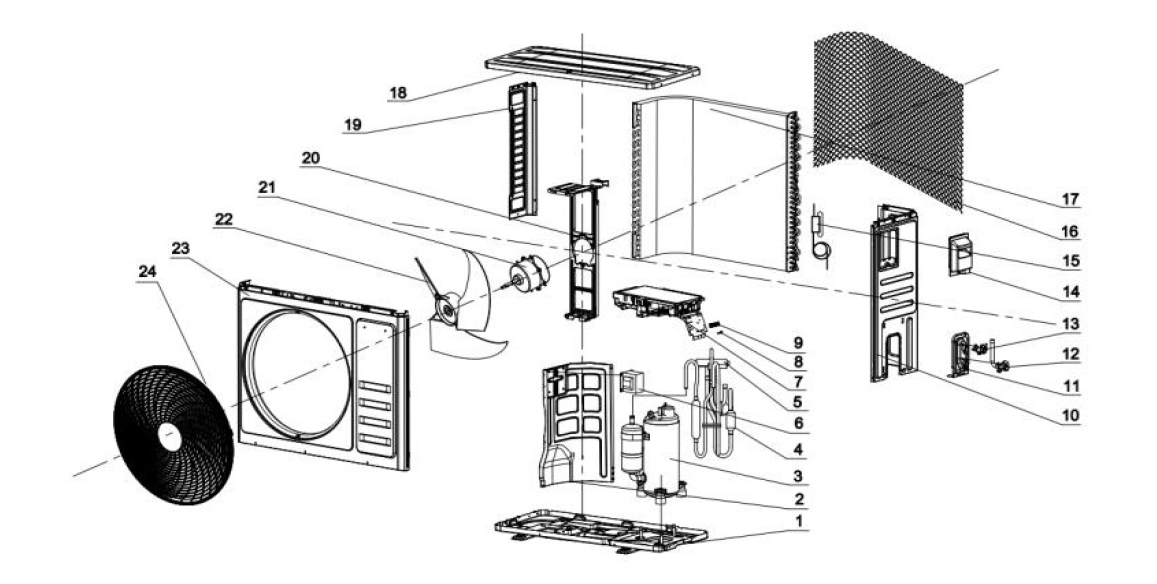

Outdoor Unit
Model number: YN009ALSI20RPF
| No. | Part No. | Part Name | Quantity | Remark |
|---|---|---|---|---|
| 1 | 41202-000610 | Base | 1 | |
| 2 | 41208-001082 | Partition plate | 1 | |
| 3 | 92014-000950 | Compressor | 1 | |
| 4 | 92007-021456 | 4-way valve assembly | 1 | |
| 5 | 92008-000471 | 4-way valve | 1 | |
| 6 | / | Reactor | / | |
| 7 | 31201-003233 | Outdoor control assembly | 1 | |
| 8 | 42001-000036 | Clamp | 1 | |
| 9 | 11304-100116 | Terminal | 1 | |
| 10 | 41205-000634 | Right plate | 1 | |
| 11 | 41204-000018 | Valve supporter | 1 | |
| 12 | 92007-001041 | 3-way valve | 1 | |
| 13 | 92007-007317 | 2-way valve | 1 | |
| 14 | 41201-000106 | Electrical box cover | 1 | |
| 15 | 92007-009795 | Capillary assembly | 1 | |
| 16 | 42011-000184 | Back grille | 1 | |
| 17 | 92011-007726 | Condenser | 1 | |
| 18 | 41207-000029 | Top cover | 1 | |
| 19 | 41205-000133 | Support | 1 | |
| 20 | 41203-000055 | Outdoor motor supporter | 1 | |
| 21 | 22001-000555 | Outdoor motor | 1 | |
| 22 | 42004-000107 | Propeller fan | 1 | |
| 23 | 41206-000052 | Front plate | 1 | |
| 24 | 42011-000038 | Fan guard | 1 | |
| 25 | 92009-000187 | Connect pipe assembly 1 | 1 | Not shown in the Explosion view |
| 92009-000180 | Connect pipe assembly 2 | 1 | ||
| 26 | A2005-000530 | Base carton | 1 | |
| 27 | A1202-000039 | Base foam | 1 | |
| 28 | 41213-000030 | Cover foam | 1 | |
| 29 | 10104-100055 | Sensor | 1 |
