Introduction

Connect your WYT-19 Diamante Pro Series system with the Pioneer Airlink App via your home Wi-Fi to conveniently access programmable functions. Setting schedules and remote operations are available, providing you with more control over your unit regardless of your location.

We recommend using the Pioneer Airlink App. However, the SmartLife-SmartHome App is also an option.

Apple (iOS Apple Store)

Click this link to download the Pioneer Airlink App.

Click this link to download the SmartLife-SmartHome App.

Android (Google Play Store)

Click this link to download the Pioneer Airlink App.

Click this link to download the SmartLife-SmartHome App.

Prerequisites

Recommended parts to prepare:

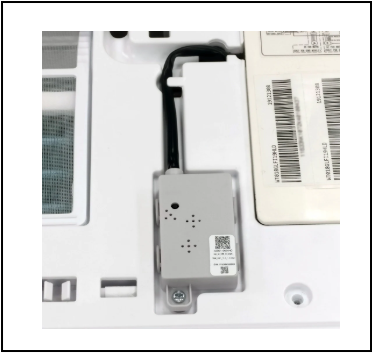

• A Wireless Internet Access and Control Module is required. Click this link to purchase the Wi-Fi module accessory.
• Ensure you're connected to a 2.4 GHz internet Wi-Fi with no active VPNs.

Steps

Follow these steps:

1. Download the app from the app store.
2. Enter the setup phase in the app. The app will ask you to reset the system.
3. Turn Off the unit using the remote control.
4. Turn Off the circuit breaker powering the outside unit for at least 10 seconds.
5. Turn the circuit breaker back On.
6. Turn the unit back On using the remote control.
7. Press the "Display" button on the remote control 6 times consecutively within 6 seconds.
8. The indoor unit will show "AP" or "CF" on the LED display.
9. Hold the small black button until the light is flashing.

Result: The unit is ready to pair. You can repeat these steps for any other units.
