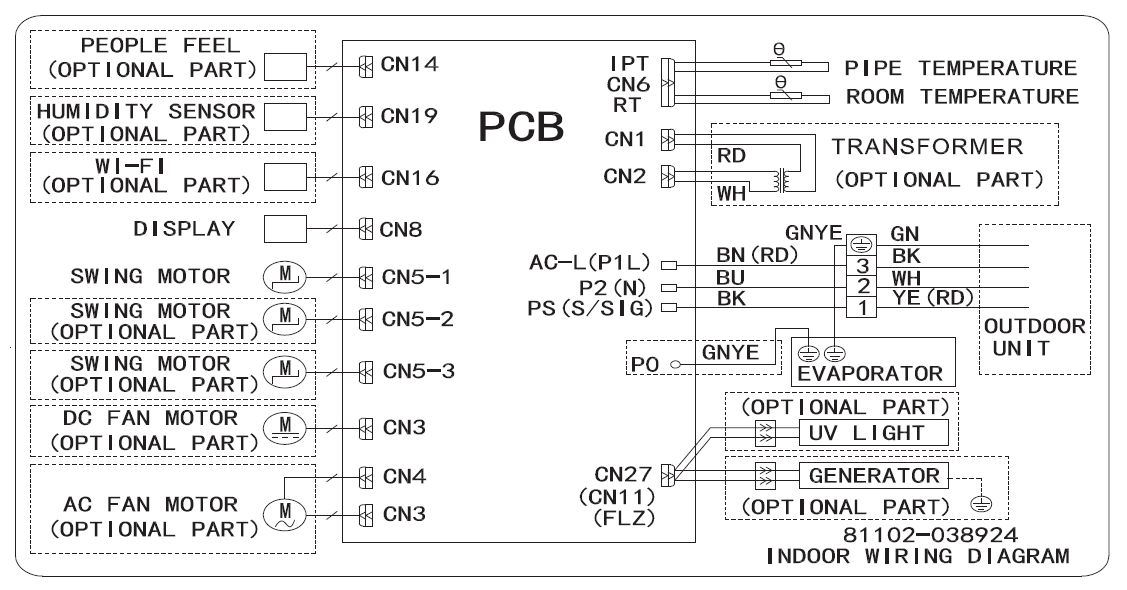

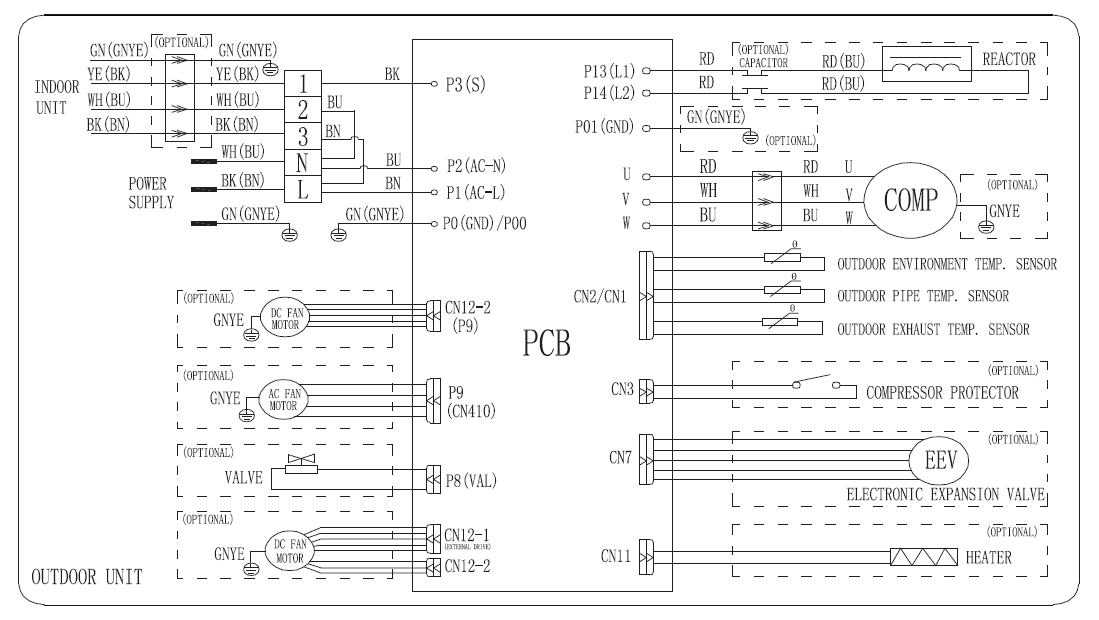

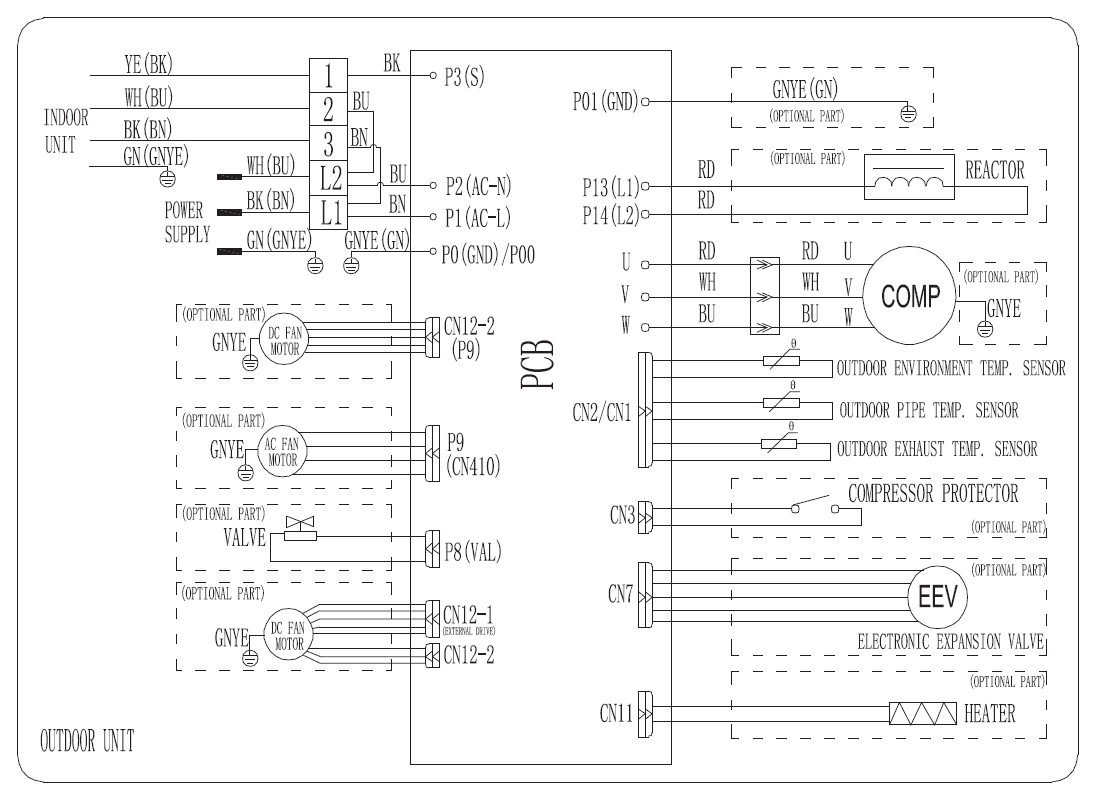

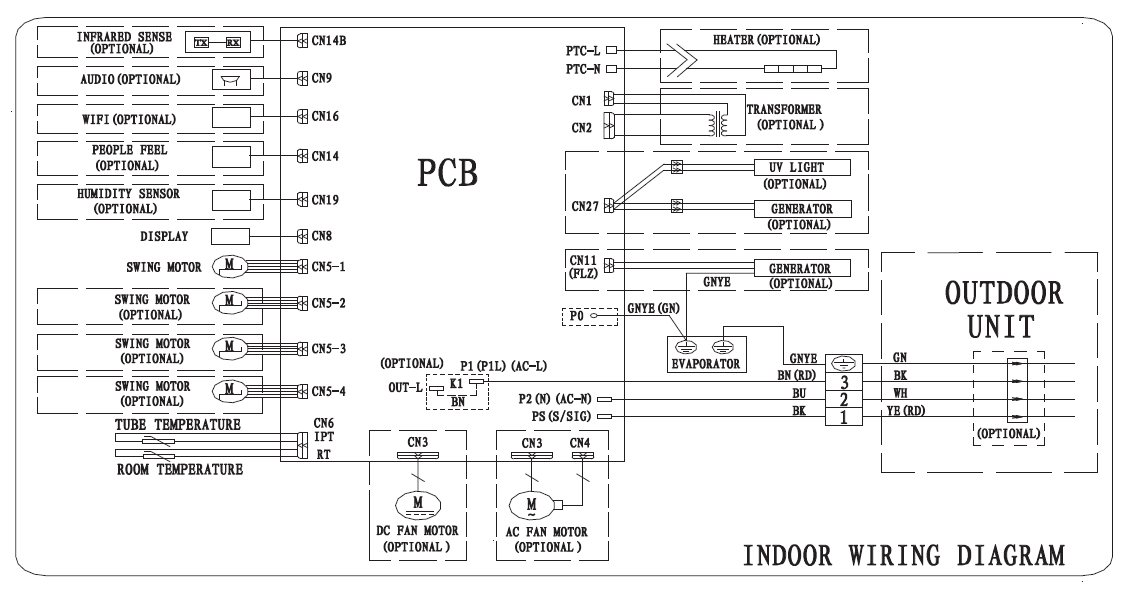

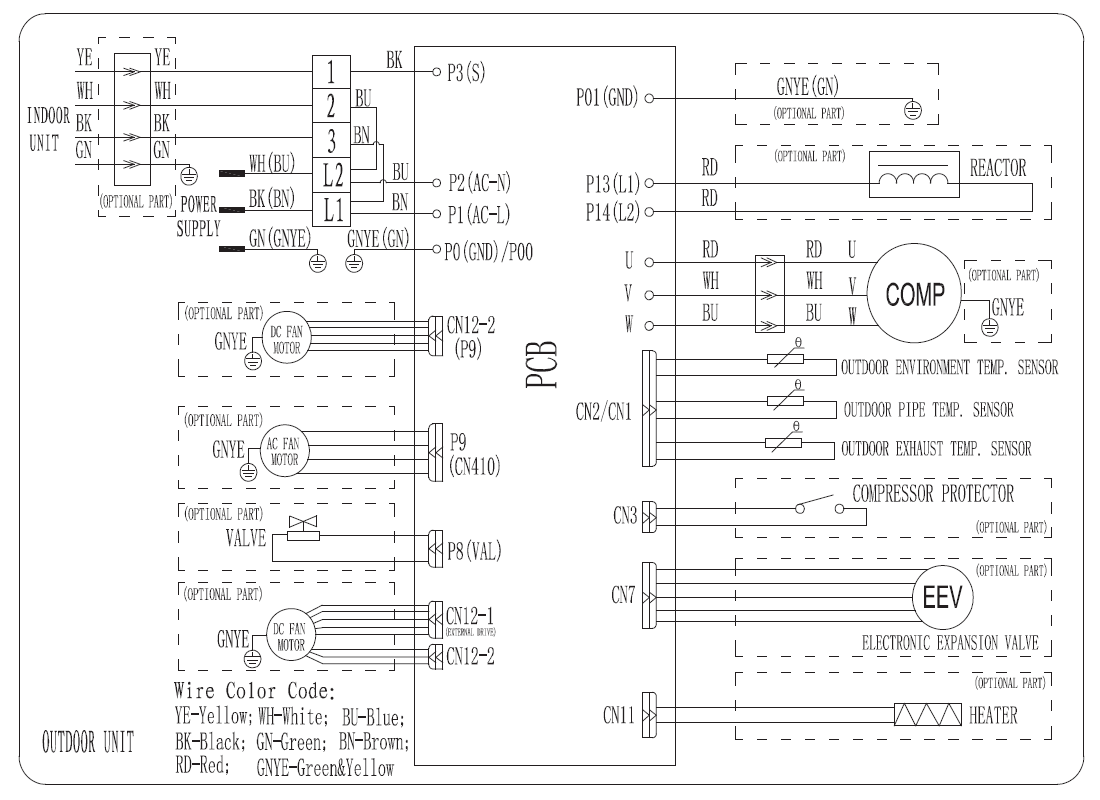

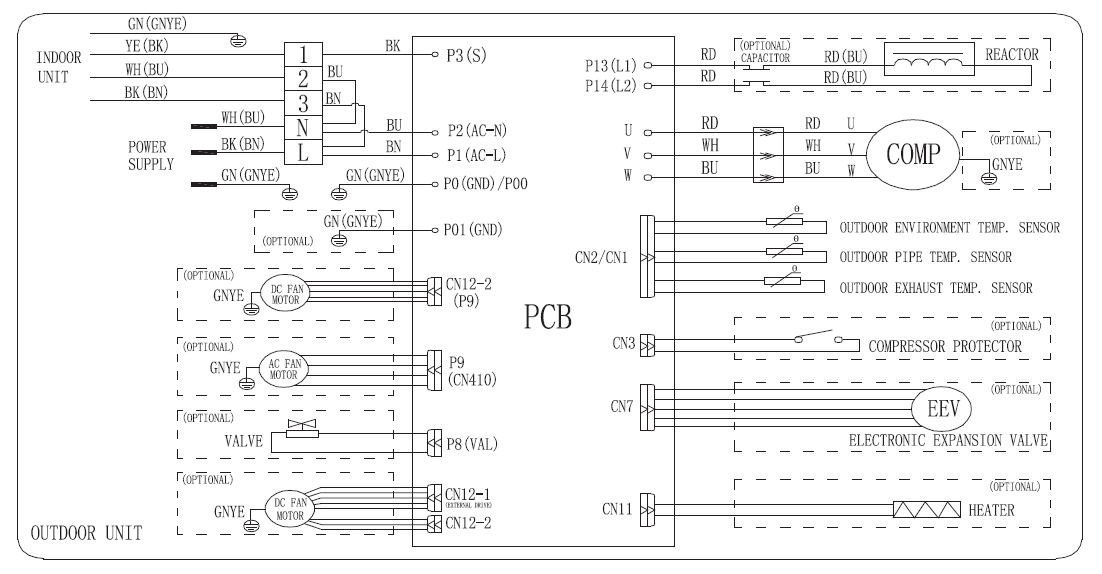

<h2 id="isPasted">Introduction</h2>This article provides control board wiring diagrams for <a href="https://www.pioneerminisplit.com/collections/types?q=WYT-20U" target="_blank" rel="noopener noreferrer">Diamante Essenza High-Wall (WYT-20U) systems</a>. The wiring diagrams are for the indoor and outdoor units.&#xA0;<h2 id="indoor-air-handler-control-board-wiring-diagrams">Indoor Air Handler Control Board Wiring Diagrams</h2>WT009ALUI20HLE, WT009GLUI20HLE, WT012ALUI20HLE, WT012GLUI20HLE, WT018GLUI20HLE, WT024GLUI20HLE<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026092816-297d34ba-6c30-4578-82a8-f36b7eed2c63-wt009alui20hle_wiring_diagram.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered">WT030GLUI20HLE, WT036GLUI20HLE<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026092816-d1fc06f3-5bb1-4550-9098-ab4c1cbaf42f-wt030glui20hle_wiring_diagram.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered"><h2 id="outdoor-condensing-unit-control-board-wiring-diagrams">Outdoor Condensing Unit Control Board Wiring Diagrams</h2>YN009ALUI20RPE<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026092816-70168e47-9fe9-4b24-9d3d-246d976c7941-yn009alui20rpe_wiring_diagram.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered">YN012ALUI20RPE<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026092816-e5728bca-2a2b-4432-81ea-8ab3bf238abf-yn012alui20rpe_wiring_diagram.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered">YN009GLUI20RPE, YN024GLUI20RPE, YN030GLUI20RPE, YN036GLUI20RPE<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026092816-9e759882-3a14-4ade-9654-be853fc3b93c-yn009glui20rpe_wiring_diagram.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered">YN012GLUI20RPE, YN018GLUI20RPE<img src="https://attachments.gorgias.help/Q9r0k7BYaV2vg13y/hc/9JWjXVxG8m6DvMqm/2026092816-54c3eb82-a810-4ce8-a69b-1a1430dbdc4c-yn012glui20rpe_wiring_diagram.png" style="width: 800px;" class="fr-fic fr-dib fr-bordered">

This article provides control board wiring diagrams for Diamante Essenza High-Wall (WYT-20U) systems.

Wiring Diagrams for Diamante Essenza High-Wall (WYT-20U) Systems
