Install the Indoor Unit Mounting Plate for Wall-Mounted UnitsUpdated 2 days ago

Introduction

This article explains how to install the indoor unit mounting plate for wall-mounted systems.

The actual appearance of the mounting plate may differ slightly, but the process is similar.

This article is for the following systems:

• Diamante Essenza (WYT-17)
• Diamante Pro (WYT-20)
• Quantum Ultra (WYT-24)
• Quantum Hyperformance (WYT-25)
• Quantum Fresh (WYT-FA)

Steps

Follow these steps to install the indoor unit mounting plate:

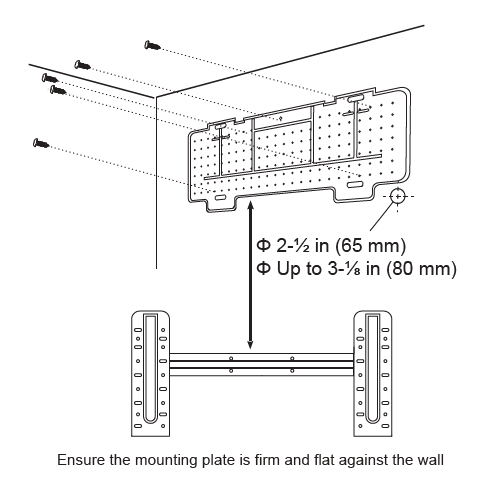

1. Dislodge the mounting plate from the rear of the indoor unit and place the mounting plate against the wall where the system will hang. Use a level to ensure that the plate is horizontally and vertically level.
2. Drill 1-¼ inch (32 mm) deep holes for each screw to enter. The locations are flexible but should be spaced well.
3. Insert the plastic anchors into each other the holes.
4. Fix the mounting plate to the wall by using the included tapping screws. Check that it is secured.
