Set Up the Outdoor Unit Condensate Water Drainage for Wall-Mounted SystemsUpdated a day ago

Introduction

This article explains how to set up the outdoor unit condensate water drainage for wall-mounted systems.

Use the drain joint and drain pipe included with the system to direct away the condensate water and ice formed in the outdoor unit during Heating mode.

This is optional and only needed if the default configuration of the water drainage out from the port on the bottom side is not desired.

This article is for the following systems:

• Diamante Essenza (WYT-17)
• Diamante Pro (WYT-20)
• Quantum Ultra (WYT-24)
• Quantum Hyperformance (WYT-25)
• Quantum Fresh (WYT-FA)

Steps

Follow these steps to set up the outdoor unit condensate water drainage:

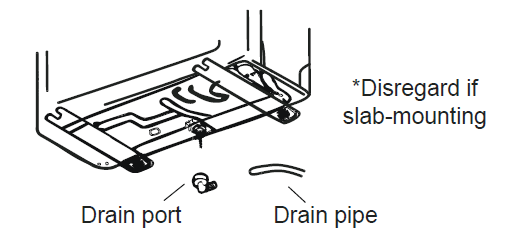

1. Fasten the drain port in the 1 inch (25 mm) port located in the part of the unit shown in the illustration.
2. Connect the drain port and drain pipe.
3. Ensure the condensate will drain to a suitable place.
